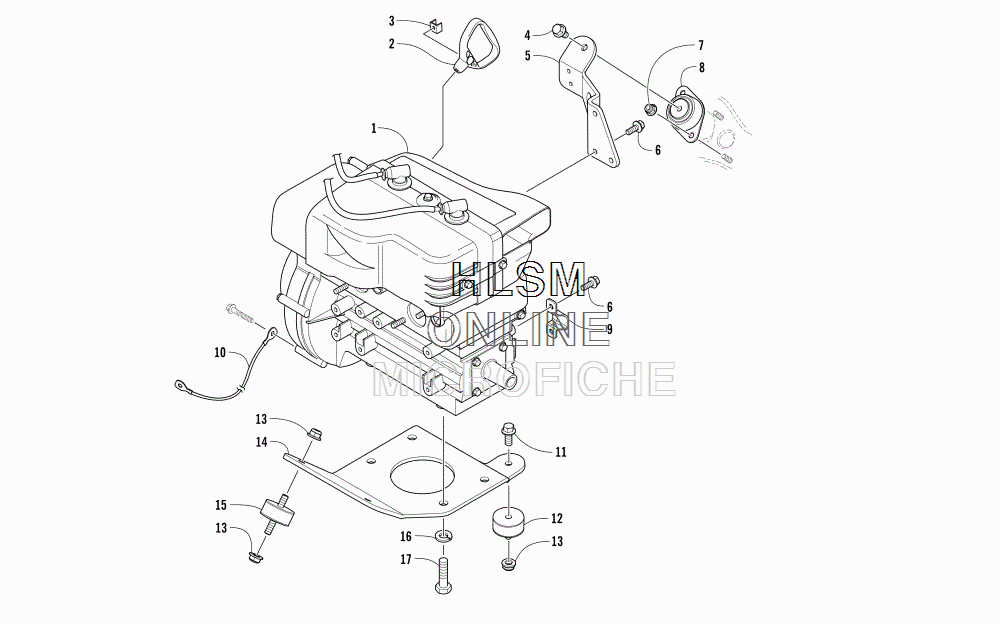

ENGINE AND RELATED PARTS для Arctic Cat BEARCAT 2000 LT BLUE - 2018 года выпуска`
-
№АртикулНазвание
-
10762-584 LONG BLOCK, ENGINE - 570LONG BLOCK, ENGINE - 570
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
48409-020 SCREW, CAPSCREW, CAP
-
50608-571 MOUNT, ENGINE - REARMOUNT, ENGINE - REAR
-
61623-553 SCREW, CAP - HFH 5/16-18 X .750 W/2353SCREW, CAP - HFH 5/16-18 X .750 W/2353
-
78427-802 NUTNUT
-
80608-496 MOUNT, ENGINEMOUNT, ENGINE
-
90708-543 PLATE, SNUBBERPLATE, SNUBBER
-
100686-126 WIRE, GROUNDWIRE, GROUND
-
112623-075 SCREW, CAPSCREW, CAP
-
120608-251 MOUNT, ENGINE - SINGLEMOUNT, ENGINE - SINGLE
-
138047-486 NUT, LOCKNUT, LOCK
-
140608-562 PLATE, ENGINE MOUNTPLATE, ENGINE MOUNT
-
150608-250 MOUNT, ENGINE - DOUBLEMOUNT, ENGINE - DOUBLE
-
168051-332 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
178002-402 SCREW, CAPSCREW, CAP
