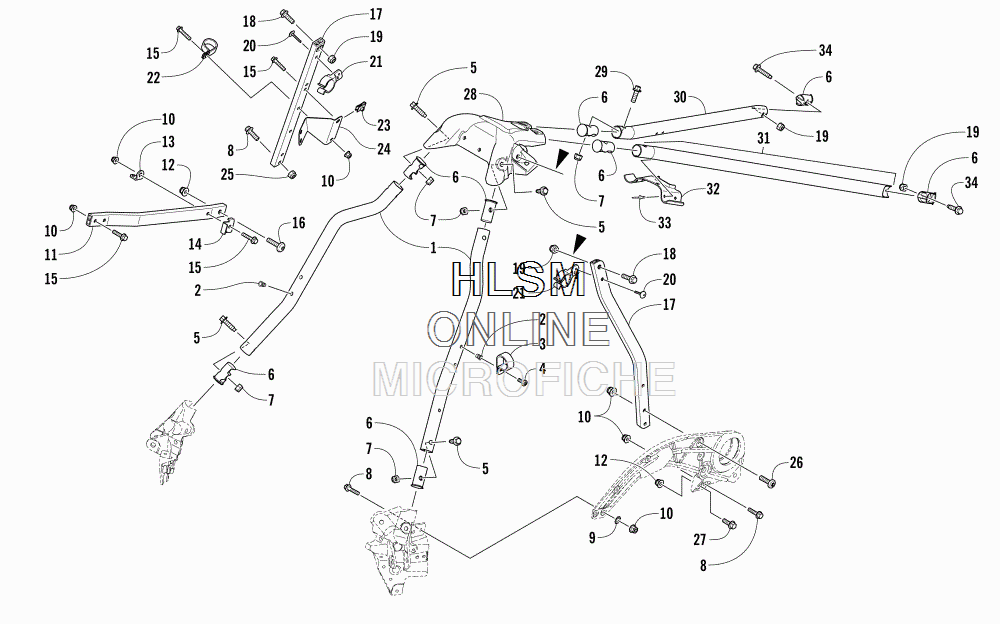

STEERING SUPPORT ASSEMBLY для Arctic Cat ZR 3000 LXR 129 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
12707-545 SPAR, FRONT (INC. 2)SPAR, FRONT (INC. 2)
-
21623-797 ...INSERT...INSERT
-
30423-403 CLAMP, ROUTINGCLAMP, ROUTING
-
48470-516 SCREW, MACHINESCREW, MACHINE
-
51623-836 SCREW, CAPSCREW, CAP
-
61607-680 INSERTINSERT
-
78422-002 NUT, LOCKNUT, LOCK
-
88408-625 SCREW, CAPSCREW, CAP
-
98053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
108427-602 NUT, LOCKNUT, LOCK
-
110607-248 SUPPORT, CHASSIS - RIGHTSUPPORT, CHASSIS - RIGHT
-
128427-802 NUTNUT
-
132612-707 TAB, SPRINGTAB, SPRING
-
142612-783 BRACKET, SUPPORT - RESONATORBRACKET, SUPPORT - RESONATOR
-
158476-630 SCREW, MACHINESCREW, MACHINE
-
168476-835 SCREW, CAPSCREW, CAP
-
170607-252 SUPPORT, SIDE - REAR - RIGHTSUPPORT, SIDE - REAR - RIGHT
-
171607-133 SUPPORT, SIDE - REAR - LEFTSUPPORT, SIDE - REAR - LEFT
-
188408-820 SCREW, CAPSCREW, CAP
-
198422-802 NUT, LOCKNUT, LOCK
-
201623-031 SELF-TAPPINGSELF-TAPPING
-
210609-937 CLIP, ROUTINGCLIP, ROUTING
-
220423-403 CLAMP, ROUTINGCLAMP, ROUTING
-
230423-577 CLIP, U-NUTCLIP, U-NUT
-
240613-199 BRACKET, MOUNTING - FILLER NECKBRACKET, MOUNTING - FILLER NECK
-
258427-602 NUT, LOCKNUT, LOCK
-
268476-630 SCREW, MACHINESCREW, MACHINE
-
278408-825 SCREW, CAPSCREW, CAP
-
282707-532 SUPPORT, STEERINGSUPPORT, STEERING
-
298408-030 SCREW, CAPSCREW, CAP
-
302707-504 SPAR, REAR - RIGHTSPAR, REAR - RIGHT
-
316706-033 BRACKET, HOLD-DOWN - SEATBASE ASSY (INC. 32-33)BRACKET, HOLD-DOWN - SEATBASE ASSY (INC. 32-33)
-
326606-663 ...BRACKET, HOLD-DOWN - SEATBASE...BRACKET, HOLD-DOWN - SEATBASE
-
338060-482 ...RIVET...RIVET
-
341623-982 SCREW, CAPSCREW, CAP
