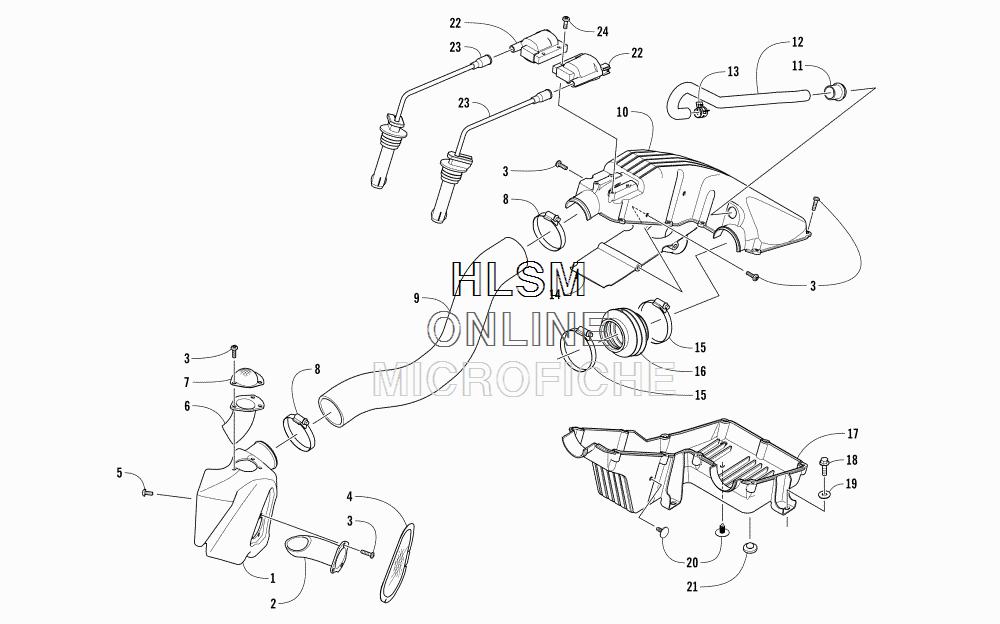

AIR INTAKE ASSEMBLY для Arctic Cat ZR 3000 LXR 129 BLACK - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    2670-555 PLENUM, AIR INTAKE
    PLENUM, AIR INTAKE
  • 2
    2670-556 TUBE, PLENUM - INTAKE
    TUBE, PLENUM - INTAKE
  • 3
    1623-251 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 4
    2670-457 SCREEN, AIR INTAKE
    SCREEN, AIR INTAKE
  • 5
    8476-512 SCREW, MACHINE
    SCREW, MACHINE
  • 6
    2670-557 TUBE, PLENUM - INTAKE
    TUBE, PLENUM - INTAKE
  • 7
    2670-554 SCREEN, AIR INTAKE
    SCREEN, AIR INTAKE
  • 8
    0423-066 CLAMP
    CLAMP
  • 9
    2670-553 HOSE, AIR INTAKE
    HOSE, AIR INTAKE
  • 10
    2670-387 SILENCER, AIR - UPPER
    SILENCER, AIR - UPPER
  • 11
    2670-433 FITTING
    FITTING
  • 12
    0610-983 HOSE, BREATHER
    HOSE, BREATHER
  • 13
    1623-282 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    2670-494 BAFFLE, AIR INTAKE - UPPER
    BAFFLE, AIR INTAKE - UPPER
  • 15
    0423-019 CLAMP
    CLAMP
  • 16
    2670-585 BOOT, INTAKE - THROTTLE BODY
    BOOT, INTAKE - THROTTLE BODY
  • 17
    2670-388 SILENCER, AIR - LOWER
    SILENCER, AIR - LOWER
  • 18
    8408-516 SCREW, CAP
    SCREW, CAP
  • 19
    8450-079 WASHER
    WASHER
  • 20
    0623-544 PLUG
    PLUG
  • 21
    0406-877 BUMPER
    BUMPER
  • 22
    0730-251 COIL, IGNITION - W/CAP - ASSEMBLY (INC. 23)
    COIL, IGNITION - W/CAP - ASSEMBLY (INC. 23)
  • 23
    0630-335 ...WIRE, SPARK PLUG - W/CAP
    ...WIRE, SPARK PLUG - W/CAP
  • 24
    8468-425 SCREW, MACHINE
    SCREW, MACHINE
