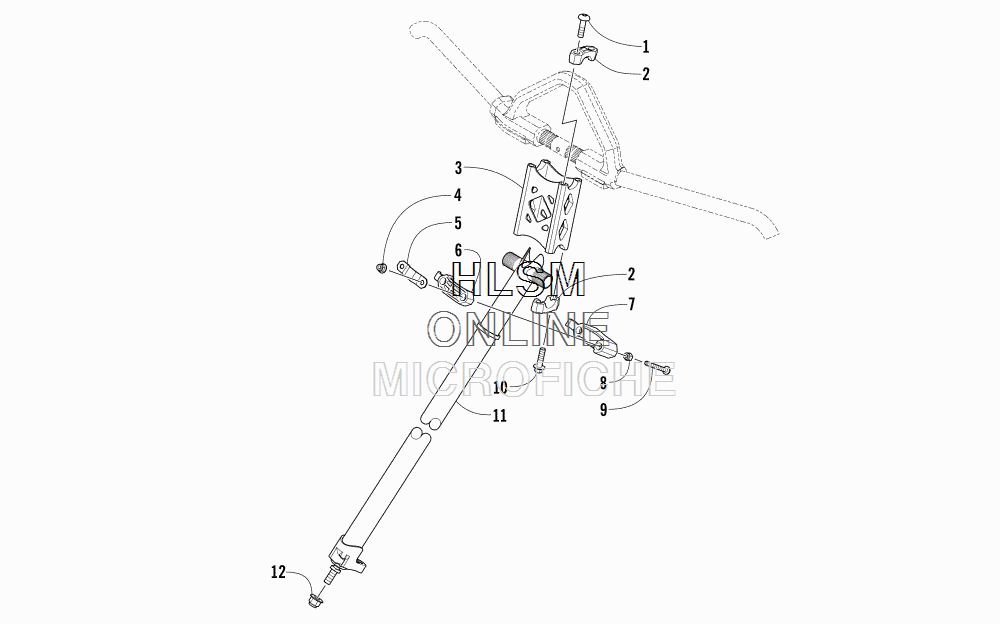

STEERING POST ASSEMBLY для Arctic Cat BEARCAT 7000 XT ORANGE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    8476-830 SCREW, CAP
    SCREW, CAP
  • 2
    1605-118 CAP, RISER BLOCK
    CAP, RISER BLOCK
  • 3
    1605-035 BLOCK, RISER - 4.5 IN.
    BLOCK, RISER - 4.5 IN.
  • 4
    8427-602 NUT, LOCK
    NUT, LOCK
  • 5
    0605-998 PLATE, RETAINING
    PLATE, RETAINING
  • 6
    1605-127 BLOCK, MOUNTING - STEERING POST - UPPER
    BLOCK, MOUNTING - STEERING POST - UPPER
  • 7
    1605-128 BLOCK, MOUNTING - STEERING POST - LOWER
    BLOCK, MOUNTING - STEERING POST - LOWER
  • 8
    8422-602 NUT
    NUT
  • 9
    2623-043 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    8408-830 SCREW, CAP
    SCREW, CAP
  • 11
    1705-458 POST, STEERING
    POST, STEERING
  • 12
    2623-202 NUT, LOCK W/WASHER
    NUT, LOCK W/WASHER
