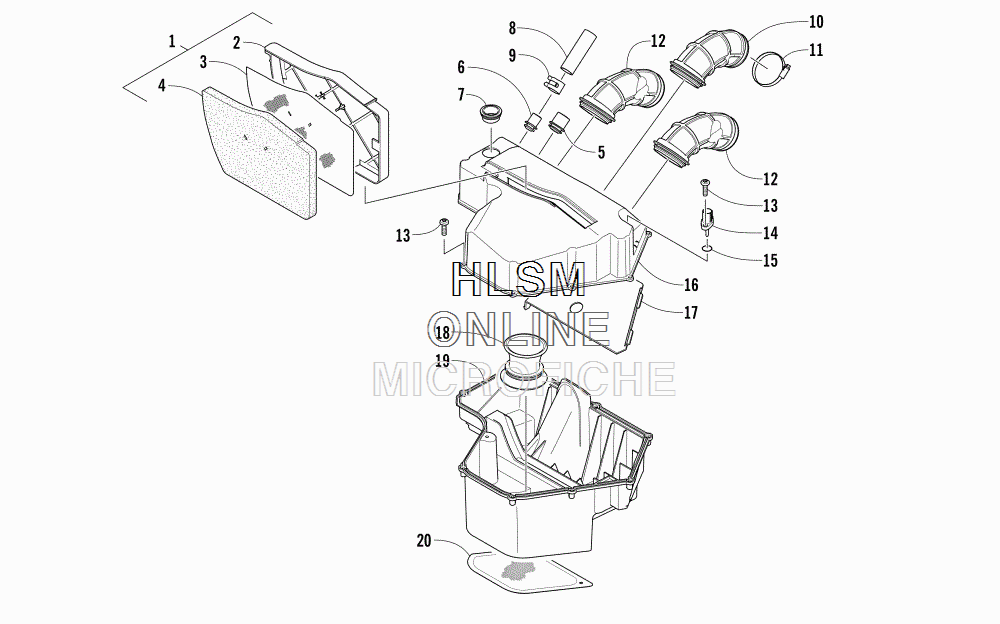

AIR INTAKE ASSEMBLY для Arctic Cat BEARCAT 7000 XT ORANGE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1770-086 AIR FILTER - ASSEMBLY (INC. 2-4)
    AIR FILTER - ASSEMBLY (INC. 2-4)
  • 2
    2670-426 ...RETAINER
    ...RETAINER
  • 3
    2670-425 ...SCREEN, AIR FILTER
    ...SCREEN, AIR FILTER
  • 4
    0617-728 ...FOAM
    ...FOAM
  • 5
    2670-433 FITTING
    FITTING
  • 6
    2670-432 FITTING
    FITTING
  • 7
    2670-469 GROMMET, AIRBOX - 24 MM
    GROMMET, AIRBOX - 24 MM
  • 8
    0410-143 HOSE - 25 FT
    HOSE - 25 FT
  • 9
    1623-966 CLAMP, HOSE
    CLAMP, HOSE
  • 10
    2670-279 BOOT, INTAKE
    BOOT, INTAKE
  • 11
    0423-066 CLAMP
    CLAMP
  • 12
    2670-402 BOOT, INTAKE
    BOOT, INTAKE
  • 13
    1623-251 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    0430-055 SENSOR, AIR TEMPERATURE (INC. 15)
    SENSOR, AIR TEMPERATURE (INC. 15)
  • 15
    5507-224 ...O-RING
    ...O-RING
  • 16
    2670-400 AIR SILENCER - UPPER
    AIR SILENCER - UPPER
  • 17
    2670-401 INTAKE BAFFLE
    INTAKE BAFFLE
  • 18
    2670-448 STACK, FLOW
    STACK, FLOW
  • 19
    2670-399 AIR SILENCER - LOWER
    AIR SILENCER - LOWER
  • 20
    2670-449 SCREEN, AIR INTAKE
    SCREEN, AIR INTAKE
