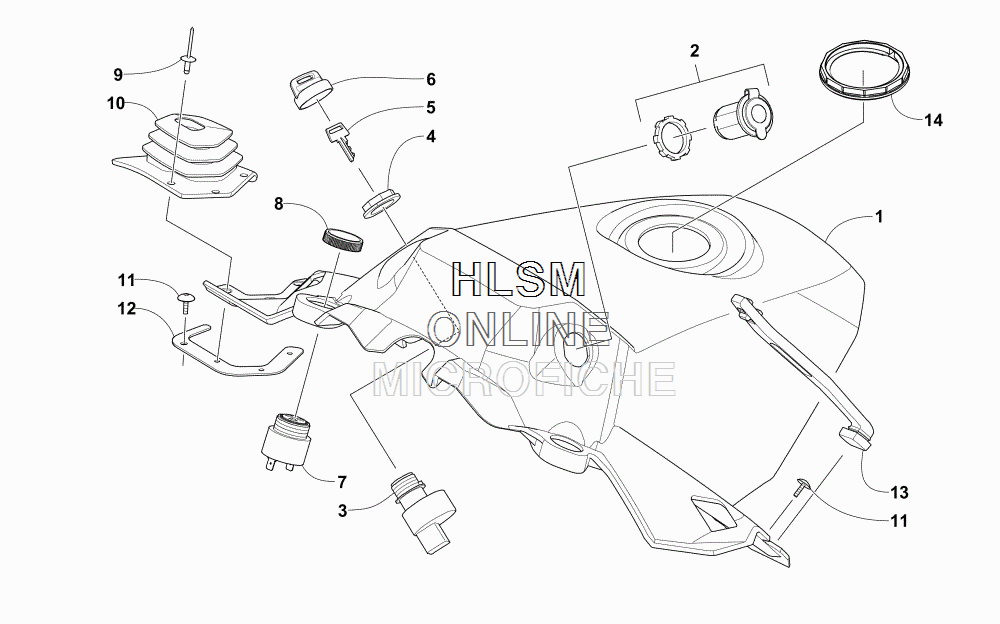

CONSOLE ASSEMBLY для Arctic Cat BEARCAT 7000 XT ORANGE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    6606-740 CONSOLE - BLACK
    CONSOLE - BLACK
  • 2
    0641-897 OUTLET, ACCESSORY (12V)
    OUTLET, ACCESSORY (12V)
  • 3
    0609-911 SWITCH, IGNITION (INC. 4-6)
    SWITCH, IGNITION (INC. 4-6)
  • 4
    0430-050 ...NUT, RETAINING
    ...NUT, RETAINING
  • 5
    0430-042 ...KEY, IGNITION - Y SERIES - (LEFT BANK)
    ...KEY, IGNITION - Y SERIES - (LEFT BANK)
  • 5
    0430-043 ...KEY, IGNITION - Z SERIES - (RIGHT BANK)
    ...KEY, IGNITION - Z SERIES - (RIGHT BANK)
  • 6
    0430-054 ...COVER, KEY
    ...COVER, KEY
  • 7
    0630-243 ALARM, REVERSE (INC. 8)
    ALARM, REVERSE (INC. 8)
  • 8
    0630-017 ...RING, RETAINING
    ...RING, RETAINING
  • 9
    8061-428 RIVET
    RIVET
  • 10
    6606-926 SHIFT BOOT
    SHIFT BOOT
  • 11
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 12
    6606-989 SUPPORT PLATE - SHIFT BOOT
    SUPPORT PLATE - SHIFT BOOT
  • 13
    6606-852 STRAP, HOLD-DOWN - HOOD
    STRAP, HOLD-DOWN - HOOD
  • 14
    6606-390 NUT, RETAINING
    NUT, RETAINING
