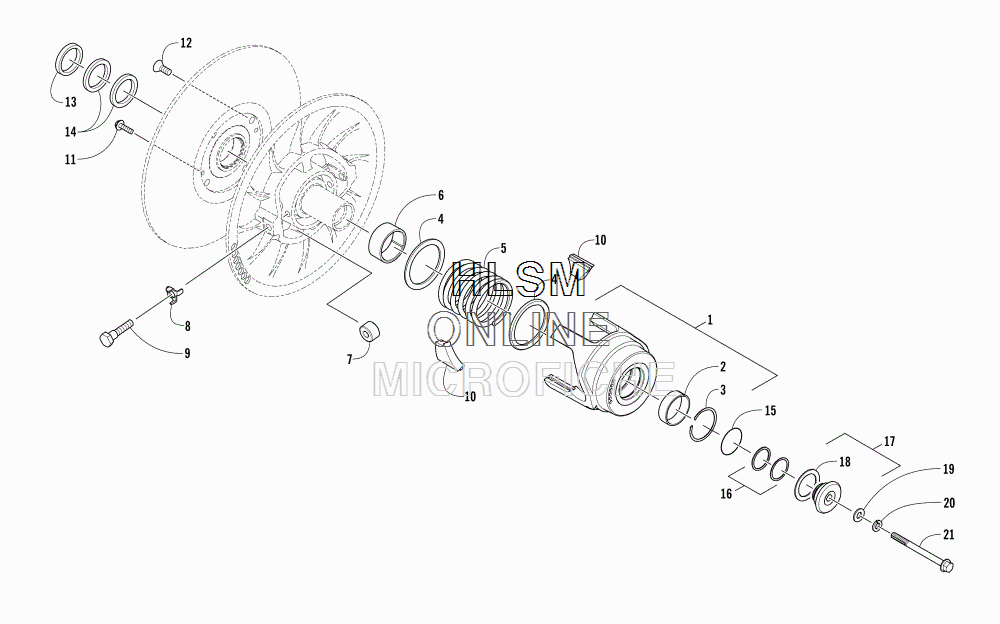

DRIVEN CLUTCH для Arctic Cat BEARCAT 2000 LT BLUE - 2017 года выпуска

  • №
    Артикул
    Название
  • h
    0726-360 CLUTCH, DRIVEN
    CLUTCH, DRIVEN
  • 1
    0748-702 BRACKET, TORQUE 46°/40° (INC. 2-3)
    BRACKET, TORQUE 46°/40° (INC. 2-3)
  • 2
    0648-433 ...RING, SNAP
    ...RING, SNAP
  • 3
    0648-009 ...BEARING, DRIVEN CLUTCH
    ...BEARING, DRIVEN CLUTCH
  • 4
    0648-713 SEAT, SPRING
    SEAT, SPRING
  • 5
    0648-774 SPRING, DRIVEN CLUTCH - ORANGE
    SPRING, DRIVEN CLUTCH - ORANGE
  • 6
    0648-806 SPACER
    SPACER
  • 7
    0648-453 SEAT, SPRING - DRIVEN
    SEAT, SPRING - DRIVEN
  • 8
    0648-097 PIN, ROLLER BEARING
    PIN, ROLLER BEARING
  • 9
    0648-139 ROLLER, CAM
    ROLLER, CAM
  • 10
    8070-224 PIN, SPRING
    PIN, SPRING
  • 11
    0637-322 UPDATE KIT, TORQUE BRACKET RETAINER (INC. 12)
    UPDATE KIT, TORQUE BRACKET RETAINER (INC. 12)
  • 12
    1623-517 ...SCREW, MACHINE - TSBH 10-24 X 1.25 W/2353
    ...SCREW, MACHINE - TSBH 10-24 X 1.25 W/2353
  • 13
    2623-031 WASHER
    WASHER
  • 14
    0648-442 WASHER, SHIM (.030 IN.)
    WASHER, SHIM (.030 IN.)
  • 14
    0648-443 WASHER, SHIM (.060 IN.)
    WASHER, SHIM (.060 IN.)
  • 15
    0648-441 O-RING
    O-RING
  • 16
    0648-715 WASHER, SHIM (.030 IN.)
    WASHER, SHIM (.030 IN.)
  • 16
    0648-716 WASHER, SHIM (.060 IN.)
    WASHER, SHIM (.060 IN.)
  • 16
    0648-714 WASHER, SHIM (.090 IN.)
    WASHER, SHIM (.090 IN.)
  • 17
    1702-114 KIT, ADJUSTER - SHEAVE - W/WASHER (INC. 18)
    KIT, ADJUSTER - SHEAVE - W/WASHER (INC. 18)
  • 18
    0648-788 ...WASHER, THRUST
    ...WASHER, THRUST
  • 19
    1623-415 WASHER
    WASHER
  • 20
    8051-272 WASHER, LOCK
    WASHER, LOCK
  • 21
    1623-572 SCREW, CAP
    SCREW, CAP
