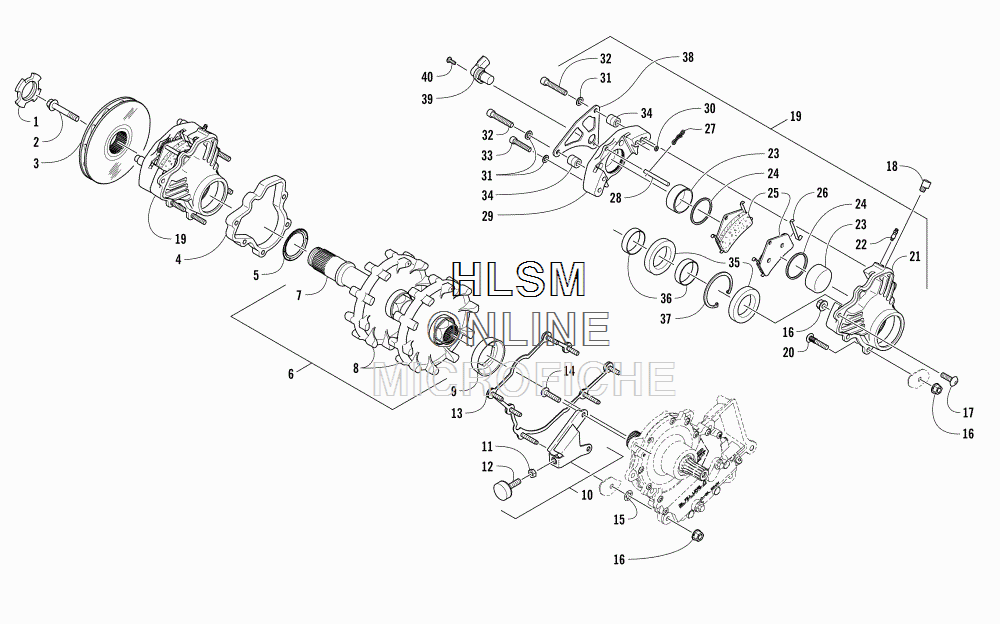

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES для Arctic Cat BEARCAT 2000 LT BLUE - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1602-957 NUT, RETAINING
    NUT, RETAINING
  • 2
    1623-461 SCREW, CAP
    SCREW, CAP
  • 3
    1602-656 DISC, BRAKE
    DISC, BRAKE
  • 4
    1602-480 SPACER, BRAKE CALIPER
    SPACER, BRAKE CALIPER
  • 5
    2602-076 SHIELD, BEARING
    SHIELD, BEARING
  • 6
    0728-181 TRACK, DRIVE, ASSEMBLY (ACT) (INC. 7-8)
    TRACK, DRIVE, ASSEMBLY (ACT) (INC. 7-8)
  • 7
    0702-880 ...SHAFT, DRIVE W/RETAINER - ASSEMBLY
    ...SHAFT, DRIVE W/RETAINER - ASSEMBLY
  • 8
    2602-253 ...SPROCKET, DRIVE
    ...SPROCKET, DRIVE
  • 9
    1602-984 SEAL
    SEAL
  • 10
    0708-540 BRACKET, TORQUE BUMPER - ASSEMBLY (INC. 11-12)
    BRACKET, TORQUE BUMPER - ASSEMBLY (INC. 11-12)
  • 11
    0123-191 ...NUT, JAM
    ...NUT, JAM
  • 12
    0608-355 ...BUMPER, TORQUE
    ...BUMPER, TORQUE
  • 13
    1702-060 PLATE, MOUNTING - REVERSE ACT DRIVE - PAINTED BLACK
    PLATE, MOUNTING - REVERSE ACT DRIVE - PAINTED BLACK
  • 14
    8476-830 SCREW, CAP
    SCREW, CAP
  • 15
    1623-355 NUT, PUSH
    NUT, PUSH
  • 16
    8427-802 NUT
    NUT
  • 17
    8477-845 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    1602-978 FITTING, INLET
    FITTING, INLET
  • 19
    1702-018 CALIPER, BRAKE - METRIC - S/P - ASSEMBLY (INC. 20-37)
    CALIPER, BRAKE - METRIC - S/P - ASSEMBLY (INC. 20-37)
  • 20
    1623-713 ...BOLT, CARRIAGE - RIBBED
    ...BOLT, CARRIAGE - RIBBED
  • 22
    1602-458 ...FITTING, BLEED
    ...FITTING, BLEED
  • 23
    1602-461 ...PISTON
    ...PISTON
  • 24
    1602-669 ...O-RING
    ...O-RING
  • 25
    0702-563 ...KIT, BRAKE PAD (INC. 26-27)
    ...KIT, BRAKE PAD (INC. 26-27)
  • 26
    1602-466 ......CLIP, ANTI-RATTLE
    ......CLIP, ANTI-RATTLE
  • 27
    1602-467 ......CLIP, HAIRPIN
    ......CLIP, HAIRPIN
  • 28
    1602-464 ...PIN, RETAINING - BRAKE PAD
    ...PIN, RETAINING - BRAKE PAD
  • 30
    0602-729 ...O-RING, HOUSING
    ...O-RING, HOUSING
  • 31
    0402-165 ...WASHER
    ...WASHER
  • 32
    1602-670 ...SCREW, CAP
    ...SCREW, CAP
  • 33
    1602-671 ...SCREW, CAP
    ...SCREW, CAP
  • 34
    2602-132 ...SPACER, SPEEDOMETER BRACKET
    ...SPACER, SPEEDOMETER BRACKET
  • 35
    2602-131 ...BEARING, 45 MM X 68 MM X 12 MM
    ...BEARING, 45 MM X 68 MM X 12 MM
  • 36
    1602-463 ...SLEEVE, DRIVESHAFT
    ...SLEEVE, DRIVESHAFT
  • 37
    1602-456 ...RING, RETAINING
    ...RING, RETAINING
  • 38
    6606-167 PLATE, MOUNTING - SPEEDOMETER SENSOR
    PLATE, MOUNTING - SPEEDOMETER SENSOR
  • 39
    0430-091 SENSOR, SPEEDOMETER
    SENSOR, SPEEDOMETER
  • 40
    8468-617 SCREW, MACHINE
    SCREW, MACHINE
