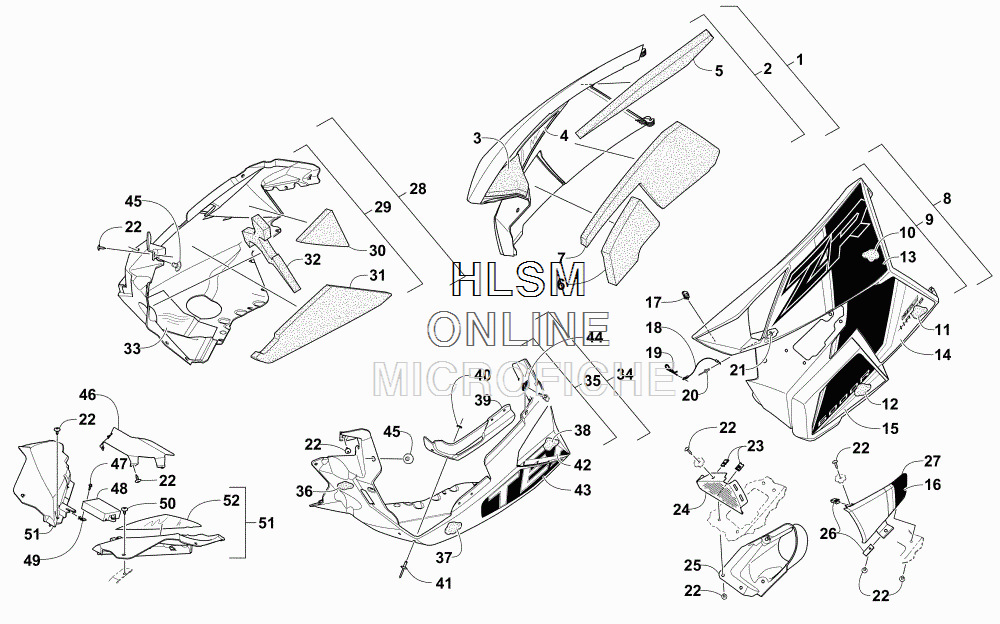

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat ZR 6000 R XC GREEN INTERNATIONAL [S2016ACDCCOSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-960 PANEL, SIDE - W/DECALS - RIGHT - GREEN (INC. 2-7 AND 13-15)
    PANEL, SIDE - W/DECALS - RIGHT - GREEN (INC. 2-7 AND 13-15)
  • 2
    3718-858 ...PANEL, SIDE - W/O DECALS - RIGHT - GREEN (INC. 3-7)
    ...PANEL, SIDE - W/O DECALS - RIGHT - GREEN (INC. 3-7)
  • 3
    0617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
    ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
  • 4
    6606-414 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 5
    0617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
    ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
  • 6
    0617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
    ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
  • 7
    0617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT
    ......FOAM, SIDE PANEL - LOWER REAR - RIGHT
  • 8
    4718-961 PANEL, SIDE - W/DECALS - LEFT - GREEN (INC. 9-16)
    PANEL, SIDE - W/DECALS - LEFT - GREEN (INC. 9-16)
  • 9
    4718-577 ...PANEL, SIDE - W/O DECALS - LEFT - GREEN (INC. 10-12)
    ...PANEL, SIDE - W/O DECALS - LEFT - GREEN (INC. 10-12)
  • 10
    0617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT
    ......FOAM, SIDE PANEL - UPPER REAR - LEFT
  • 11
    0617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT
    ......FOAM, SIDE PANEL - LOWER REAR - LEFT
  • 12
    0617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
    ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
  • 13
    3621-134 ...DECAL, SIDE PANEL - UPPER - RIGHT
    ...DECAL, SIDE PANEL - UPPER - RIGHT
  • 13
    3621-135 ...DECAL, SIDE PANEL - UPPER - LEFT
    ...DECAL, SIDE PANEL - UPPER - LEFT
  • 14
    3621-130 ...DECAL, SIDE PANEL - LOWER - RIGHT
    ...DECAL, SIDE PANEL - LOWER - RIGHT
  • 14
    3621-131 ...DECAL, SIDE PANEL - LOWER - LEFT
    ...DECAL, SIDE PANEL - LOWER - LEFT
  • 15
    3621-128 ...DECAL, SIDE PANEL - FRONT - RIGHT
    ...DECAL, SIDE PANEL - FRONT - RIGHT
  • 15
    3621-129 ...DECAL, SIDE PANEL - FRONT - LEFT
    ...DECAL, SIDE PANEL - FRONT - LEFT
  • 16
    2621-903 ...DECAL, SIDE PANEL - MID VENT - LEFT
    ...DECAL, SIDE PANEL - MID VENT - LEFT
  • 17
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 18
    0607-447 CABLE
    CABLE
  • 19
    0605-283 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 20
    8060-486 RIVET
    RIVET
  • 21
    8050-127 WASHER
    WASHER
  • 22
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 23
    1623-052 CLIP, U-NUT
    CLIP, U-NUT
  • 24
    6606-925 SCREEN, INTAKE
    SCREEN, INTAKE
  • 25
    2602-794 DUCT, INTAKE - INNER
    DUCT, INTAKE - INNER
  • 26
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 27
    2602-801 DUCT, INTAKE - OUTER - GREEN
    DUCT, INTAKE - OUTER - GREEN
  • 28
    4718-992 PLATE, SKID - W/DECALS - RIGHT - BLACK (INC. 29-33 AND 40-43)
    PLATE, SKID - W/DECALS - RIGHT - BLACK (INC. 29-33 AND 40-43)
  • 29
    4718-922 ...PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 30-33 AND 40)
    ...PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 30-33 AND 40)
  • 30
    0617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT
    ...FOAM, SKID PLATE - UPPER REAR - RIGHT
  • 31
    0617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT
    ...FOAM, SKID PLATE - CENTER FRONT - RIGHT
  • 32
    0617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT
    ...FOAM, SKID PLATE - UPPER FRONT - RIGHT
  • 33
    7606-290 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 34
    4718-993 PLATE, SKID - W/DECALS - LEFT - BLACK (INC. 35-43)
    PLATE, SKID - W/DECALS - LEFT - BLACK (INC. 35-43)
  • 35
    3718-789 ...PLATE, SKID - W/O DECALS - LEFT - BLACK (INC. 36-39)
    ...PLATE, SKID - W/O DECALS - LEFT - BLACK (INC. 36-39)
  • 36
    0617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT
    ......FOAM, SKID PLATE - UPPER FRONT - LEFT
  • 37
    0617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT
    ......FOAM, SKID PLATE - CENTER FRONT - LEFT
  • 38
    0617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT
    ......FOAM, SKID PLATE - UPPER REAR - LEFT
  • 39
    6606-613 ......PANEL, REINFORCEMENT
    ......PANEL, REINFORCEMENT
  • 40
    0123-802 ...WASHER
    ...WASHER
  • 41
    8061-708 ...RIVET
    ...RIVET
  • 42
    3621-124 ...DECAL, SKID PLATE - REAR - RIGHT
    ...DECAL, SKID PLATE - REAR - RIGHT
  • 42
    3621-125 ...DECAL, SKID PLATE - FRONT - LEFT
    ...DECAL, SKID PLATE - FRONT - LEFT
  • 43
    3621-126 ...DECAL, SKID PLATE - FRONT - RIGHT
    ...DECAL, SKID PLATE - FRONT - RIGHT
  • 43
    3621-127 ...DECAL, SKID PLATE - REAR - LEFT
    ...DECAL, SKID PLATE - REAR - LEFT
  • 44
    2623-005 CLIP, RETAINING
    CLIP, RETAINING
  • 45
    6606-592 PIN, RETAINING
    PIN, RETAINING
  • 46
    6606-940 SHIELD, HEAT - ECM
    SHIELD, HEAT - ECM
  • 47
    8408-620 SCREW, CAP
    SCREW, CAP
  • 48
    0730-255 ECM
    ECM
  • 49
    0423-031 CLIP, U-NUT
    CLIP, U-NUT
  • 50
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 51
    6606-342 FASCIA, FRONT - RIGHT - BLACK
    FASCIA, FRONT - RIGHT - BLACK
  • 51
    3718-303 FASCIA, FRONT W/ FOIL - LEFT - BLACK (INC. 52)
    FASCIA, FRONT W/ FOIL - LEFT - BLACK (INC. 52)
  • 52
    6606-405 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
