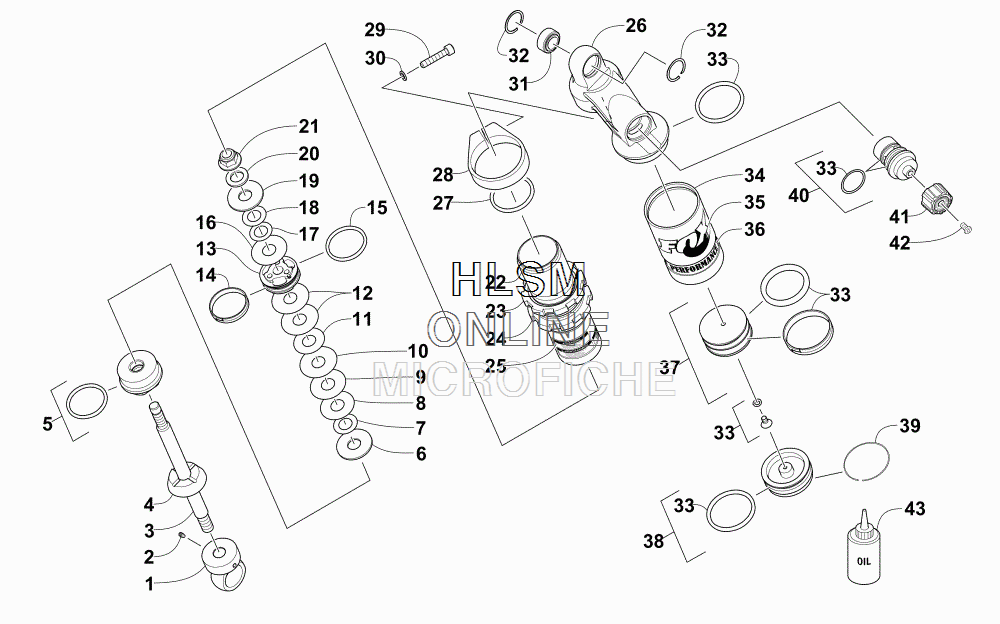

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat ZR 6000 R XC GREEN INTERNATIONAL [S2016ACDCCOSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • -
    2704-635 SHOCK ABSORBER
    SHOCK ABSORBER
  • 1
    3604-842 EYELET, SHOCK
    EYELET, SHOCK
  • 2
    1603-940 SCREW, SET
    SCREW, SET
  • 3
    3604-895 ROD, SHOCK
    ROD, SHOCK
  • 4
    3604-530 BUMPER
    BUMPER
  • 5
    2604-413 BEARING - ASSEMBLY
    BEARING - ASSEMBLY
  • 6
    0603-540 WASHER, TOP OUT - 1.125OD X 0.378ID X 0.093
    WASHER, TOP OUT - 1.125OD X 0.378ID X 0.093
  • 7
    0603-731 VALVE, 0.700 X 0.004 IN.
    VALVE, 0.700 X 0.004 IN.
  • 8
    0603-893 VALVE, 1.000 X 0.004 IN.
    VALVE, 1.000 X 0.004 IN.
  • 9
    0603-892 VALVE, 1.100 X 0.004 IN.
    VALVE, 1.100 X 0.004 IN.
  • 10
    0603-350 VALVE, 1.300 X 0.010 IN.
    VALVE, 1.300 X 0.010 IN.
  • 11
    0603-895 VALVE, 0.800 X 0.004 IN.
    VALVE, 0.800 X 0.004 IN.
  • 12
    0603-349 VALVE, 1.300 X 0.008 IN.
    VALVE, 1.300 X 0.008 IN.
  • 13
    2603-897 PISTON, 0.035 IN. - ORIFICE
    PISTON, 0.035 IN. - ORIFICE
  • 14
    2603-994 STRAP, PISTON
    STRAP, PISTON
  • 15
    2604-214 O-RING
    O-RING
  • 16
    0603-343 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 17
    3604-171 VALVE, 0.600 X 0.004 IN.
    VALVE, 0.600 X 0.004 IN.
  • 18
    0603-332 VALVE, 0.700 X 0.010 IN.
    VALVE, 0.700 X 0.010 IN.
  • 19
    3604-170 WASHER, TOP OUT
    WASHER, TOP OUT
  • 20
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 21
    0603-301 NUT, CAP - FOX SHOCK
    NUT, CAP - FOX SHOCK
  • 22
    3604-729 BODY, SHOCK
    BODY, SHOCK
  • 23
    2604-841 COLLAR, LOCKING - ADJUSTER NUT
    COLLAR, LOCKING - ADJUSTER NUT
  • 24
    2604-840 NUT, ADJUSTER
    NUT, ADJUSTER
  • 25
    3603-418 DECAL, WARNING
    DECAL, WARNING
  • 26
    3604-531 END CAP, SHOCK/RESERVOIR
    END CAP, SHOCK/RESERVOIR
  • 27
    0603-438 O-RING-END CAP
    O-RING-END CAP
  • 28
    3604-532 CLAMP, BODY/END CAP
    CLAMP, BODY/END CAP
  • 29
    4604-203 SCREW, TORX
    SCREW, TORX
  • 30
    4604-204 WASHER
    WASHER
  • 31
    3604-526 BEARING
    BEARING
  • 32
    3604-527 RING, RETAINING
    RING, RETAINING
  • 33
    4604-017 KIT, REBUILD - RESERVOIR
    KIT, REBUILD - RESERVOIR
  • 34
    3603-488 RESERVOIR
    RESERVOIR
  • 35
    3603-378 DECAL, RESERVOIR
    DECAL, RESERVOIR
  • 36
    3603-365 DECAL, "PERFORMANCE SERIES"
    DECAL, "PERFORMANCE SERIES"
  • 37
    3603-422 PISTON, INTERNAL FLOATING
    PISTON, INTERNAL FLOATING
  • 38
    3603-392 END CAP, RESERVOIR
    END CAP, RESERVOIR
  • 39
    3603-379 RING, RETAINING
    RING, RETAINING
  • 40
    3603-466 CARTRIDGE, DAMPING ADJUSTER
    CARTRIDGE, DAMPING ADJUSTER
  • 41
    3603-385 KNOB, DAMPING ADJUSTER - LOW SPEED
    KNOB, DAMPING ADJUSTER - LOW SPEED
  • 42
    3603-377 SCREW, MACHINE
    SCREW, MACHINE
  • 43
    5639-530 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
