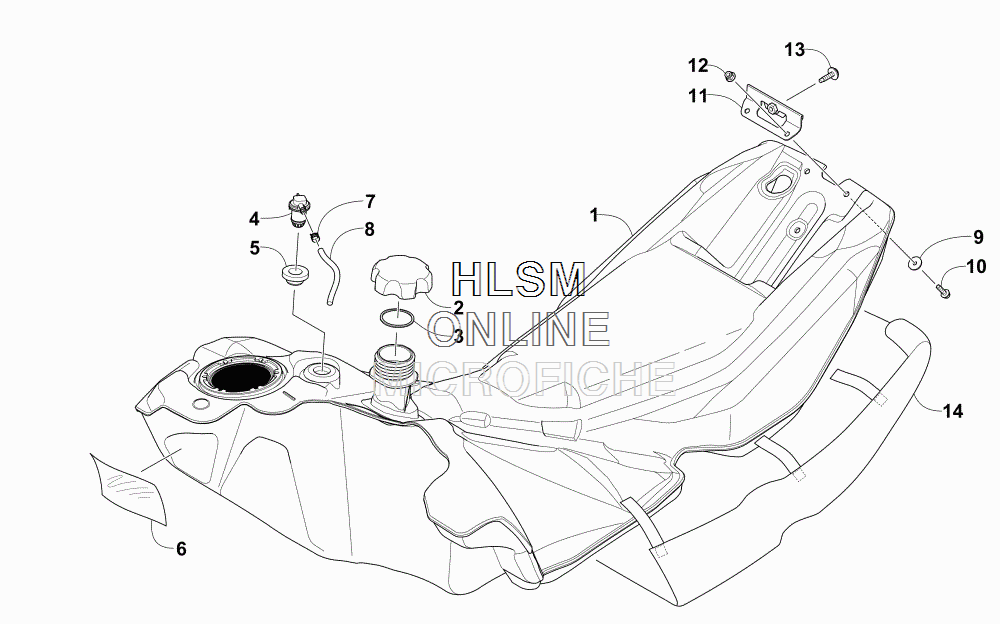

GAS TANK ASSEMBLY для Arctic Cat ZR 6000 R XC GREEN INTERNATIONAL [S2016ACDCCOSG] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1770-111 TANK, GAS - ASSEMBLY (INC. 2-5)
    TANK, GAS - ASSEMBLY (INC. 2-5)
  • 2
    2670-153 ...CAP, GAS TANK - ASSEMBLY (INC. 3)
    ...CAP, GAS TANK - ASSEMBLY (INC. 3)
  • 3
    0109-733 ......SEAL, GAS TANK CAP
    ......SEAL, GAS TANK CAP
  • 4
    1670-787 ...VALVE, CHECK
    ...VALVE, CHECK
  • 5
    1670-822 ...GROMMET
    ...GROMMET
  • 6
    0619-206 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 7
    1623-233 CLAMP, HOSE
    CLAMP, HOSE
  • 8
    6101-009 HOSE - 50 FT
    HOSE - 50 FT
  • 8
    6101-001 HOSE - 100 FT
    HOSE - 100 FT
  • 9
    8050-223 WASHER, FLAT
    WASHER, FLAT
  • 10
    8410-620 SCREW, MACHINE
    SCREW, MACHINE
  • 11
    6606-996 BRACKET, HOLD-DOWN
    BRACKET, HOLD-DOWN
  • 12
    8427-602 NUT, LOCK
    NUT, LOCK
  • 13
    0423-609 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    5706-716 COVER, GAS TANK
    COVER, GAS TANK
