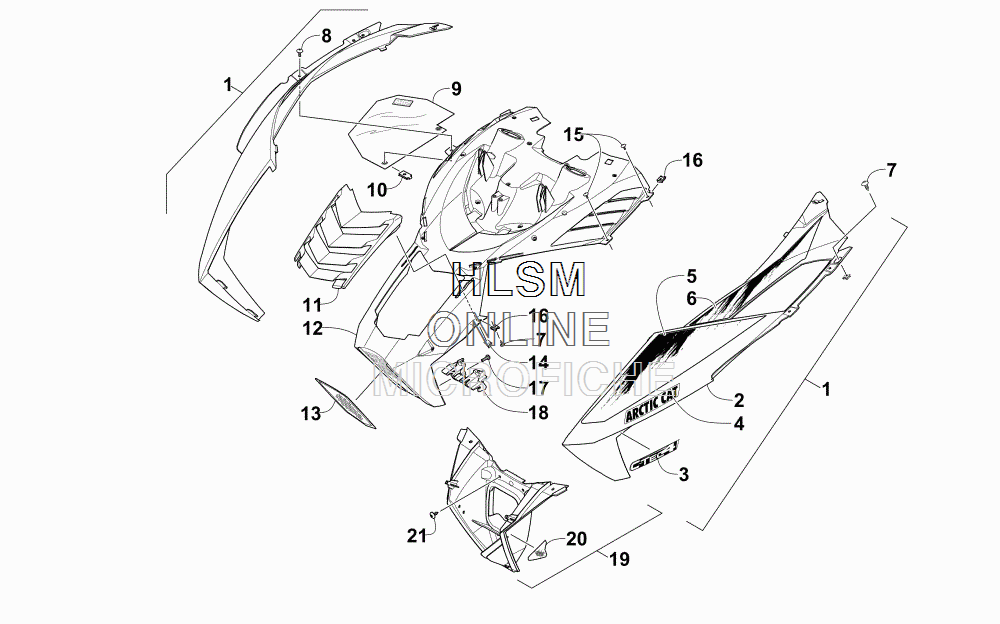

HOOD ASSEMBLY для Arctic Cat ZR 7000 SNO PRO (ORANGE) [S2015ZRUSPUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-378 HOOD W/ DECALS - RIGHT - (WHITE) (INC. 2-6)
    HOOD W/ DECALS - RIGHT - (WHITE) (INC. 2-6)
  • 2
    6606-324 ...HOOD W/O DECALS - RIGHT - (WHITE)
    ...HOOD W/O DECALS - RIGHT - (WHITE)
  • 3
    0621-993 ......DECAL, HOOD - "C-TEC"
    ......DECAL, HOOD - "C-TEC"
  • 4
    0621-732 .........DECAL, HOOD - "ARCTIC CAT" - (BLACK/WHITE)
    .........DECAL, HOOD - "ARCTIC CAT" - (BLACK/WHITE)
  • 5
    1621-496 ...DECAL, HOOD - FRONT RIGHT - (GREEN)
    ...DECAL, HOOD - FRONT RIGHT - (GREEN)
  • 6
    1621-498 ...DECAL, HOOD - REAR RIGHT - (GREEN)
    ...DECAL, HOOD - REAR RIGHT - (GREEN)
  • 1
    4718-379 HOOD W/ DECALS - LEFT - (WHITE/GREEN) (INC. 2-6)
    HOOD W/ DECALS - LEFT - (WHITE/GREEN) (INC. 2-6)
  • 2
    6606-325 ...HOOD W/O DECALS - LEFT - (WHITE)
    ...HOOD W/O DECALS - LEFT - (WHITE)
  • 5
    1621-497 ...DECAL, HOOD - FRONT LEFT - (GREEN)
    ...DECAL, HOOD - FRONT LEFT - (GREEN)
  • 6
    1621-499 ...DECAL, HOOD - REAR LEFT - (GREEN)
    ...DECAL, HOOD - REAR LEFT - (GREEN)
  • 7
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 8
    1623-031 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 9
    1712-899 SHIELD, HEAT - RIGHT
    SHIELD, HEAT - RIGHT
  • 10
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 11
    6606-388 GRILLE, INTERCOOLER - (BLACK)
    GRILLE, INTERCOOLER - (BLACK)
  • 12
    6606-510 PLENUM, INTAKE - UPPER
    PLENUM, INTAKE - UPPER
  • 13
    0608-696 SCREEN, VENT
    SCREEN, VENT
  • 14
    1623-694 CLIP, RETAINING
    CLIP, RETAINING
  • 15
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 16
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 17
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 18
    6606-822 RETAINER, PLENUM
    RETAINER, PLENUM
  • 19
    5706-992 PLENUM, INTAKE - LOWER FRONT (INC. 20)
    PLENUM, INTAKE - LOWER FRONT (INC. 20)
  • 20
    0621-989 ...DECAL, REFLECTOR - (AMBER)
    ...DECAL, REFLECTOR - (AMBER)
  • 21
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
