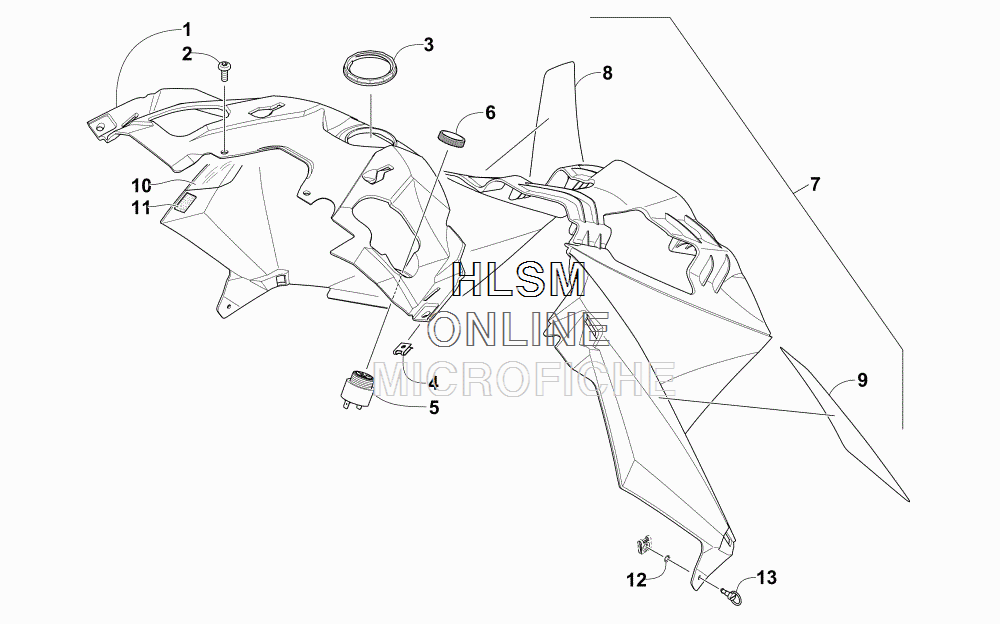

CONSOLE ASSEMBLY для Arctic Cat ZR 7000 SNO PRO (ORANGE) [S2015ZRUSPUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    6606-309 CONSOLE, UPPER - 4 STROKE - (BLACK)
    CONSOLE, UPPER - 4 STROKE - (BLACK)
  • 2
    0423-396 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    6606-390 NUT, RETAINING
    NUT, RETAINING
  • 4
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 5
    0630-243 ALARM, REVERSE (INC. 6)
    ALARM, REVERSE (INC. 6)
  • 6
    0630-017 ...RING, RETAINING
    ...RING, RETAINING
  • 7
    4718-454 CONSOLE W/DECALS, LOWER - (BLACK) (INC. 8-11)
    CONSOLE W/DECALS, LOWER - (BLACK) (INC. 8-11)
  • 8
    9611-499 ...DECAL, WARNING (ENGLISH)
    ...DECAL, WARNING (ENGLISH)
  • 9
    9611-498 ...DECAL, WARNING (FRENCH)
    ...DECAL, WARNING (FRENCH)
  • 10
    6606-812 ...FOIL, PROTECTIVE - CONSOLE
    ...FOIL, PROTECTIVE - CONSOLE
  • 11
    6990-323 ...VELCRO - (3 FT)
    ...VELCRO - (3 FT)
  • 12
    2623-004 NUT, PUSH
    NUT, PUSH
  • 13
    2623-003 PIN, RETAINING - (16MM)
    PIN, RETAINING - (16MM)
