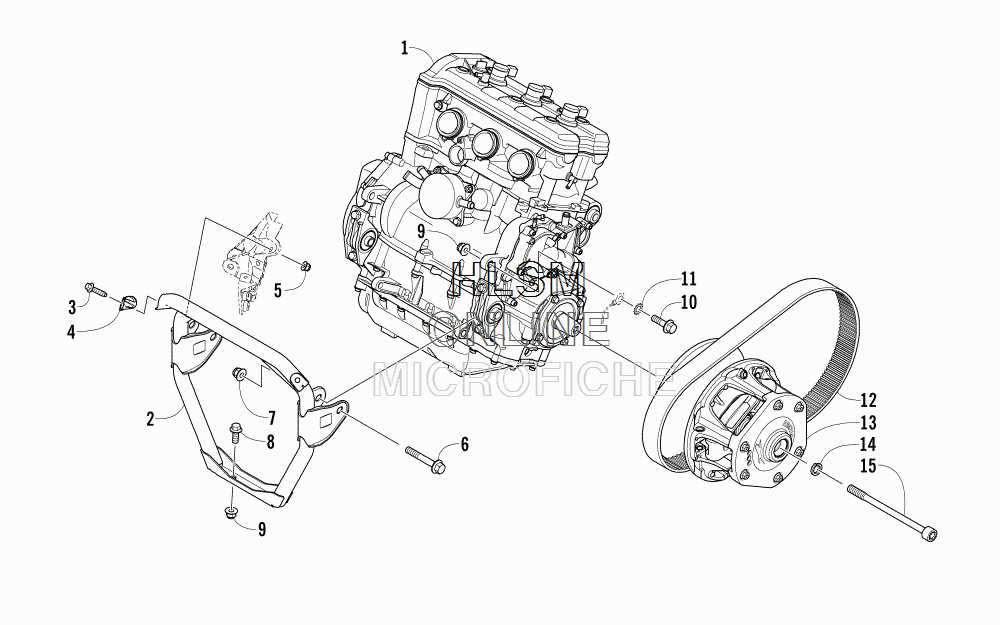

ENGINE AND RELATED PARTS для Arctic Cat ZR 7000 SNO PRO (ORANGE) [S2015ZRUSPUSO] - 2015 года выпуска`
-
№АртикулНазвание
-
10662-611 ENGINE, Z3ENGINE, Z3
-
20708-591 BRACKET, ENGINE MOUNTING - FRONT - (BLACK)BRACKET, ENGINE MOUNTING - FRONT - (BLACK)
-
38408-830 SCREW, CAPSCREW, CAP
-
41607-002 INSERTINSERT
-
58427-802 NUT, LOCKNUT, LOCK
-
68413-275 SCREW, CAPSCREW, CAP
-
78427-202 NUT, LOCKNUT, LOCK
-
88408-025 SCREW, CAPSCREW, CAP
-
98427-002 NUT, LOCKNUT, LOCK
-
108408-030 SCREW, CAPSCREW, CAP
-
118053-272 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
120627-070 BELT, DRIVE - (1.448 IN.W X 44.25 IN. OC-DC)BELT, DRIVE - (1.448 IN.W X 44.25 IN. OC-DC)
-
130746-273 CLUTCH, DRIVE - UNCALIBRATED - (8.25 30MM/Y)CLUTCH, DRIVE - UNCALIBRATED - (8.25 30MM/Y)
-
140623-210 WASHER, HIGH COLLAR - (1/2 IN.)WASHER, HIGH COLLAR - (1/2 IN.)
-
150623-804 BOLT, CLUTCHBOLT, CLUTCH
