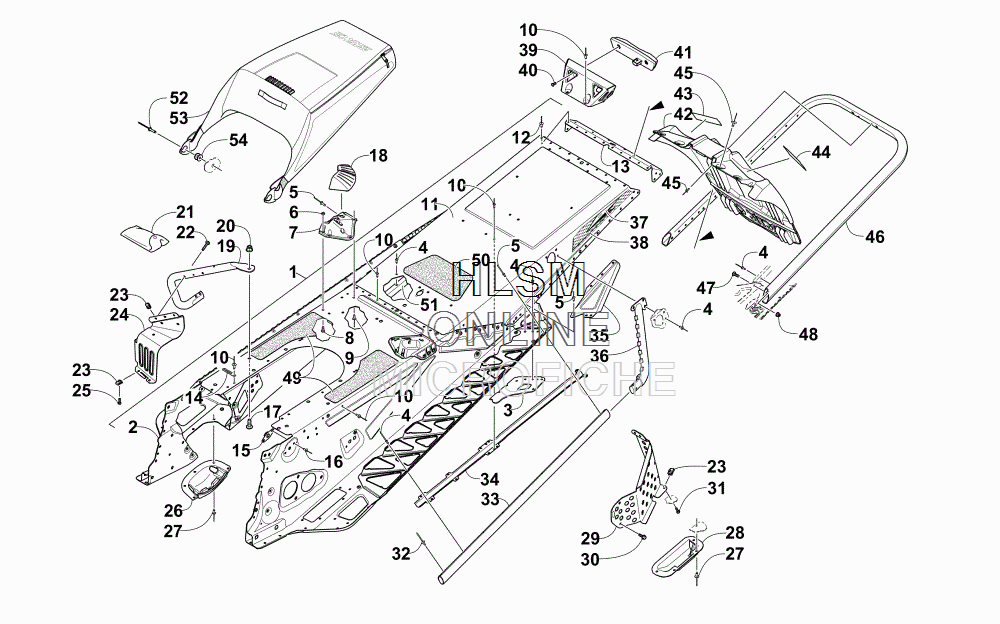

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 7000 LXR (GREEN) [S2015ZRULXUSG] - 2015 года выпуска
-
№АртикулНазвание
-
-2707-063 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
12707-394 TUNNEL ASSEMBLY (INC. 2-13)TUNNEL ASSEMBLY (INC. 2-13)
-
21707-954 ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
-
30607-992 ......BRACKET, MOUNTING - SUSPENSION - RIGHT......BRACKET, MOUNTING - SUSPENSION - RIGHT
-
30607-993 ......BRACKET, MOUNTING - SUSPENSION - LEFT......BRACKET, MOUNTING - SUSPENSION - LEFT
-
48060-686 ......RIVET......RIVET
-
51623-241 ...RIVET...RIVET
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
71707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT...BRACKET, MOUNTING - REAR SPAR - RIGHT
-
71707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT...BRACKET, MOUNTING - REAR SPAR - LEFT
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-682 ...RIVET...RIVET
-
111607-380 ...TUNNEL, REAR...TUNNEL, REAR
-
128060-484 ...RIVET...RIVET
-
131607-104 ...END CAP, TUNNEL...END CAP, TUNNEL
-
141623-984 CLAMP, WIRE - 76.14MM LG W/6.25 HOLECLAMP, WIRE - 76.14MM LG W/6.25 HOLE
-
150608-631 PLATE, RETAININGPLATE, RETAINING
-
168060-688 RIVETRIVET
-
178476-820 SCREW, MACHINESCREW, MACHINE
-
186606-664 SUPPORT, GAS TANK - RIGHTSUPPORT, GAS TANK - RIGHT
-
186606-665 SUPPORT, GAS TANK - LEFTSUPPORT, GAS TANK - LEFT
-
191707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
191707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
208427-802 NUT, LOCKNUT, LOCK
-
210744-064 KIT, TOOLKIT, TOOL
-
228468-535 SCREW, MACHINESCREW, MACHINE
-
231623-637 CLIP, U-NUTCLIP, U-NUT
-
240607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
240607-997 FOOTREST - LEFTFOOTREST - LEFT
-
258470-516 SCREW, MACHINESCREW, MACHINE
-
261607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
278061-708 RIVETRIVET
-
280607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
291607-371 SHIELD, BRAKE DISCSHIELD, BRAKE DISC
-
308408-613 SCREW, CAPSCREW, CAP
-
318470-520 SCREW, MACHINESCREW, MACHINE
-
321623-130 RIVETRIVET
-
331607-092 ROLL, TUNNELROLL, TUNNEL
-
340630-315 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
351607-162 GUSSET, RUNNING BOARD - RIGHTGUSSET, RUNNING BOARD - RIGHT
-
351607-163 GUSSET, RUNNING BOARD - LEFTGUSSET, RUNNING BOARD - LEFT
-
361607-040 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
361607-041 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
370621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
381621-588 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
381621-589 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
390630-328 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
408470-510 SCREW, MACHINESCREW, MACHINE
-
410609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
426606-394 SNOWFLAPSNOWFLAP
-
435611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
445611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
458061-706 RIVETRIVET
-
462707-432 BUMPER, REAR - TEAM ARCTIC GREENBUMPER, REAR - TEAM ARCTIC GREEN
-
478476-620 SCREW, MACHINESCREW, MACHINE
-
488427-602 NUT, LOCKNUT, LOCK
-
496606-814 PAD, FUEL TANK - RIGHTPAD, FUEL TANK - RIGHT
-
496606-815 PAD, FUEL TANK - LEFTPAD, FUEL TANK - LEFT
-
506606-816 PAD, FUEL TANK - CENTERPAD, FUEL TANK - CENTER
-
511607-454 PROTECTOR, TUNNELPROTECTOR, TUNNEL
-
528060-630 RIVETRIVET
-
536606-952 SADDLEBAGSADDLEBAG
-
541623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
