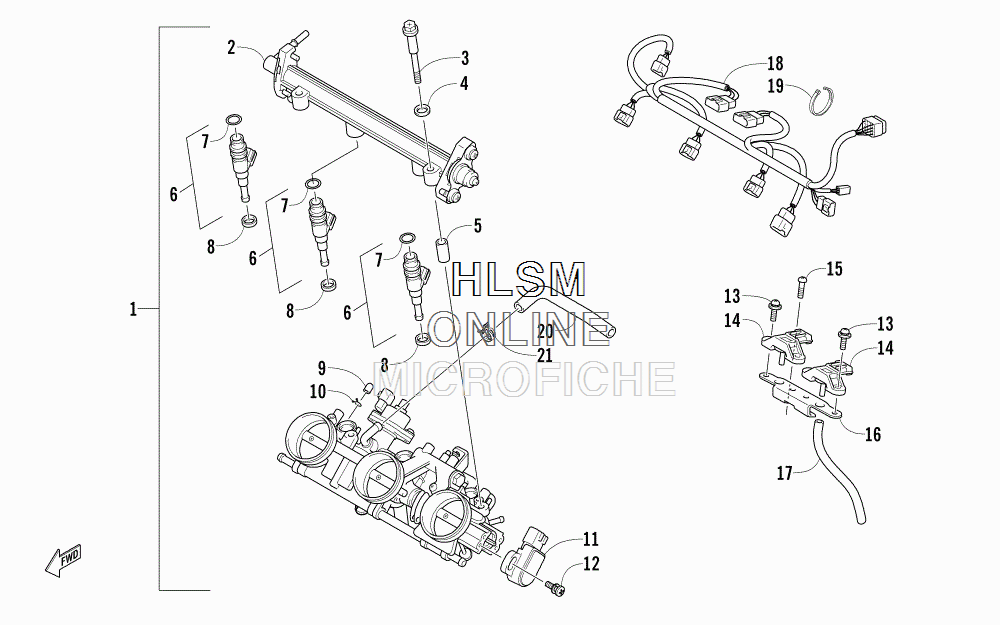

THROTTLE BODY ASSEMBLY для Arctic Cat ZR 7000 LXR (GREEN) [S2015ZRULXUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3020-327 BODY, THROTTLE - ASSEMBLY (INC. 2-19)
    BODY, THROTTLE - ASSEMBLY (INC. 2-19)
  • 2
    3020-328 ...RAIL, FUEL
    ...RAIL, FUEL
  • 3
    3020-329 SCREW, SHOULDER
    SCREW, SHOULDER
  • 4
    3020-330 WASHER
    WASHER
  • 5
    3020-331 SPACER
    SPACER
  • 6
    3020-332 INJECTOR (INC. 7)
    INJECTOR (INC. 7)
  • 7
    3020-333 ...O-RING
    ...O-RING
  • 8
    3020-334 GROMMET
    GROMMET
  • 9
    3020-340 CAP
    CAP
  • 10
    3020-341 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    3020-342 SENSOR, THROTTLE POSITION - ASSEMBLY
    SENSOR, THROTTLE POSITION - ASSEMBLY
  • 12
    3020-343 SCREW, MACHINE
    SCREW, MACHINE
  • 13
    3020-336 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    3020-337 SENSOR, PRESSURE
    SENSOR, PRESSURE
  • 17
    3020-338 HOSE, VENT
    HOSE, VENT
  • 18
    3020-344 HARNESS, EXTENSION - ENGINE
    HARNESS, EXTENSION - ENGINE
  • 19
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 19
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
  • 20
    0610-962 HOSE, ISC
    HOSE, ISC
  • 21
    1623-281 CLAMP, HOSE
    CLAMP, HOSE
