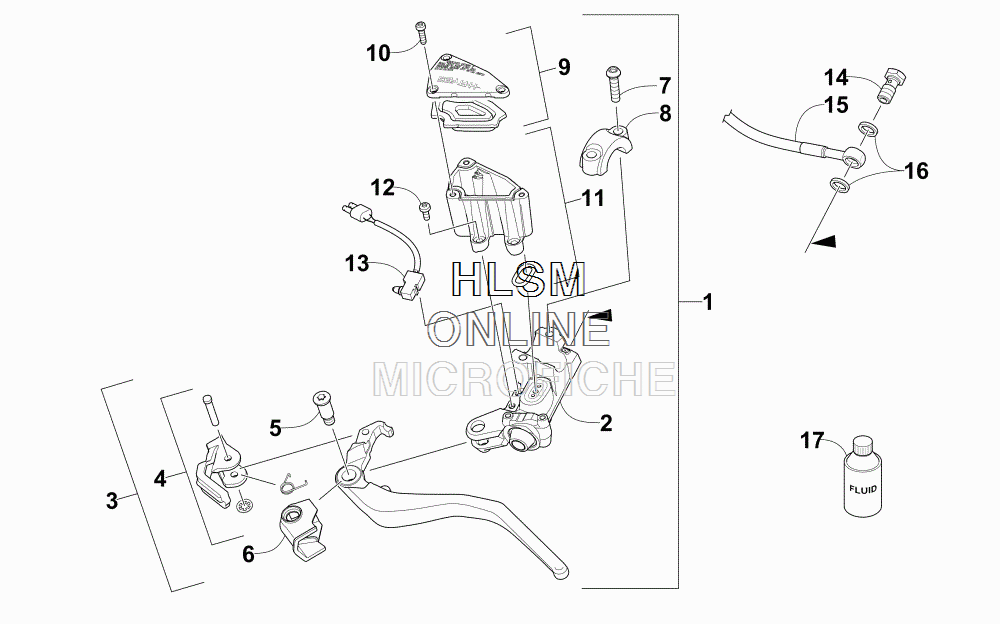

HYDRAULIC BRAKE CONTROL ASSEMBLY для Arctic Cat ZR 7000 LXR (GREEN) [S2015ZRULXUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2602-477 BRAKE ASSEMBLY (INC. 2-13)
    BRAKE ASSEMBLY (INC. 2-13)
  • 2
    2602-479 ...PISTON ASSEMBLY
    ...PISTON ASSEMBLY
  • 3
    2602-427 LEVER, BRAKE - ASSEMBLY (INC. 4-6)
    LEVER, BRAKE - ASSEMBLY (INC. 4-6)
  • 4
    2602-428 ...LOCK, BRAKE LEVER - KIT
    ...LOCK, BRAKE LEVER - KIT
  • 5
    2602-624 ...SCREW, SHOULDER
    ...SCREW, SHOULDER
  • 6
    2602-625 ...BOOT
    ...BOOT
  • 7
    1602-936 SCREW, MACHINE
    SCREW, MACHINE
  • 8
    0502-869 CLAMP, HANDLEBAR
    CLAMP, HANDLEBAR
  • 9
    2602-429 COVER, RESERVOIR
    COVER, RESERVOIR
  • 10
    2602-430 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 11
    2602-433 RESERVOIR (INC. 12)
    RESERVOIR (INC. 12)
  • 12
    2602-519 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 13
    2602-432 SWITCH, BRAKE
    SWITCH, BRAKE
  • 14
    0423-413 BOLT, BANJO-FITTING
    BOLT, BANJO-FITTING
  • 15
    2602-424 BRAKELINE, HYDRAULIC
    BRAKELINE, HYDRAULIC
  • 16
    0423-178 WASHER, CRUSH
    WASHER, CRUSH
  • 17
    5639-848 FLUID, BRAKE - 12 OZ
    FLUID, BRAKE - 12 OZ
