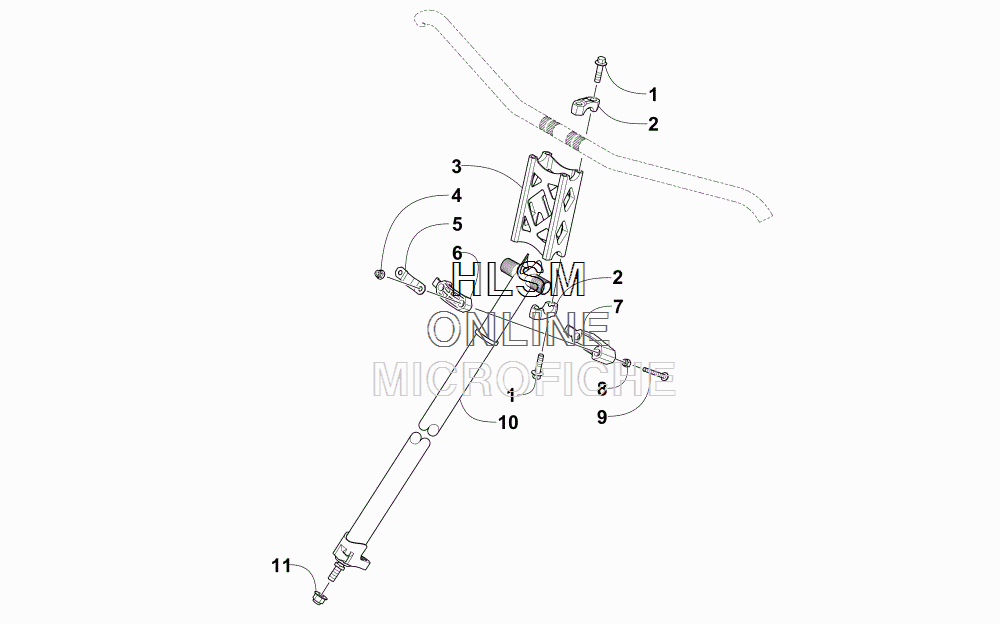

STEERING POST ASSEMBLY для Arctic Cat ZR 6000 RXC (GREEN) (INTERNATIONAL) [S2015ACDCCOSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    8408-830 SCREW,CAP-HFH M8X1.25X30 CL8.8 Z & Y
    SCREW,CAP-HFH M8X1.25X30 CL8.8 Z & Y
  • 2
    1605-118 CAP, STEERING
    CAP, STEERING
  • 3
    1605-073 RISER,5.5" HANDLEBAR-MACH
    RISER,5.5" HANDLEBAR-MACH
  • 3
    1605-086 BLOCK, RISER - 2.0 IN. OPTIONAL
    BLOCK, RISER - 2.0 IN. OPTIONAL
  • 3
    1605-063 BLOCK, RISER - 3.0 IN. OPTIONAL
    BLOCK, RISER - 3.0 IN. OPTIONAL
  • 3
    1605-035 BLOCK, RISER - 4.5 IN. OPTIONAL
    BLOCK, RISER - 4.5 IN. OPTIONAL
  • 3
    1605-034 BLOCK, RISER - 6.5 IN. OPTIONAL
    BLOCK, RISER - 6.5 IN. OPTIONAL
  • 3
    1605-070 BLOCK, RISER - 7.5 IN. OPTIONAL
    BLOCK, RISER - 7.5 IN. OPTIONAL
  • 3
    1605-071 BLOCK, RISER - 8.5 IN. OPTIONAL
    BLOCK, RISER - 8.5 IN. OPTIONAL
  • 4
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 5
    0605-998 PLATE,RETAINING-STEERING POST
    PLATE,RETAINING-STEERING POST
  • 6
    1605-043 BLOCK, MOUNTING - STEERING POST
    BLOCK, MOUNTING - STEERING POST
  • 7
    1605-044 BLOCK, MOUNTING - STEERING POST
    BLOCK, MOUNTING - STEERING POST
  • 8
    8422-602 NUT,HEX-THK NYL M6X1.00 CL8 Z & Y
    NUT,HEX-THK NYL M6X1.00 CL8 Z & Y
  • 9
    2623-079 SCREW,MACH-TSPNH M6X1.0X60 CL8.8 Z & Y
    SCREW,MACH-TSPNH M6X1.0X60 CL8.8 Z & Y
  • 10
    1705-309 POST, STEERING
    POST, STEERING
  • 11
    2623-076 WASHER, INTERNAL TOOTH LOCK
    WASHER, INTERNAL TOOTH LOCK
