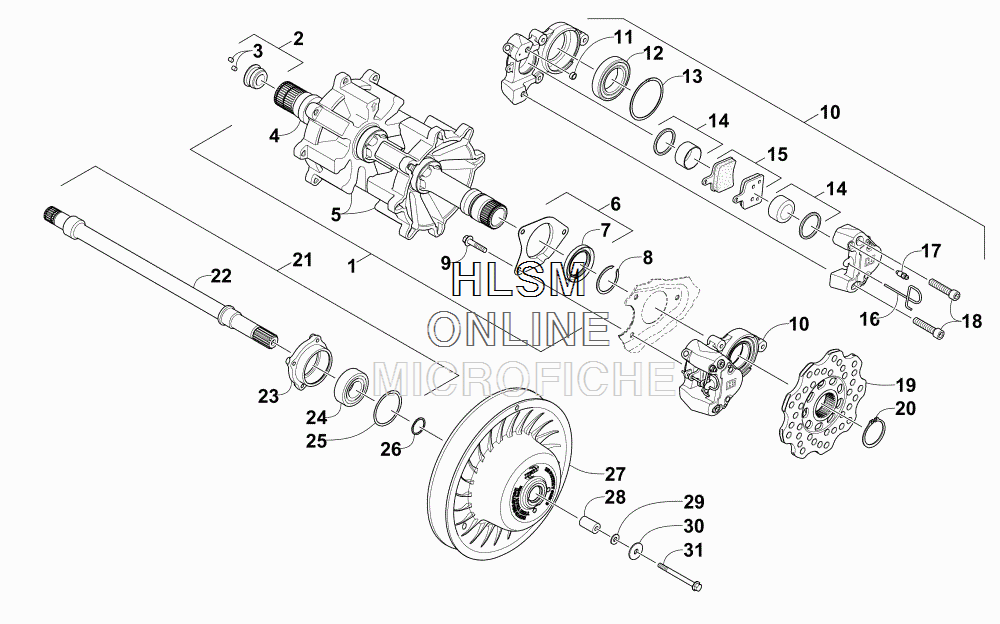

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat ZR 6000 RXC (GREEN) (INTERNATIONAL) [S2015ACDCCOSG] - 2015 года выпуска`
-
№АртикулНазвание
-
10728-233 TRACK, DRIVE - ASSEMBLY (INC. 2-8)TRACK, DRIVE - ASSEMBLY (INC. 2-8)
-
21702-072 ...PLUG, MAGNETIC - ASSEMBLY (INC. 3)...PLUG, MAGNETIC - ASSEMBLY (INC. 3)
-
32602-211 ......MAGNET,.250 X .250......MAGNET,.250 X .250
-
42602-740 ...DRIVESHAFT...DRIVESHAFT
-
52602-755 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
61702-206 ...PLATE, RETAINING - SEAL (INC. 7)...PLATE, RETAINING - SEAL (INC. 7)
-
71602-344 ......SEAL,OIL-45MM X 65MM X 8MM......SEAL,OIL-45MM X 65MM X 8MM
-
82602-233 ...RING, RETAINING...RING, RETAINING
-
98408-831 SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353SCREW,CAP-HFH M8X1.25X30 CL8.8 W/2353
-
102602-866 CALIPER, BRAKE - ASSEMBLY (INC. 11-18)CALIPER, BRAKE - ASSEMBLY (INC. 11-18)
-
112602-411 ...SEAL,CROSSOVER...SEAL,CROSSOVER
-
122602-198 ...BEARING...BEARING
-
132602-280 ...RING, RETAINING...RING, RETAINING
-
142602-643 ...PISTON SET...PISTON SET
-
152602-870 ...PAD, BRAKE - SET (INC. 16)...PAD, BRAKE - SET (INC. 16)
-
162602-409 ......PIN, RETAINING......PIN, RETAINING
-
172602-408 ...FITTING, BLEED...FITTING, BLEED
-
182602-644 ...BOLT,BRAKE CALIPER-1/2"...BOLT,BRAKE CALIPER-1/2"
-
192602-720 DISK,BRAKE-FORGED-34T SPLINED-MACHDISK,BRAKE-FORGED-34T SPLINED-MACH
-
202602-629 RING, RETAININGRING, RETAINING
-
211702-409 SHAFT, DRIVEN - ASSEMBLY (INC. 22-25)SHAFT, DRIVEN - ASSEMBLY (INC. 22-25)
-
232602-422 ...HUB, BEARING...HUB, BEARING
-
242602-247 ...BEARING,30 X 62 X 20 - 2206 -2RS...BEARING,30 X 62 X 20 - 2206 -2RS
-
252602-236 ...RING, RETAINING...RING, RETAINING
-
260616-032 O-RING - WINDSHIELDO-RING - WINDSHIELD
-
270726-374 CLUTCH, DRIVEN - ASSEMBLYCLUTCH, DRIVEN - ASSEMBLY
-
280648-819 SHAFT,STUB-DRIVENSHAFT,STUB-DRIVEN
-
290123-053 WASHER, FLAT 5/16 X 3/4WASHER, FLAT 5/16 X 3/4
-
300123-019 WASHER,FLAT 21/64X1-1/2XWASHER,FLAT 21/64X1-1/2X
-
318408-880 SCREW,CAP-HFH M8X1.25X80 CL8.8 Z & YSCREW,CAP-HFH M8X1.25X80 CL8.8 Z & Y
