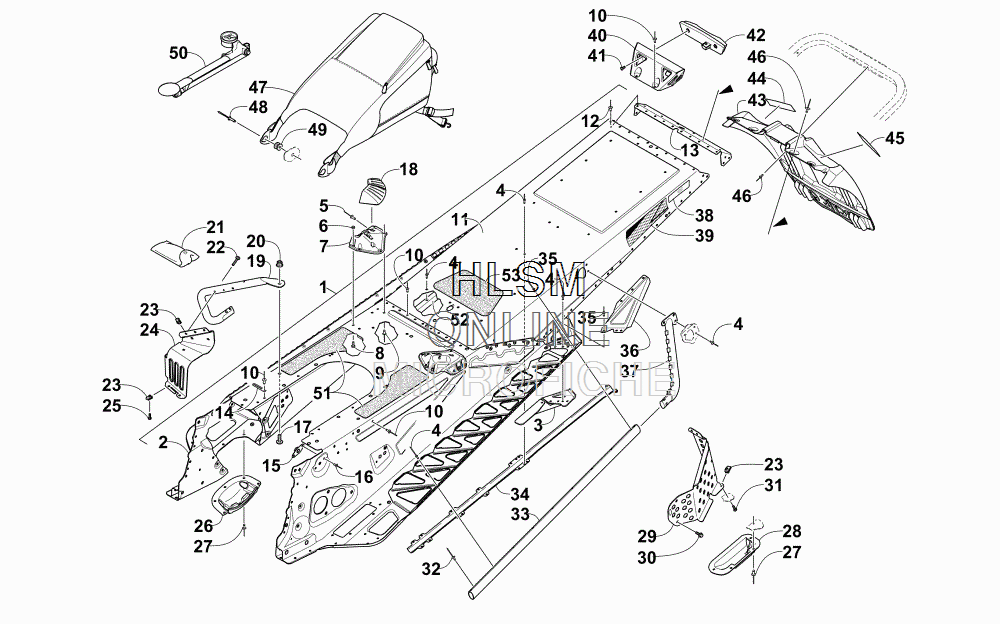

TUNNEL AND SNOWFLAP ASSEMBLY для Arctic Cat XF 7000 CROSS-TOUR 141 (ORANGE) [S2015X7UCTUSO] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    2707-087 COMPLETE CHASSIS ASSEMBLY
    COMPLETE CHASSIS ASSEMBLY
  • 1
    2707-380 TUNNEL, XF7-141-S/P ASSY (INC. 2-13)
    TUNNEL, XF7-141-S/P ASSY (INC. 2-13)
  • 2
    2707-045 ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
    ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
  • 3
    1607-342 ......BRACKET, MOUNTING - SUSPENSION - RIGHT
    ......BRACKET, MOUNTING - SUSPENSION - RIGHT
  • 3
    1607-343 ......BRACKET, MOUNTING - SUSPENSION - LEFT
    ......BRACKET, MOUNTING - SUSPENSION - LEFT
  • 4
    8060-686 ......RIVET, BLIND-DH SS64 ZINC
    ......RIVET, BLIND-DH SS64 ZINC
  • 5
    1623-206 ...RIVET, 3/16 HUCK-M9
    ...RIVET, 3/16 HUCK-M9
  • 6
    8422-502 ...NUT, LOCK
    ...NUT, LOCK
  • 7
    1707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT
    ...BRACKET, MOUNTING - REAR SPAR - RIGHT
  • 7
    1707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT
    ...BRACKET, MOUNTING - REAR SPAR - LEFT
  • 8
    8476-512 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 9
    1623-257 ...RIVET, 3/16 HUCK-M5
    ...RIVET, 3/16 HUCK-M5
  • 10
    8060-682 ...RIVET, BLIND-DH SS62 ZINC
    ...RIVET, BLIND-DH SS62 ZINC
  • 11
    1607-395 ...TUNNEL, REAR-141" -PLAIN
    ...TUNNEL, REAR-141" -PLAIN
  • 12
    8060-484 ...RIVET, BLIND-DH SS53 ZINC
    ...RIVET, BLIND-DH SS53 ZINC
  • 13
    1607-104 ...END CAP, TUNNEL
    ...END CAP, TUNNEL
  • 14
    1623-984 CLAMP, WIRE - 76.14MM LG W/6.25 HOLE
    CLAMP, WIRE - 76.14MM LG W/6.25 HOLE
  • 15
    0608-631 PLATE, RETAINING
    PLATE, RETAINING
  • 16
    8060-688 RIVET, BLIND-DH SS66 ZINC
    RIVET, BLIND-DH SS66 ZINC
  • 17
    8476-820 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    6606-664 SUPPORT, GAS TANK - RIGHT
    SUPPORT, GAS TANK - RIGHT
  • 18
    6606-665 SUPPORT, GAS TANK - LEFT
    SUPPORT, GAS TANK - LEFT
  • 19
    1707-454 SUPPORT, FOOTREST - RIGHT - BLACK
    SUPPORT, FOOTREST - RIGHT - BLACK
  • 19
    1707-455 SUPPORT, FOOTREST - LEFT - BLACK
    SUPPORT, FOOTREST - LEFT - BLACK
  • 20
    8427-802 NUT, LOCK
    NUT, LOCK
  • 21
    0744-064 KIT, TOOL
    KIT, TOOL
  • 22
    8468-535 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 24
    0607-996 FOOTREST - RIGHT
    FOOTREST - RIGHT
  • 24
    0607-997 FOOTREST - LEFT
    FOOTREST - LEFT
  • 25
    8470-516 SCREW, MACHINE
    SCREW, MACHINE
  • 26
    1607-109 PROTECTOR, CHAIN CASE
    PROTECTOR, CHAIN CASE
  • 27
    8061-708 RIVET, BLIND-LF SS66 BLACK
    RIVET, BLIND-LF SS66 BLACK
  • 28
    0607-351 PROTECTOR, BRAKE DISC
    PROTECTOR, BRAKE DISC
  • 29
    1607-371 SHIELD, BRAKE DISC
    SHIELD, BRAKE DISC
  • 30
    8408-613 SCREW, CAP
    SCREW, CAP
  • 31
    8470-520 SCREW, MACHINE
    SCREW, MACHINE
  • 32
    1623-130 RIVET, 3/16 HUCK-M4
    RIVET, 3/16 HUCK-M4
  • 33
    1607-092 ROLL, TUNNEL
    ROLL, TUNNEL
  • 34
    0630-316 PROTECTOR, HARNESS - TAILLIGHT EXTENSION
    PROTECTOR, HARNESS - TAILLIGHT EXTENSION
  • 35
    1623-241 RIVET, 3/16 HUCK-M6
    RIVET, 3/16 HUCK-M6
  • 36
    1607-162 GUSSET, RUNNING BOARD - RIGHT
    GUSSET, RUNNING BOARD - RIGHT
  • 36
    1607-163 GUSSET, RUNNING BOARD - LEFT
    GUSSET, RUNNING BOARD - LEFT
  • 37
    1607-040 GUSSET, TUNNEL ROLL - RIGHT
    GUSSET, TUNNEL ROLL - RIGHT
  • 37
    1607-041 GUSSET, TUNNEL ROLL - LEFT
    GUSSET, TUNNEL ROLL - LEFT
  • 38
    0621-991 DECAL, REFLECTOR - RED
    DECAL, REFLECTOR - RED
  • 39
    1621-568 DECAL, TUNNEL - RIGHT
    DECAL, TUNNEL - RIGHT
  • 39
    1621-569 DECAL, TUNNEL - LEFT
    DECAL, TUNNEL - LEFT
  • 40
    0630-328 HOUSING, TAILLIGHT
    HOUSING, TAILLIGHT
  • 41
    8470-510 SCREW, MACHINE
    SCREW, MACHINE
  • 42
    0609-898 TAILLIGHT, LED
    TAILLIGHT, LED
  • 43
    6606-394 SNOWFLAP
    SNOWFLAP
  • 44
    5611-852 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 45
    5611-853 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 46
    8061-706 RIVET, BLIND-LF SS64 BLACK
    RIVET, BLIND-LF SS64 BLACK
  • 47
    6606-943 SADDLEBAG
    SADDLEBAG
  • 48
    8060-630 RIVET, BLIND-DH AA68 BLK
    RIVET, BLIND-DH AA68 BLK
  • 49
    1623-940 MOUNT, SADDLEBAG
    MOUNT, SADDLEBAG
  • 50
    0641-257 PUMP, FOX FLOAT EVOL DUAL-GAUGE
    PUMP, FOX FLOAT EVOL DUAL-GAUGE
  • 51
    6606-814 PAD, FUEL TANK - RIGHT
    PAD, FUEL TANK - RIGHT
  • 51
    6606-815 PAD, FUEL TANK - LEFT
    PAD, FUEL TANK - LEFT
  • 52
    1607-455 PROTECTOR, TUNNEL
    PROTECTOR, TUNNEL
  • 53
    6606-816 PAD, FUEL TANK - CENTER
    PAD, FUEL TANK - CENTER
