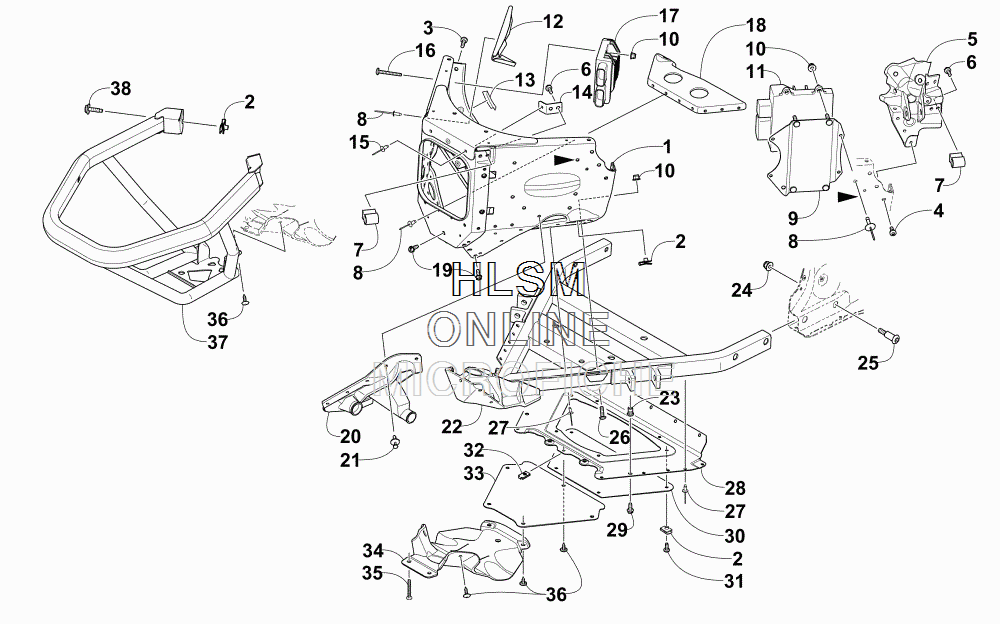

FRONT BUMPER AND FRAME ASSEMBLY для Arctic Cat XF 7000 CROSS-TOUR 141 (ORANGE) [S2015X7UCTUSO] - 2015 года выпуска
-
№АртикулНазвание
-
12707-477 PANEL, FRONT - ASSEMBLY - BLACK (INC. 2-5)PANEL, FRONT - ASSEMBLY - BLACK (INC. 2-5)
-
20423-577 ...CLIP, U-NUT...CLIP, U-NUT
-
31623-683 ...SCREW,TAPTITE-TSPNH M6 X 1 X 20 Z & B...SCREW,TAPTITE-TSPNH M6 X 1 X 20 Z & B
-
40423-538 ...SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z & B...SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z & B
-
51707-668 ...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK
-
51707-669 ...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK
-
68413-617 SCREW, CAPSCREW, CAP
-
71607-233 BRACKET, MOUNTING - UPPER A-ARMBRACKET, MOUNTING - UPPER A-ARM
-
88060-706 RIVET, BLIND-DH SS64 BLKRIVET, BLIND-DH SS64 BLK
-
90745-391 BRACKET, MOUNTING - ECMBRACKET, MOUNTING - ECM
-
108427-602 NUT, LOCKNUT, LOCK
-
110730-237 ECM,PROGRAMMED-Z3-8T/3.0PECM,PROGRAMMED-Z3-8T/3.0P
-
121607-126 BRACKET, STEERING STOPBRACKET, STEERING STOP
-
130706-371 TRIM - 3 FTTRIM - 3 FT
-
141607-561 GUSSET, A-ARM MOUNTING BRACKETGUSSET, A-ARM MOUNTING BRACKET
-
151623-241 RIVET, 3/16 HUCK-M6RIVET, 3/16 HUCK-M6
-
168477-625 SCREW, MACHINESCREW, MACHINE
-
170824-072 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
181607-127 BRACKET, REINFORCEMENTBRACKET, REINFORCEMENT
-
191623-959 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
201605-028 BOOT, STEERING - RIGHTBOOT, STEERING - RIGHT
-
201605-029 BOOT, STEERING - LEFTBOOT, STEERING - LEFT
-
210623-362 RIVET, PLASTIC-REINSTALLABLERIVET, PLASTIC-REINSTALLABLE
-
221707-843 FRAME, LOWER - 4-STROKE - WELDMENTFRAME, LOWER - 4-STROKE - WELDMENT
-
231623-797 INSERT, M5X0.8-AL SERIES ALS4-580-3.3INSERT, M5X0.8-AL SERIES ALS4-580-3.3
-
248427-802 NUT, LOCKNUT, LOCK
-
251623-817 SCREW, SHOULDERSCREW, SHOULDER
-
268468-620 SCREW, MACHINESCREW, MACHINE
-
278060-686 RIVET, BLIND-DH SS64 ZINCRIVET, BLIND-DH SS64 ZINC
-
281607-217 BELLY PAN - CENTERBELLY PAN - CENTER
-
298476-520 SCREW, MACH-TSTRH M5X0.8X20 Z & YSCREW, MACH-TSTRH M5X0.8X20 Z & Y
-
301607-218 COVER, ACCESSCOVER, ACCESS
-
318468-617 SCREW, MACH-TSPNH M6X1.0X16 CL8.8 W/2353SCREW, MACH-TSPNH M6X1.0X16 CL8.8 W/2353
-
321623-052 CLIP, U-NUTCLIP, U-NUT
-
331607-063 PANEL, ACCESSPANEL, ACCESS
-
346606-614 BELLY PAN - FRONTBELLY PAN - FRONT
-
351623-929 SCREW, PLASTITE-TXSPNH 10-14X1 1/2 Z & BSCREW, PLASTITE-TXSPNH 10-14X1 1/2 Z & B
-
361623-129 SCREW, SELF TAP-TXSTRH #10-12X5/8 TP A BLSCREW, SELF TAP-TXSTRH #10-12X5/8 TP A BL
-
371707-530 BUMPER, FRONT - ASSEMBLY - BLACKBUMPER, FRONT - ASSEMBLY - BLACK
-
380423-609 SCREW, MACHINESCREW, MACHINE
