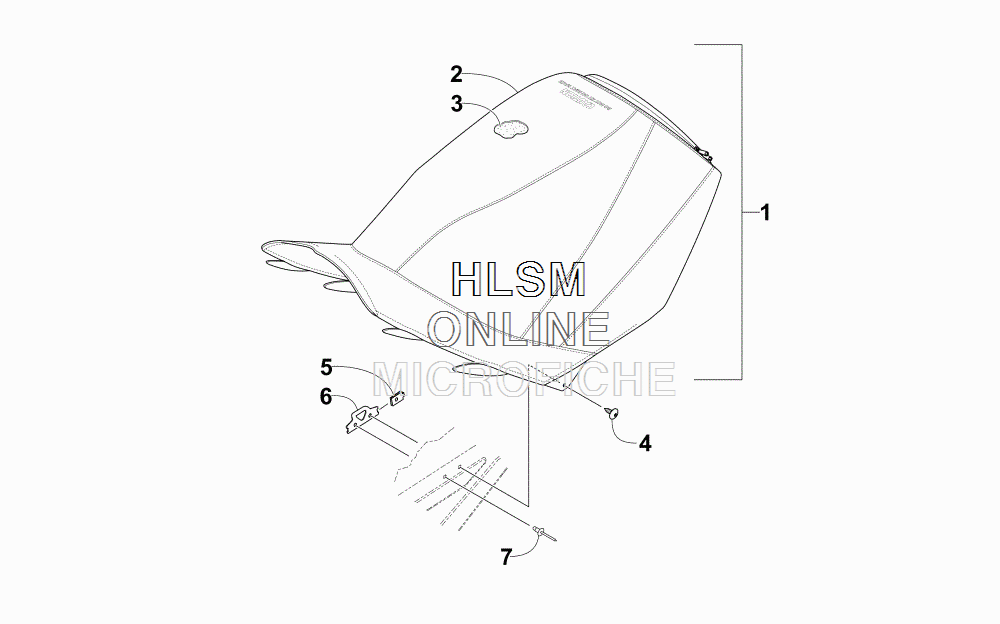

SEAT ASSEMBLY для Arctic Cat M 8000 SNO PRO LTD 162 (GREEN) [S2015M8HPEUSG] - 2015 года выпуска`
-
№АртикулНазвание
-
15706-647 COMPLETE SEAT ASSEMBLY - BLACK (INC. 2-3)COMPLETE SEAT ASSEMBLY - BLACK (INC. 2-3)
-
25706-648 ...COVER, SEAT...COVER, SEAT
-
30717-213 ...FOAM, SEAT...FOAM, SEAT
-
41623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
51623-052 CLIP, U-NUTCLIP, U-NUT
-
66606-704 PLATE, RETAININGPLATE, RETAINING
-
78060-702 RIVET, BLIND-DH SS62 BLKRIVET, BLIND-DH SS62 BLK
