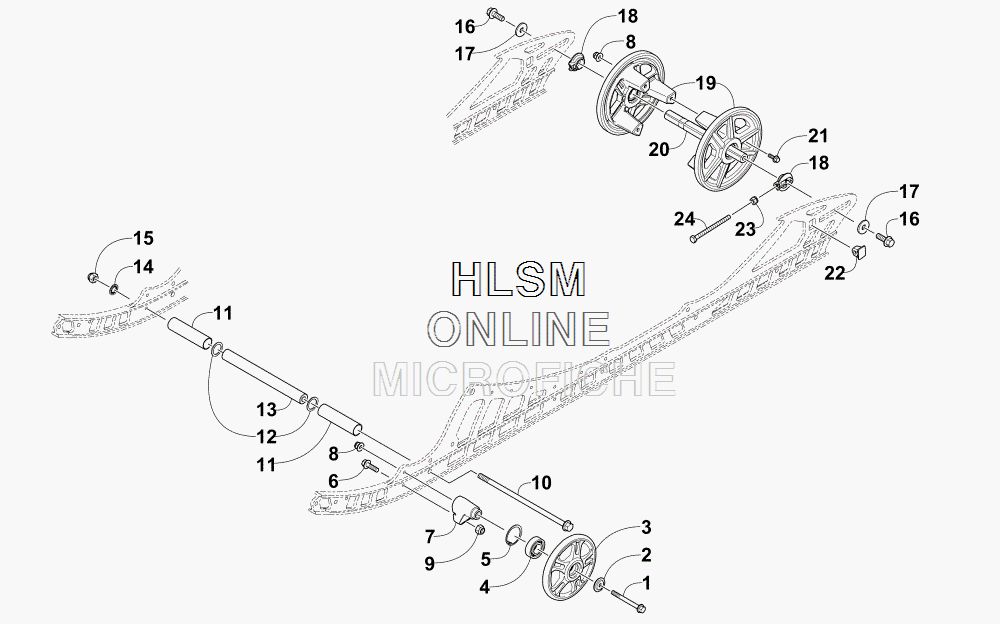

IDLER WHEEL ASSEMBLY для Arctic Cat M 8000 SNO PRO LTD 162 (GREEN) [S2015M8HPEUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    8413-675 SCREW, CAP-HFH M6X1.0X75 CL10.9 SILV
    SCREW, CAP-HFH M6X1.0X75 CL10.9 SILV
  • 2
    2623-025 WASHER
    WASHER
  • 3
    3604-386 WHEEL, IDLER - BLACK (INC. 4-5)
    WHEEL, IDLER - BLACK (INC. 4-5)
  • 4
    3604-033 ...BEARING
    ...BEARING
  • 5
    0623-946 ...RING, RETAINING
    ...RING, RETAINING
  • 6
    8413-620 SCREW, CAP-HFH M6X1.0X20 CL10.9 SILV
    SCREW, CAP-HFH M6X1.0X20 CL10.9 SILV
  • 7
    3604-899 BLOCK, MOUNTING - IDLER WHEEL
    BLOCK, MOUNTING - IDLER WHEEL
  • 8
    8427-602 NUT, HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT, HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 9
    8422-602 NUT, HEX-THK NYL M6X1.00 CL8 Z & Y
    NUT, HEX-THK NYL M6X1.00 CL8 Z & Y
  • 10
    1423-064 SCREW, CAP
    SCREW, CAP
  • 11
    3604-083 SPACER
    SPACER
  • 12
    0623-912 WASHER, FLAT - 0.890 X 1.19 X 0.060 Z & Y
    WASHER, FLAT - 0.890 X 1.19 X 0.060 Z & Y
  • 13
    3604-269 AXLE
    AXLE
  • 14
    1623-992 WASHER, INTERNAL TOOTH LOCK
    WASHER, INTERNAL TOOTH LOCK
  • 15
    8422-002 NUT, LOCK
    NUT, LOCK
  • 16
    8408-031 SCREW, CAP-HFH M10X1.25X30 CL8.8 W/2353
    SCREW, CAP-HFH M10X1.25X30 CL8.8 W/2353
  • 17
    1623-931 WASHER, FLAT
    WASHER, FLAT
  • 18
    3604-641 BUSHING, ADJUSTER
    BUSHING, ADJUSTER
  • 19
    4604-137 WHEEL, IDLER - TRI-HUB - 8.00 W/0.787 ID
    WHEEL, IDLER - TRI-HUB - 8.00 W/0.787 ID
  • 20
    3604-640 AXLE, REAR
    AXLE, REAR
  • 21
    8408-620 SCREW, CAP-HFH M6X1.0X20 CL8.8 Z & Y
    SCREW, CAP-HFH M6X1.0X20 CL8.8 Z & Y
  • 22
    3604-647 ADJUSTER, TRACK
    ADJUSTER, TRACK
  • 23
    8422-802 NUT, LOCK
    NUT, LOCK
  • 24
    1623-682 SCREW, CAP-HH-M8 X 1.25 X 100 Z & Y
    SCREW, CAP-HH-M8 X 1.25 X 100 Z & Y
