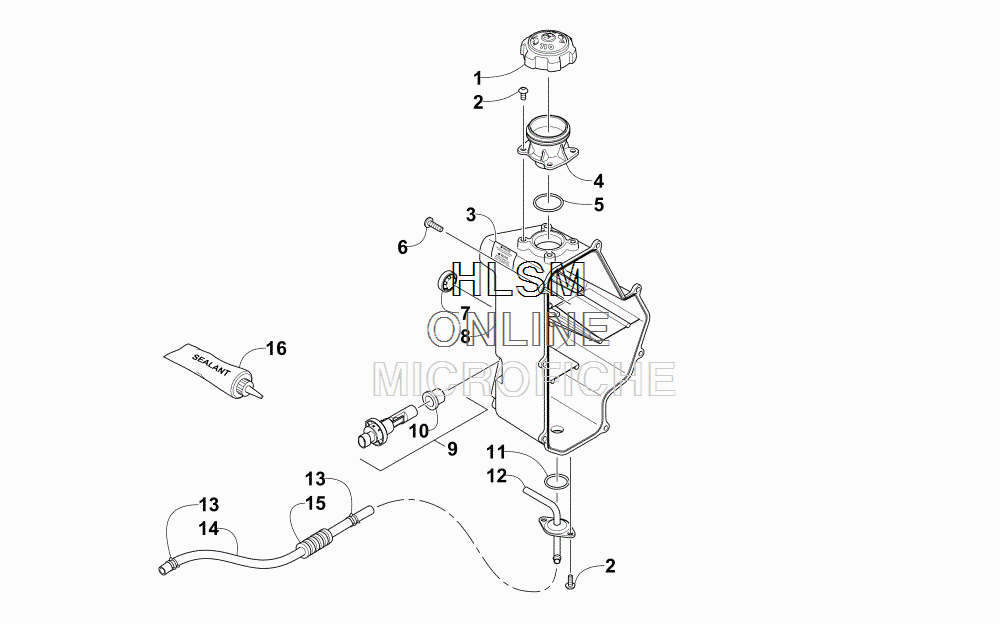

OIL TANK ASSEMBLY для Arctic Cat M 8000 SNO PRO LTD 162 (GREEN) [S2015M8HPEUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2670-447 CAP, OIL TANK
    CAP, OIL TANK
  • 2
    1623-969 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    4611-532 DECAL, OIL TANK
    DECAL, OIL TANK
  • 4
    2670-329 NECK, OIL FILL
    NECK, OIL FILL
  • 5
    1623-972 O-RING
    O-RING
  • 6
    1623-814 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    2670-257 GLASS, SIGHT
    GLASS, SIGHT
  • 8
    1770-019 TANK, OIL
    TANK, OIL
  • 9
    0609-915 SWITCH, LEVEL-OIL (INC. 10)
    SWITCH, LEVEL-OIL (INC. 10)
  • 10
    0609-924 ...GROMMET
    ...GROMMET
  • 11
    0648-441 O-RING
    O-RING
  • 12
    2670-229 FITTING, OUTLET
    FITTING, OUTLET
  • 13
    1623-042 CLAMP, 10MM
    CLAMP, 10MM
  • 14
    0610-692 HOSE, OIL/WATER - 25 FT
    HOSE, OIL/WATER - 25 FT
  • 14
    0610-693 HOSE, OIL - 100 FT
    HOSE, OIL - 100 FT
  • 15
    1619-345 LOOM, HIGH TEMP-3/8" X 3 - CTL
    LOOM, HIGH TEMP-3/8" X 3 - CTL
  • 16
    1048-063 LOCTITE, 5699-GASKET MAKER (70ML)
    LOCTITE, 5699-GASKET MAKER (70ML)
