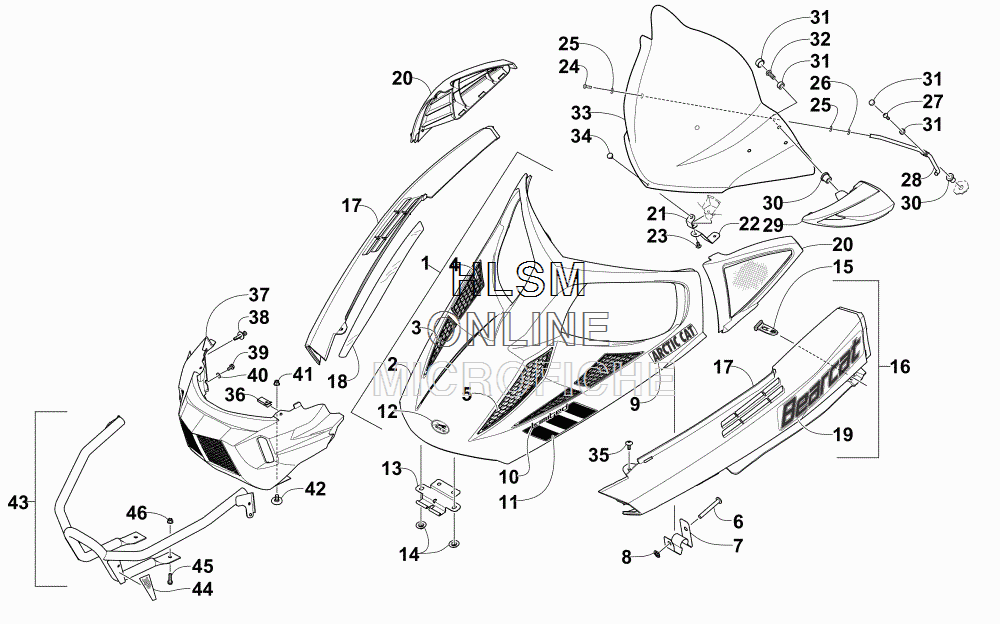

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat BEARCAT 5000 XT LTD (BLACK) [S2015BCNWLUSB] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-136 HOOD W/DECALS - (BLACK) (INC. 2-12)
    HOOD W/DECALS - (BLACK) (INC. 2-12)
  • 2
    7901-316 ...HOOD W/O DECALS - (BLACK) (INC. 3-8)
    ...HOOD W/O DECALS - (BLACK) (INC. 3-8)
  • 3
    4606-624 ......VENT, HOOD - OUTER FRONT - RIGHT - (BLACK)
    ......VENT, HOOD - OUTER FRONT - RIGHT - (BLACK)
  • 3
    4606-625 ......VENT, HOOD - OUTER FRONT - LEFT - (BLACK)
    ......VENT, HOOD - OUTER FRONT - LEFT - (BLACK)
  • 4
    4606-640 ......VENT, HOOD - OUTER REAR - RIGHT - (BLACK)
    ......VENT, HOOD - OUTER REAR - RIGHT - (BLACK)
  • 4
    4606-641 ......VENT, HOOD - OUTER REAR - LEFT - (BLACK)
    ......VENT, HOOD - OUTER REAR - LEFT - (BLACK)
  • 5
    4606-614 ......VENT,HOOD LID-INNER-RH-MOLD (BLACK)
    ......VENT,HOOD LID-INNER-RH-MOLD (BLACK)
  • 5
    4606-615 ......VENT,HOOD LID-INNER-LH-MOLD (BLACK)
    ......VENT,HOOD LID-INNER-LH-MOLD (BLACK)
  • 6
    1623-610 ......PIN, RETAINING
    ......PIN, RETAINING
  • 7
    5706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT
    ......CLIP, HOOD HOLD-DOWN - RIGHT
  • 7
    5706-085 ......CLIP, HOOD HOLD-DOWN - LEFT
    ......CLIP, HOOD HOLD-DOWN - LEFT
  • 8
    1623-409 ......NUT, PUSH
    ......NUT, PUSH
  • 9
    1621-237 ...DECAL, "ARCTIC CAT"
    ...DECAL, "ARCTIC CAT"
  • 10
    9611-796 ...DECAL, "LIMITED"
    ...DECAL, "LIMITED"
  • 11
    1621-254 ...DECAL, HOOD - RIGHT
    ...DECAL, HOOD - RIGHT
  • 11
    1621-255 ...DECAL, HOOD - LEFT
    ...DECAL, HOOD - LEFT
  • 12
    9611-751 ...DECAL, "ARCTIC CAT"
    ...DECAL, "ARCTIC CAT"
  • 13
    6606-027 BRACKET, HINGE
    BRACKET, HINGE
  • 14
    1623-469 NUT, STAMPED
    NUT, STAMPED
  • 15
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 16
    4718-138 SPAR, FRONT W/DECALS - RIGHT - (BLACK) (INC. 17-19)
    SPAR, FRONT W/DECALS - RIGHT - (BLACK) (INC. 17-19)
  • 17
    4718-137 ...SPAR, FRONT W/O DECALS - RIGHT - (BLACK)
    ...SPAR, FRONT W/O DECALS - RIGHT - (BLACK)
  • 18
    4606-934 ...FOIL, SPAR - RIGHT
    ...FOIL, SPAR - RIGHT
  • 19
    1621-256 ......DECAL, FRONT SPAR
    ......DECAL, FRONT SPAR
  • 16
    4718-139 SPAR, FRONT W/DECALS - LEFT - (BLACK) (INC. 17 AND 19)
    SPAR, FRONT W/DECALS - LEFT - (BLACK) (INC. 17 AND 19)
  • 17
    5706-777 ...SPAR, FRONT W/O DECALS - LEFT - (BLACK)
    ...SPAR, FRONT W/O DECALS - LEFT - (BLACK)
  • 20
    4706-996 BEZEL, INTAKE - RIGHT -(BLACK)
    BEZEL, INTAKE - RIGHT -(BLACK)
  • 20
    4706-997 BEZEL, INTAKE - LEFT - (BLACK)
    BEZEL, INTAKE - LEFT - (BLACK)
  • 21
    4606-961 BRACKET, WINDSHIELD - HOLD-DOWN
    BRACKET, WINDSHIELD - HOLD-DOWN
  • 22
    5606-277 BRACKET, WINDSHIELD
    BRACKET, WINDSHIELD
  • 23
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 24
    1623-902 SCREW, MACHINE
    SCREW, MACHINE
  • 25
    1623-837 WASHER, RUBBER
    WASHER, RUBBER
  • 26
    8050-242 WASHER
    WASHER
  • 27
    0623-121 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    5706-073 SUPPORT, WINDSHIELD
    SUPPORT, WINDSHIELD
  • 29
    6639-629 MIRROR KIT - SINGLE (INC. 30-32)
    MIRROR KIT - SINGLE (INC. 30-32)
  • 30
    0623-845 ...NUT, EXPANSION
    ...NUT, EXPANSION
  • 31
    0124-054 ...CAP, SNAP W/ WASHER
    ...CAP, SNAP W/ WASHER
  • 32
    0623-902 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 33
    6606-263 WINDSHIELD
    WINDSHIELD
  • 34
    1623-677 RIVET, PLASTIC
    RIVET, PLASTIC
  • 35
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 36
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 37
    5706-775 FASCIA, FRONT - PAINTED (METALLIC BLACK)
    FASCIA, FRONT - PAINTED (METALLIC BLACK)
  • 38
    0623-362 CLIP, RETAINING
    CLIP, RETAINING
  • 39
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 40
    8053-242 WASHER, EXTERNAL TOOTH LOCK - 5/16
    WASHER, EXTERNAL TOOTH LOCK - 5/16
  • 41
    8427-602 NUT, LOCK
    NUT, LOCK
  • 42
    1623-775 SCREW, SHOULDER
    SCREW, SHOULDER
  • 43
    4706-961 BUMPER, FRONT - (BLACK) (INC. 44)
    BUMPER, FRONT - (BLACK) (INC. 44)
  • 44
    9611-386 ...DECAL, REFLECTOR - RIGHT - (AMBER)
    ...DECAL, REFLECTOR - RIGHT - (AMBER)
  • 44
    9611-387 ...DECAL, REFLECTOR - LEFT - (AMBER)
    ...DECAL, REFLECTOR - LEFT - (AMBER)
  • 45
    8408-025 SCREW, CAP
    SCREW, CAP
  • 46
    8427-002 NUT, LOCK
    NUT, LOCK
