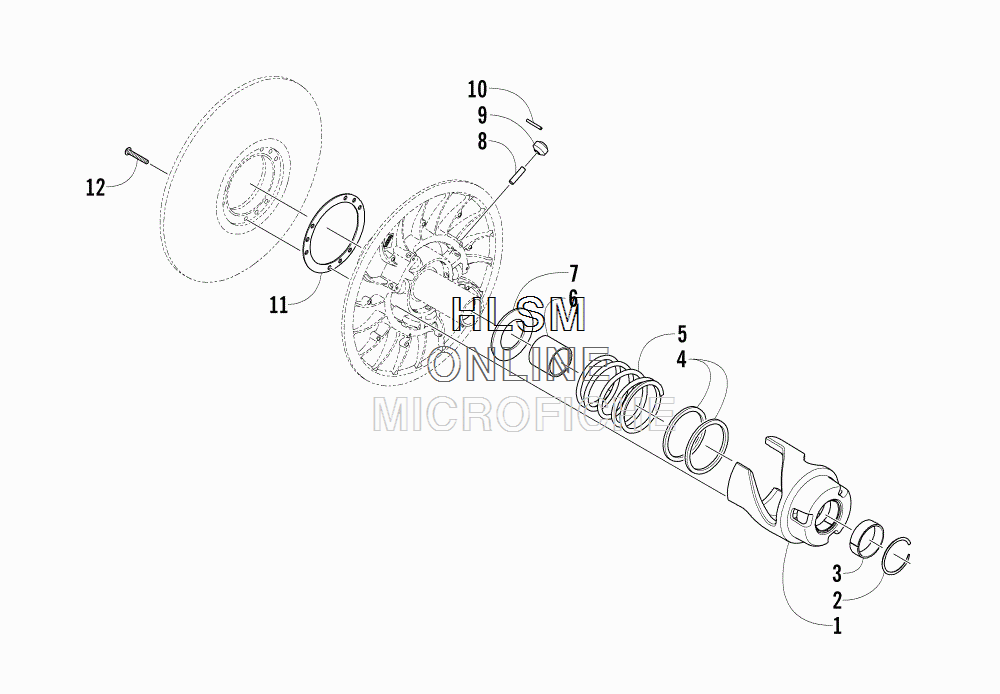

DRIVEN CLUTCH для Arctic Cat BEARCAT 5000 XT LTD (BLACK) [S2015BCNWLUSB] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    0726-301 CLUTCH, DRIVEN - ASSEMBLY
    CLUTCH, DRIVEN - ASSEMBLY
  • 1
    0748-662 BRACKET, TORQUE 36° (INC. 2-3)
    BRACKET, TORQUE 36° (INC. 2-3)
  • 2
    0648-433 ...RING, SNAP
    ...RING, SNAP
  • 3
    0648-009 ...BEARING,DRIVEN CLUTCH
    ...BEARING,DRIVEN CLUTCH
  • 4
    0648-713 SEAT, SPRING
    SEAT, SPRING
  • 5
    0648-774 SPRING, DRIVEN CLUTCH (ORANGE)
    SPRING, DRIVEN CLUTCH (ORANGE)
  • 6
    0648-806 SPACER
    SPACER
  • 7
    0648-453 SEAT,SPRING-DRVN
    SEAT,SPRING-DRVN
  • 8
    0648-097 PIN, ROLLER BEARING
    PIN, ROLLER BEARING
  • 9
    0648-139 ROLLER, CAM
    ROLLER, CAM
  • 10
    8070-224 PIN, SPRING
    PIN, SPRING
  • 11
    0637-322 UPDATE KIT,TORQUE BRACKET RETAINER (INC. 12)
    UPDATE KIT,TORQUE BRACKET RETAINER (INC. 12)
  • 12
    1623-517 ...SCREW, MACHINE
    ...SCREW, MACHINE
