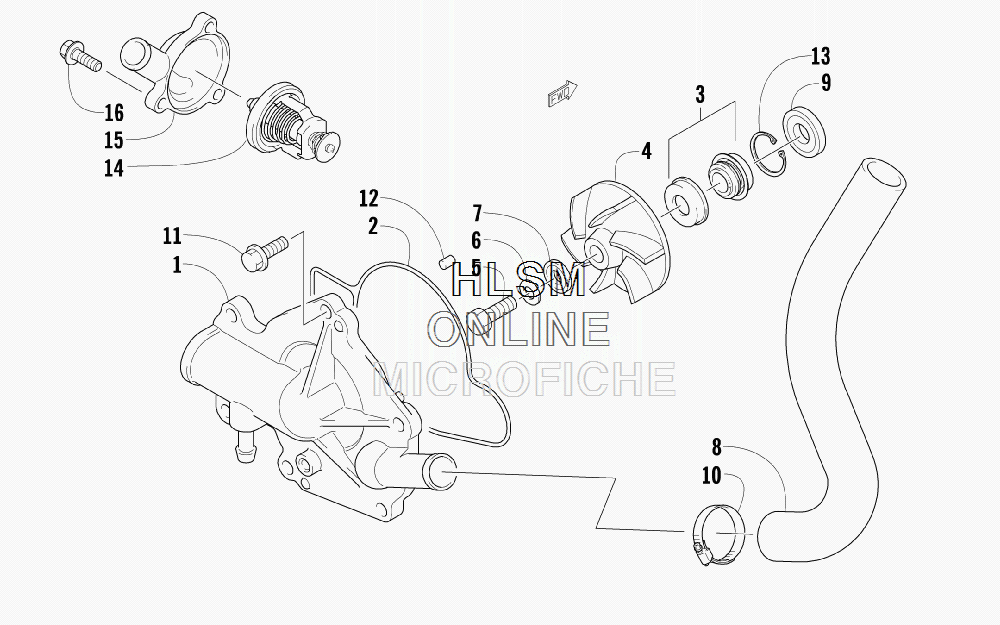

WATER PUMP AND THERMOSTAT для Arctic Cat SNO PRO 600 - 2012 года выпуска`
-
№АртикулНазвание
-
13006-942 COVER ASSY., WATER PUMPCOVER ASSY., WATER PUMP
-
23006-356 O-RINGO-RING
-
33007-180 SEALSEAL
-
43005-697 IMPELLERIMPELLER
-
53003-426 SCREW, CAPSCREW, CAP
-
63003-431 WASHERWASHER
-
73003-432 GASKETGASKET
-
83007-743 HOSE, INLETHOSE, INLET
-
93007-431 SEAL, OILSEAL, OIL
-
103006-324 CLAMP, HOSECLAMP, HOSE
-
113007-409 BOLTBOLT
-
123005-899 PIN, DOWELPIN, DOWEL
-
133004-009 RING, SNAPRING, SNAP
-
143007-041 THERMOSTATTHERMOSTAT
-
153006-914 CAP, THERMOSTATCAP, THERMOSTAT
-
163007-446 BOLTBOLT
