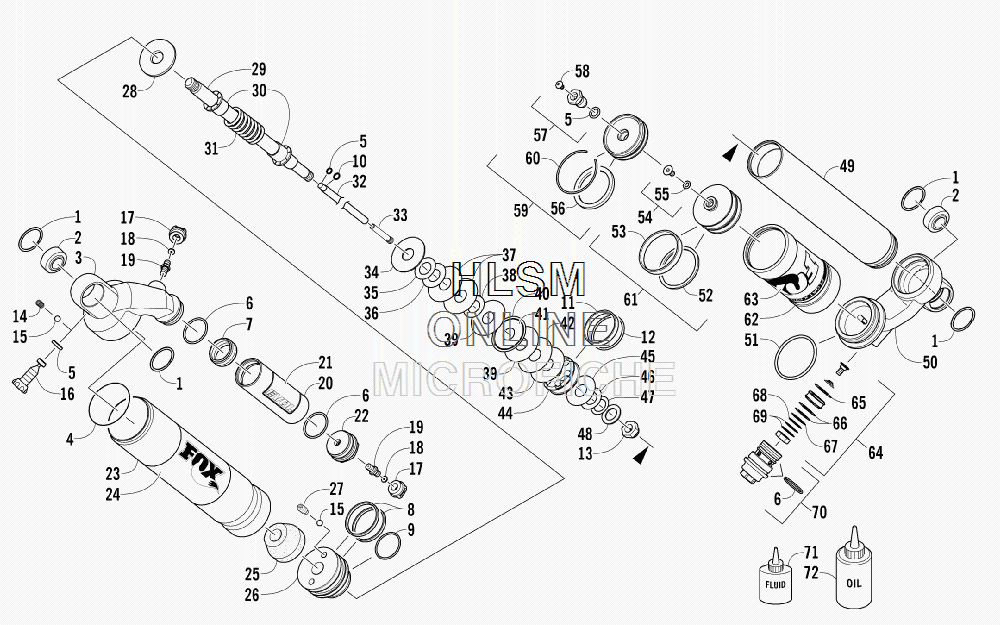

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat SNO PRO 600 - 2012 года выпуска

  • №
    Артикул
    Название
  • -
    2703-900 COMPLETE SHOCK ABSORBER - RIGHT
    COMPLETE SHOCK ABSORBER - RIGHT
  • -
    2703-901 COMPLETE SHOCK ABSORBER - LEFT
    COMPLETE SHOCK ABSORBER - LEFT
  • 1
    3604-147 RING, RETAINING
    RING, RETAINING
  • 2
    1604-664 BEARING
    BEARING
  • 3
    2603-027 END CAP, SHOCK - RIGHT
    END CAP, SHOCK - RIGHT
  • 3
    2603-026 END CAP, SHOCK - LEFT
    END CAP, SHOCK - LEFT
  • 4
    2603-929 KIT, SEAL/BEARING REBUILD (INC. 5-13)
    KIT, SEAL/BEARING REBUILD (INC. 5-13)
  • 5
    1604-318 ...O-RING
    ...O-RING
  • 6
    2603-502 ...O-RING
    ...O-RING
  • 7
    3604-653 ...PISTON, INTERNAL FLOATING
    ...PISTON, INTERNAL FLOATING
  • 8
    2603-863 ...STRAP, TEFLON
    ...STRAP, TEFLON
  • 9
    1604-420 ...O-RING
    ...O-RING
  • 10
    3603-011 ...O-RING
    ...O-RING
  • 11
    2603-994 ...STRAP, PISTON
    ...STRAP, PISTON
  • 12
    3603-010 ...O-RING
    ...O-RING
  • 13
    0603-301 ...NUT
    ...NUT
  • 14
    2603-529 SPRING
    SPRING
  • 15
    1604-315 BALL, BLEED
    BALL, BLEED
  • 16
    3603-004 KNOB, DAMPING ADJUSTER
    KNOB, DAMPING ADJUSTER
  • 17
    2603-980 CAP, AIR VALVE
    CAP, AIR VALVE
  • 18
    2603-965 SEAL
    SEAL
  • 19
    2603-511 VALVE, AIR
    VALVE, AIR
  • 20
    3603-002 RESERVOIR
    RESERVOIR
  • 21
    2603-958 DECAL, RESERVOIR
    DECAL, RESERVOIR
  • 22
    2603-966 END CAP, RESERVOIR
    END CAP, RESERVOIR
  • 23
    2603-028 BODY, SHOCK - UPPER
    BODY, SHOCK - UPPER
  • 24
    3603-006 DECAL, SHOCK
    DECAL, SHOCK
  • 25
    3603-005 BUMPER, SHOCK
    BUMPER, SHOCK
  • 26
    2603-023 BEARING - ASSEMBLY
    BEARING - ASSEMBLY
  • 27
    1603-940 SCREW, SET
    SCREW, SET
  • 28
    3603-008 SPACER
    SPACER
  • 29
    2603-029 ROD, SHOCK
    ROD, SHOCK
  • 30
    2603-522 GUIDE, SPRING
    GUIDE, SPRING
  • 31
    2603-024 SPRING
    SPRING
  • 32
    3603-001 ROD, DAMPING ADJUSTER
    ROD, DAMPING ADJUSTER
  • 33
    2603-943 VALVE, CHECK - ASSEMBLY
    VALVE, CHECK - ASSEMBLY
  • 34
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 35
    0603-887 VALVE, 1.000 X 0.015 IN.
    VALVE, 1.000 X 0.015 IN.
  • 36
    0603-347 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 37
    0603-891 VALVE, 1.300 X 0.012 IN.
    VALVE, 1.300 X 0.012 IN.
  • 38
    0603-895 VALVE, 0.800 X 0.004 IN.
    VALVE, 0.800 X 0.004 IN.
  • 39
    0603-350 VALVE, 1.300 X 0.010 IN.
    VALVE, 1.300 X 0.010 IN.
  • 40
    3603-009 VALVE, RING - 1.250 X 0.015 IN.
    VALVE, RING - 1.250 X 0.015 IN.
  • 41
    0603-882 VALVE, 1.100 X 0.012 IN.
    VALVE, 1.100 X 0.012 IN.
  • 42
    0603-349 VALVE, 1.300 X 0.008 IN.
    VALVE, 1.300 X 0.008 IN.
  • 43
    0603-348 VALVE, 1.300 X 0.006 IN.
    VALVE, 1.300 X 0.006 IN.
  • 44
    2603-987 PISTON, HIGH FLOW
    PISTON, HIGH FLOW
  • 45
    0603-343 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 46
    3604-171 VALVE, 0.600 X 0.004 IN.
    VALVE, 0.600 X 0.004 IN.
  • 47
    0603-333 VALVE, 0.800 X 0.006 IN.
    VALVE, 0.800 X 0.006 IN.
  • 48
    3604-170 WASHER, TOP OUT
    WASHER, TOP OUT
  • 49
    2603-022 BODY, SHOCK - LOWER
    BODY, SHOCK - LOWER
  • 50
    2603-021 END CAP, SHOCK/RESERVOIR
    END CAP, SHOCK/RESERVOIR
  • 51
    3604-539 KIT, REBUILD - RESERVOIR (INC. ONE NO. 5-6 AND 52-58)
    KIT, REBUILD - RESERVOIR (INC. ONE NO. 5-6 AND 52-58)
  • 52
    1603-236 ...O-RING
    ...O-RING
  • 53
    1603-235 ...STRAP, PISTON
    ...STRAP, PISTON
  • 54
    1604-316 ...SCREW, MACHINE W/O-RING (INC. 55)
    ...SCREW, MACHINE W/O-RING (INC. 55)
  • 55
    1604-425 ......O-RING
    ......O-RING
  • 56
    0603-671 ...O-RING
    ...O-RING
  • 57
    0703-341 ...VALVE, PRESSURE - ASSEMBLY (INC. ONE NO. 5)
    ...VALVE, PRESSURE - ASSEMBLY (INC. ONE NO. 5)
  • 58
    0624-097 ...SCREW, VALVE
    ...SCREW, VALVE
  • 59
    2603-525 END CAP, RESERVOIR (INC. ONE NO. 5 AND 56-57)
    END CAP, RESERVOIR (INC. ONE NO. 5 AND 56-57)
  • 60
    0604-992 RING, RETAINING
    RING, RETAINING
  • 61
    3604-524 PISTON, INTERNAL FLOATING (INC. 52-55)
    PISTON, INTERNAL FLOATING (INC. 52-55)
  • 62
    2603-515 RESERVOIR
    RESERVOIR
  • 63
    3603-007 DECAL, RESERVOIR
    DECAL, RESERVOIR
  • 64
    3603-003 PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 65-69)
    PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 65-69)
  • 65
    0603-331 ...VALVE, 0.700 X 0.008 IN.
    ...VALVE, 0.700 X 0.008 IN.
  • 66
    2603-501 ...VALVE, 0.700 X 0.010 IN.
    ...VALVE, 0.700 X 0.010 IN.
  • 67
    2603-500 ...VALVE, 0.600 X 0.010 IN.
    ...VALVE, 0.600 X 0.010 IN.
  • 68
    2603-499 ...VALVE, 0.500 X 0.006 IN.
    ...VALVE, 0.500 X 0.006 IN.
  • 69
    3604-165 ...PLATE, BACKUP
    ...PLATE, BACKUP
  • 70
    2603-527 CARTRIDGE, DAMPING ADJUSTER (INC. 6)
    CARTRIDGE, DAMPING ADJUSTER (INC. 6)
  • 71
    4639-012 FLUID, FLOAT SHOCK - 8 OZ
    FLUID, FLOAT SHOCK - 8 OZ
  • 72
    5639-240 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
