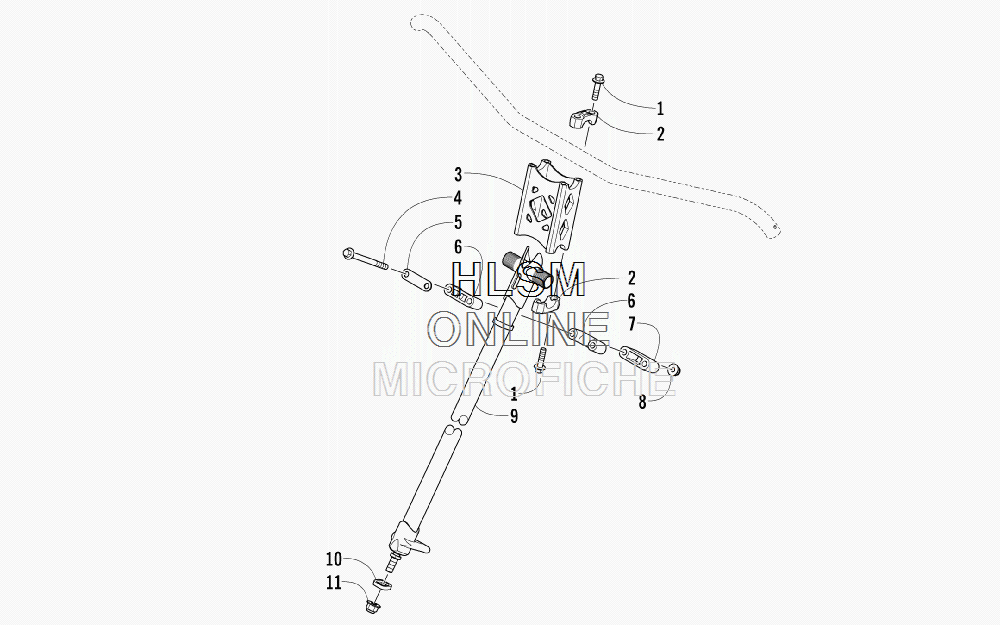

STEERING POST ASSEMBLY для Arctic Cat SNO PRO 600 - 2012 года выпуска
-
№АртикулНазвание
-
18408-830 SCREW, CAPSCREW, CAP
-
21605-041 CAP, RISER BLOCKCAP, RISER BLOCK
-
31605-035 BLOCK, RISERBLOCK, RISER
-
48408-800 SCREW, CAPSCREW, CAP
-
50605-722 PLATE, RETAININGPLATE, RETAINING
-
60605-576 BLOCK, MOUNTING - STEERING POSTBLOCK, MOUNTING - STEERING POST
-
71605-092 STAND-OFF, MOUNTING BLOCKSTAND-OFF, MOUNTING BLOCK
-
88427-802 NUT, LOCKNUT, LOCK
-
91705-416 POST, STEERINGPOST, STEERING
-
101605-089 SPACERSPACER
-
118427-002 NUT, LOCKNUT, LOCK
