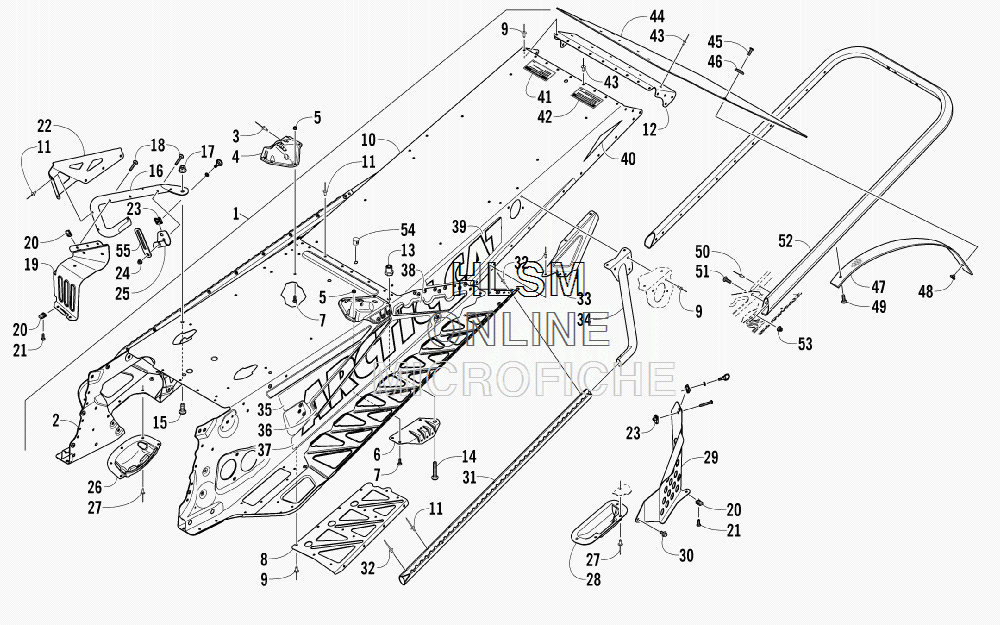

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat SNO PRO 600 (INTERNATONAL) - 2012 года выпуска

  • №
    Артикул
    Название
  • -
    1707-677 COMPLETE CHASSIS ASSEMBLY - GREEN
    COMPLETE CHASSIS ASSEMBLY - GREEN
  • 1
    1707-768 TUNNEL ASSEMBLY - GREEN (INC. 2-12)
    TUNNEL ASSEMBLY - GREEN (INC. 2-12)
  • 2
    1707-766 ...TUNNEL, FRONT - ASSEMBLY - GREEN
    ...TUNNEL, FRONT - ASSEMBLY - GREEN
  • 3
    1623-206 ...RIVET
    ...RIVET
  • 4
    1707-736 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN
    ...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN
  • 4
    1707-737 ...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN
    ...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN
  • 5
    8422-502 ...NUT, LOCK
    ...NUT, LOCK
  • 6
    1707-760 ...PLATE, BACKING - RIGHT - GREEN
    ...PLATE, BACKING - RIGHT - GREEN
  • 6
    1707-761 ...PLATE, BACKING - LEFT - GREEN
    ...PLATE, BACKING - LEFT - GREEN
  • 7
    8476-512 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 8
    1707-732 ...SUPPORT, RUNNING BOARD - RIGHT - GREEN
    ...SUPPORT, RUNNING BOARD - RIGHT - GREEN
  • 8
    1707-733 ...SUPPORT, RUNNING BOARD - LEFT - GREEN
    ...SUPPORT, RUNNING BOARD - LEFT - GREEN
  • 9
    8060-682 ...RIVET
    ...RIVET
  • 10
    1707-729 ...TUNNEL, REAR - GREEN
    ...TUNNEL, REAR - GREEN
  • 11
    1623-130 ...RIVET
    ...RIVET
  • 12
    1707-405 ...END CAP, TUNNEL - GREEN
    ...END CAP, TUNNEL - GREEN
  • 13
    2704-301 STAND-OFF, GAS TANK - GREEN
    STAND-OFF, GAS TANK - GREEN
  • 14
    8468-850 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    8476-820 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    1707-636 SUPPORT, FOOTREST - RIGHT - BLACK
    SUPPORT, FOOTREST - RIGHT - BLACK
  • 16
    1707-637 SUPPORT, FOOTREST - LEFT - BLACK
    SUPPORT, FOOTREST - LEFT - BLACK
  • 17
    8427-802 NUT, LOCK
    NUT, LOCK
  • 18
    8468-536 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    1707-556 FOOTREST - RIGHT - BLACK
    FOOTREST - RIGHT - BLACK
  • 19
    1707-557 FOOTREST - LEFT - BLACK
    FOOTREST - LEFT - BLACK
  • 20
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 21
    8470-516 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    1707-634 GUSSET, FOOTREST - RIGHT - BLACK
    GUSSET, FOOTREST - RIGHT - BLACK
  • 22
    1707-635 GUSSET, FOOTREST - LEFT - BLACK
    GUSSET, FOOTREST - LEFT - BLACK
  • 23
    1623-748 CLIP, RETAINING
    CLIP, RETAINING
  • 24
    8427-502 NUT, LOCK
    NUT, LOCK
  • 25
    6606-350 BRACKET, MOUNTING - SIDE PANEL
    BRACKET, MOUNTING - SIDE PANEL
  • 26
    1607-109 PROTECTOR, CHAIN CASE
    PROTECTOR, CHAIN CASE
  • 27
    8061-708 RIVET
    RIVET
  • 28
    0607-351 PROTECTOR, BRAKE DISC
    PROTECTOR, BRAKE DISC
  • 29
    1707-778 SHIELD, BRAKE DISC - BLACK
    SHIELD, BRAKE DISC - BLACK
  • 30
    8408-613 SCREW, CAP
    SCREW, CAP
  • 31
    1707-730 ROLL, TUNNEL - RIGHT - GREEN
    ROLL, TUNNEL - RIGHT - GREEN
  • 31
    1707-731 ROLL, TUNNEL - LEFT - GREEN
    ROLL, TUNNEL - LEFT - GREEN
  • 32
    1623-241 RIVET
    RIVET
  • 33
    1707-734 GUSSET, RUNNING BOARD - RIGHT - GREEN
    GUSSET, RUNNING BOARD - RIGHT - GREEN
  • 33
    1707-735 GUSSET, RUNNING BOARD - LEFT - GREEN
    GUSSET, RUNNING BOARD - LEFT - GREEN
  • 34
    1707-774 GUSSET, TUNNEL ROLL - RIGHT - GREEN
    GUSSET, TUNNEL ROLL - RIGHT - GREEN
  • 34
    1707-775 GUSSET, TUNNEL ROLL - LEFT - GREEN
    GUSSET, TUNNEL ROLL - LEFT - GREEN
  • 35
    0621-194 DECAL, TUNNEL - UPPER FRONT - RIGHT - WHITE
    DECAL, TUNNEL - UPPER FRONT - RIGHT - WHITE
  • 35
    0621-121 DECAL, TUNNEL - UPPER FRONT - LEFT - GREEN
    DECAL, TUNNEL - UPPER FRONT - LEFT - GREEN
  • 36
    0621-192 DECAL, TUNNEL - CENTER FRONT - RIGHT - WHITE
    DECAL, TUNNEL - CENTER FRONT - RIGHT - WHITE
  • 36
    0621-119 DECAL, TUNNEL - CENTER FRONT - LEFT - GREEN
    DECAL, TUNNEL - CENTER FRONT - LEFT - GREEN
  • 37
    0621-190 DECAL, TUNNEL - LOWER FRONT - RIGHT - WHITE
    DECAL, TUNNEL - LOWER FRONT - RIGHT - WHITE
  • 37
    0621-117 DECAL, TUNNEL - LOWER FRONT - LEFT - GREEN
    DECAL, TUNNEL - LOWER FRONT - LEFT - GREEN
  • 38
    0621-188 DECAL, TUNNEL - CENTER - RIGHT - WHITE
    DECAL, TUNNEL - CENTER - RIGHT - WHITE
  • 38
    0621-115 DECAL, TUNNEL - CENTER - LEFT - GREEN
    DECAL, TUNNEL - CENTER - LEFT - GREEN
  • 39
    0621-186 DECAL, TUNNEL - REAR - RIGHT - WHITE
    DECAL, TUNNEL - REAR - RIGHT - WHITE
  • 39
    0621-113 DECAL, TUNNEL - REAR - LEFT - GREEN
    DECAL, TUNNEL - REAR - LEFT - GREEN
  • 40
    9611-512 DECAL, REFLECTOR - RED
    DECAL, REFLECTOR - RED
  • 41
    5611-853 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 42
    5611-852 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 43
    8061-706 RIVET
    RIVET
  • 44
    6606-463 SNOWFLAP
    SNOWFLAP
  • 45
    8017-607 SCREW, MACHINE
    SCREW, MACHINE
  • 46
    1623-242 WASHER
    WASHER
  • 47
    3604-157 STRAP, SNOWFLAP RESTRAINT
    STRAP, SNOWFLAP RESTRAINT
  • 48
    1623-608 NUT
    NUT
  • 49
    1623-022 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 50
    8060-686 RIVET
    RIVET
  • 51
    8476-616 SCREW, MACHINE
    SCREW, MACHINE
  • 52
    1707-678 BUMPER, REAR - BLACK
    BUMPER, REAR - BLACK
  • 53
    8427-602 NUT, LOCK
    NUT, LOCK
  • 54
    0623-562 PLUG, HOLE
    PLUG, HOLE
  • 55
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
