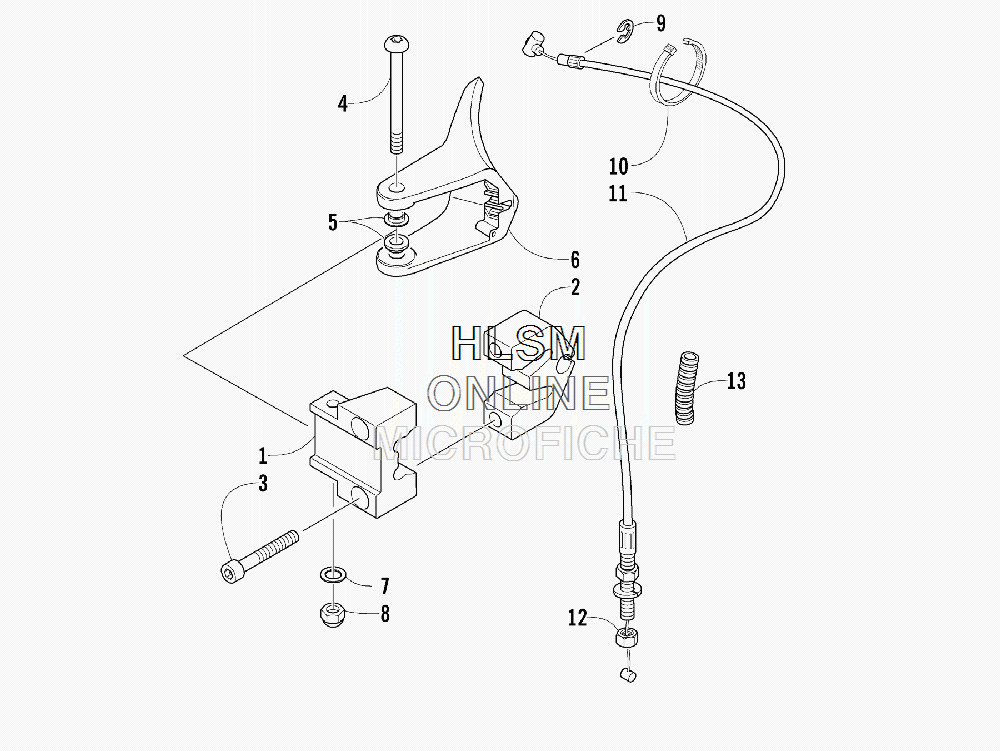

THROTTLE CONTROL ASSEMBLY для Arctic Cat SNO PRO 600 (INTERNATONAL) - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    0605-383 BLOCK, MOUNTING - THROTTLE LEVER - FRONT
    BLOCK, MOUNTING - THROTTLE LEVER - FRONT
  • 2
    0605-384 BLOCK, MOUNTING - THROTTLE LEVER - REAR
    BLOCK, MOUNTING - THROTTLE LEVER - REAR
  • 3
    8005-494 SCREW, CAP
    SCREW, CAP
  • 4
    0609-789 SCREW, SHOULDER
    SCREW, SHOULDER
  • 5
    0609-038 SEAL, THROTTLE LEVER
    SEAL, THROTTLE LEVER
  • 6
    0609-481 LEVER, THROTTLE
    LEVER, THROTTLE
  • 7
    1623-616 WASHER
    WASHER
  • 8
    0609-790 NUT, CAP
    NUT, CAP
  • 9
    0123-231 RING, RETAINING
    RING, RETAINING
  • 10
    0123-811 TIE, CABLE - 4 IN.
    TIE, CABLE - 4 IN.
  • 10
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 11
    0687-220 CABLE, THROTTLE (INC. 12)
    CABLE, THROTTLE (INC. 12)
  • 12
    0623-464 ...NUT, LOCKING - THROTTLE CABLE
    ...NUT, LOCKING - THROTTLE CABLE
  • 13
    1619-221 CONDUIT, HIGH TEMPERATURE
    CONDUIT, HIGH TEMPERATURE
