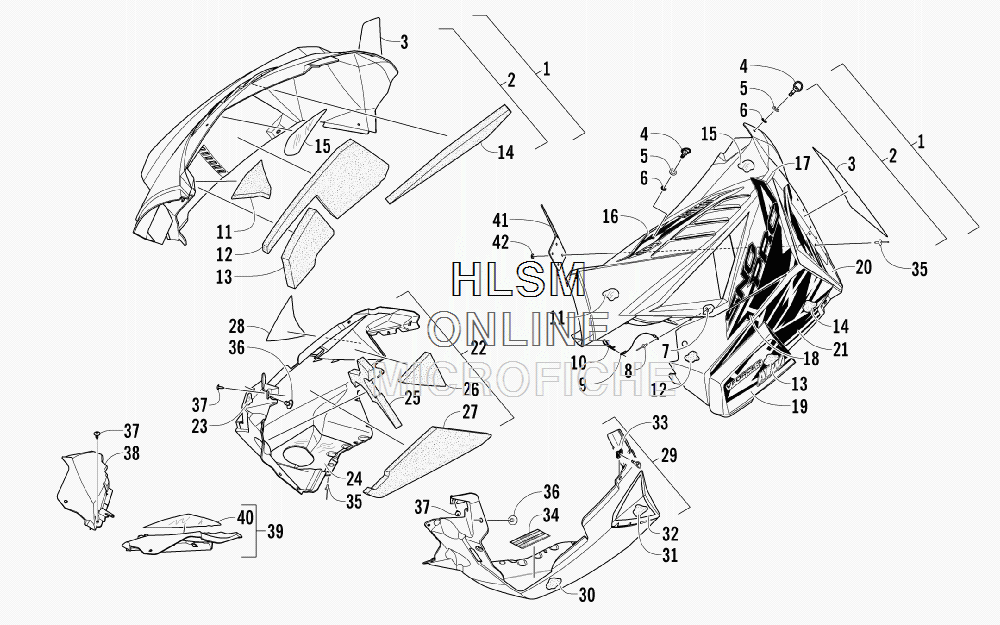

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat SNO PRO 600 (INTERNATONAL) - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    3718-640 PANEL, SIDE - RIGHT W/DECALS - WHITE (INC. 2-21)
    PANEL, SIDE - RIGHT W/DECALS - WHITE (INC. 2-21)
  • 1
    3718-641 PANEL, SIDE - LEFT W/DECALS - GREEN (INC. 2-21)
    PANEL, SIDE - LEFT W/DECALS - GREEN (INC. 2-21)
  • 2
    3718-320 ...PANEL, SIDE - RIGHT W/O DECALS - WHITE (INC. 3-15)
    ...PANEL, SIDE - RIGHT W/O DECALS - WHITE (INC. 3-15)
  • 2
    3718-627 ...PANEL, SIDE - LEFT W/O DECALS - GREEN (INC. 3-14)
    ...PANEL, SIDE - LEFT W/O DECALS - GREEN (INC. 3-14)
  • 3
    9611-499 ......DECAL, WARNING - ENGLISH
    ......DECAL, WARNING - ENGLISH
  • 3
    9611-498 ......DECAL, WARNING - FRENCH
    ......DECAL, WARNING - FRENCH
  • 4
    1623-746 ......PIN, RETAINING
    ......PIN, RETAINING
  • 5
    1623-971 ......WASHER, NYLON
    ......WASHER, NYLON
  • 6
    1623-747 ......NUT, PUSH
    ......NUT, PUSH
  • 7
    8050-127 ......WASHER
    ......WASHER
  • 8
    8060-486 ......RIVET
    ......RIVET
  • 9
    0607-447 ......CABLE
    ......CABLE
  • 10
    0605-283 ......CLIP, HAIRPIN
    ......CLIP, HAIRPIN
  • 11
    0617-674 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
    ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
  • 11
    6606-466 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 12
    0617-672 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
    ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
  • 12
    0617-673 ......FOAM, SIDE PANEL - UPPER REAR - LEFT
    ......FOAM, SIDE PANEL - UPPER REAR - LEFT
  • 13
    0617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
    ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
  • 13
    0617-633 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
    ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
  • 14
    0617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT
    ......FOAM, SIDE PANEL - LOWER REAR - RIGHT
  • 14
    0617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT
    ......FOAM, SIDE PANEL - LOWER REAR - LEFT
  • 15
    6606-414 ......FOIL, PROTECTIVE - RIGHT
    ......FOIL, PROTECTIVE - RIGHT
  • 15
    2606-573 ......FOIL, PROTECTIVE - LEFT
    ......FOIL, PROTECTIVE - LEFT
  • 16
    0621-204 ...DECAL, SIDE PANEL - UPPER CENTER - RIGHT - WHITE
    ...DECAL, SIDE PANEL - UPPER CENTER - RIGHT - WHITE
  • 16
    0621-205 ...DECAL, SIDE PANEL - UPPER CENTER - LEFT - GREEN
    ...DECAL, SIDE PANEL - UPPER CENTER - LEFT - GREEN
  • 17
    0621-206 ...DECAL, SIDE PANEL - UPPER FRONT - RIGHT - WHITE
    ...DECAL, SIDE PANEL - UPPER FRONT - RIGHT - WHITE
  • 17
    0621-207 ...DECAL, SIDE PANEL - UPPER FRONT - LEFT - GREEN
    ...DECAL, SIDE PANEL - UPPER FRONT - LEFT - GREEN
  • 18
    0621-210 ...DECAL, SIDE PANEL - CENTER FRONT - RIGHT - WHITE
    ...DECAL, SIDE PANEL - CENTER FRONT - RIGHT - WHITE
  • 18
    0621-211 ...DECAL, SIDE PANEL - CENTER FRONT - LEFT - GREEN
    ...DECAL, SIDE PANEL - CENTER FRONT - LEFT - GREEN
  • 19
    0621-212 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT - WHITE
    ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT - WHITE
  • 19
    0621-213 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT - GREEN
    ...DECAL, SIDE PANEL - LOWER FRONT - LEFT - GREEN
  • 20
    0621-214 ...DECAL, SIDE PANEL - UPPER REAR - RIGHT - WHITE
    ...DECAL, SIDE PANEL - UPPER REAR - RIGHT - WHITE
  • 20
    0621-215 ...DECAL, SIDE PANEL - UPPER REAR - LEFT - GREEN
    ...DECAL, SIDE PANEL - UPPER REAR - LEFT - GREEN
  • 21
    0621-208 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT - WHITE
    ...DECAL, SIDE PANEL - LOWER REAR - RIGHT - WHITE
  • 21
    0621-209 ...DECAL, SIDE PANEL - LOWER REAR - LEFT - GREEN
    ...DECAL, SIDE PANEL - LOWER REAR - LEFT - GREEN
  • 22
    3718-322 PLATE, SKID - RIGHT - BLACK (INC. 23-27)
    PLATE, SKID - RIGHT - BLACK (INC. 23-27)
  • 23
    6606-354 ...FOIL, PROTECTIVE - UPPER - RIGHT
    ...FOIL, PROTECTIVE - UPPER - RIGHT
  • 24
    6606-352 ...FOIL, PROTECTIVE - LOWER - RIGHT
    ...FOIL, PROTECTIVE - LOWER - RIGHT
  • 25
    0617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT
    ...FOAM, SKID PLATE - UPPER FRONT - RIGHT
  • 26
    0617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT
    ...FOAM, SKID PLATE - UPPER REAR - RIGHT
  • 27
    0617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT
    ...FOAM, SKID PLATE - CENTER FRONT - RIGHT
  • 28
    0621-196 DECAL, SKID PLATE - RIGHT
    DECAL, SKID PLATE - RIGHT
  • 29
    3718-381 PLATE, SKID - LEFT - BLACK (INC. 30-31)
    PLATE, SKID - LEFT - BLACK (INC. 30-31)
  • 30
    0617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT
    ...FOAM, SKID PLATE - CENTER FRONT - LEFT
  • 31
    0617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT
    ...FOAM, SKID PLATE - UPPER REAR - LEFT
  • 32
    0621-197 DECAL, SKID PLATE - LEFT - GREEN
    DECAL, SKID PLATE - LEFT - GREEN
  • 33
    1623-748 CLIP, RETAINING
    CLIP, RETAINING
  • 34
    1611-565 DECAL, WARNING - CLUTCH GUARD
    DECAL, WARNING - CLUTCH GUARD
  • 35
    8061-708 RIVET
    RIVET
  • 36
    5606-639 PIN, RETAINING
    PIN, RETAINING
  • 37
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 38
    6606-342 FASCIA, FRONT RIGHT - BLACK
    FASCIA, FRONT RIGHT - BLACK
  • 39
    3718-303 FASCIA, FRONT LEFT - BLACK (INC. 40)
    FASCIA, FRONT LEFT - BLACK (INC. 40)
  • 40
    6606-405 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 41
    6606-493 PLATE, BACKING
    PLATE, BACKING
  • 42
    0123-802 WASHER
    WASHER
