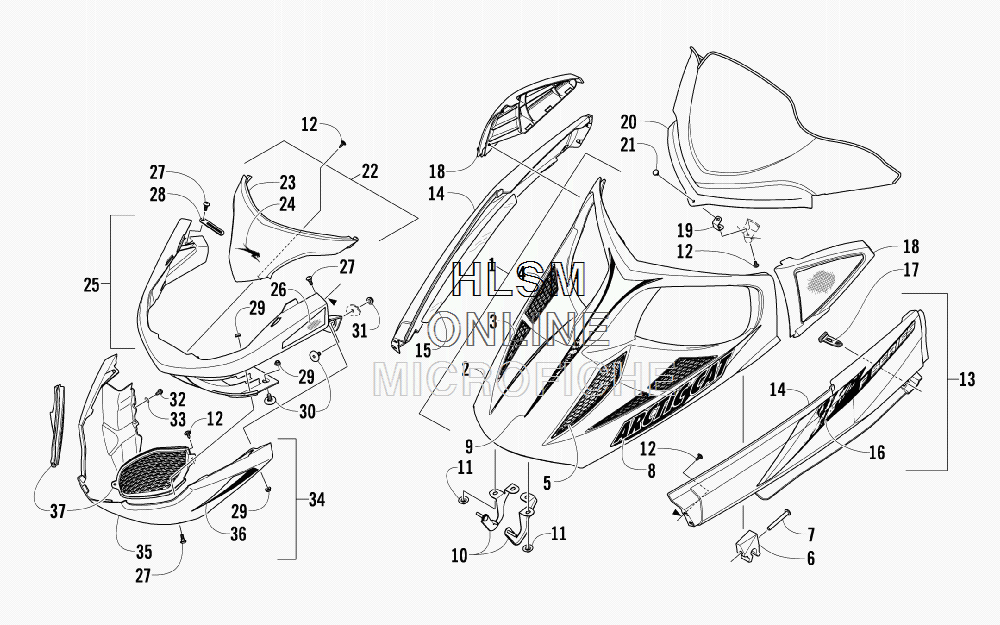

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat Z1 LXR - 2010 года выпуска
-
№АртикулНазвание
-
12718-665 HOOD W/DECALS - GREEN (INC. 2-9)HOOD W/DECALS - GREEN (INC. 2-9)
-
27800-521 ...HOOD W/O DECALS - GREEN (INC. 3-7)...HOOD W/O DECALS - GREEN (INC. 3-7)
-
34606-624 ......VENT, HOOD - OUTER FRONT - RIGHT - BLACK......VENT, HOOD - OUTER FRONT - RIGHT - BLACK
-
34606-625 ......VENT, HOOD - OUTER FRONT - LEFT - BLACK......VENT, HOOD - OUTER FRONT - LEFT - BLACK
-
44606-640 ......VENT, HOOD - OUTER REAR - RIGHT - BLACK......VENT, HOOD - OUTER REAR - RIGHT - BLACK
-
44606-641 ......VENT, HOOD - OUTER REAR - LEFT - BLACK......VENT, HOOD - OUTER REAR - LEFT - BLACK
-
54606-614 ......VENT, HOOD - INNER - RIGHT - BLACK......VENT, HOOD - INNER - RIGHT - BLACK
-
54606-615 ......VENT, HOOD - INNER - LEFT - BLACK......VENT, HOOD - INNER - LEFT - BLACK
-
61623-614 ......CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT......CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT
-
61623-615 ......CLIP, RUBBER - HOOD HOLD-DOWN - LEFT......CLIP, RUBBER - HOOD HOLD-DOWN - LEFT
-
71623-610 ......PIN, RETAINING......PIN, RETAINING
-
88611-730 ...DECAL, HOOD - "ARCTIC CAT" - RIGHT...DECAL, HOOD - "ARCTIC CAT" - RIGHT
-
88611-731 ...DECAL, HOOD - "ARCTIC CAT" - LEFT...DECAL, HOOD - "ARCTIC CAT" - LEFT
-
98611-732 ...DECAL, HOOD - CREST...DECAL, HOOD - CREST
-
103706-348 BRACKET, HINGE - RIGHTBRACKET, HINGE - RIGHT
-
103706-347 BRACKET, HINGE - LEFTBRACKET, HINGE - LEFT
-
111623-469 NUT, STAMPEDNUT, STAMPED
-
121623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
132718-770 SPAR, FRONT W/DECALS - RIGHT - BLACK (INC. 14-16)SPAR, FRONT W/DECALS - RIGHT - BLACK (INC. 14-16)
-
132718-771 SPAR, FRONT W/DECALS - LEFT - BLACK (INC. 14 AND 16)SPAR, FRONT W/DECALS - LEFT - BLACK (INC. 14 AND 16)
-
144706-610 ...SPAR, FRONT W/O DECALS - RIGHT - BLACK...SPAR, FRONT W/O DECALS - RIGHT - BLACK
-
144706-611 ...SPAR, FRONT W/O DECALS - LEFT - BLACK...SPAR, FRONT W/O DECALS - LEFT - BLACK
-
154606-934 ...FOIL, SPAR - RIGHT...FOIL, SPAR - RIGHT
-
168611-726 ...DECAL, FRONT SPAR - RIGHT...DECAL, FRONT SPAR - RIGHT
-
168611-727 ...DECAL, FRONT SPAR - LEFT...DECAL, FRONT SPAR - LEFT
-
174606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
184706-644 BEZEL, INTAKE - RIGHT - GREENBEZEL, INTAKE - RIGHT - GREEN
-
184706-645 BEZEL, INTAKE - LEFT - GREENBEZEL, INTAKE - LEFT - GREEN
-
194606-961 BRACKET, WINDSHIELD - HOLD-DOWNBRACKET, WINDSHIELD - HOLD-DOWN
-
205606-975 WINDSHIELDWINDSHIELD
-
211623-677 RIVET, PLASTICRIVET, PLASTIC
-
222718-548 FASCIA, BUMPER - UPPER W/DECALS - GREEN (INC. 23-24)FASCIA, BUMPER - UPPER W/DECALS - GREEN (INC. 23-24)
-
234706-616 ...FASCIA, BUMPER - UPPER - GREEN...FASCIA, BUMPER - UPPER - GREEN
-
248611-267 ...DECAL, AIRCAT - CHROME...DECAL, AIRCAT - CHROME
-
252718-767 BUMPER, FRONT - BLACK (INC. 26)BUMPER, FRONT - BLACK (INC. 26)
-
269611-282 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
269611-283 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
270423-355 SCREW, SHOULDERSCREW, SHOULDER
-
283002-964 CLAMP, WIRECLAMP, WIRE
-
298427-602 NUT, LOCKNUT, LOCK
-
301623-775 SCREW, SHOULDERSCREW, SHOULDER
-
318424-602 NUTNUT
-
320623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
338053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
342718-746 FASCIA, BUMPER - LOWER W/DECALS - BLACK (INC. 35-36)FASCIA, BUMPER - LOWER W/DECALS - BLACK (INC. 35-36)
-
355606-462 ...FASCIA, BUMPER - LOWER - BLACK...FASCIA, BUMPER - LOWER - BLACK
-
368611-728 ...DECAL, BUMPER - RIGHT...DECAL, BUMPER - RIGHT
-
368611-729 ...DECAL, BUMPER - LEFT...DECAL, BUMPER - LEFT
-
374606-604 VENT, BUMPER - RIGHT - BLACKVENT, BUMPER - RIGHT - BLACK
-
374606-605 VENT, BUMPER - LEFT - BLACKVENT, BUMPER - LEFT - BLACK
