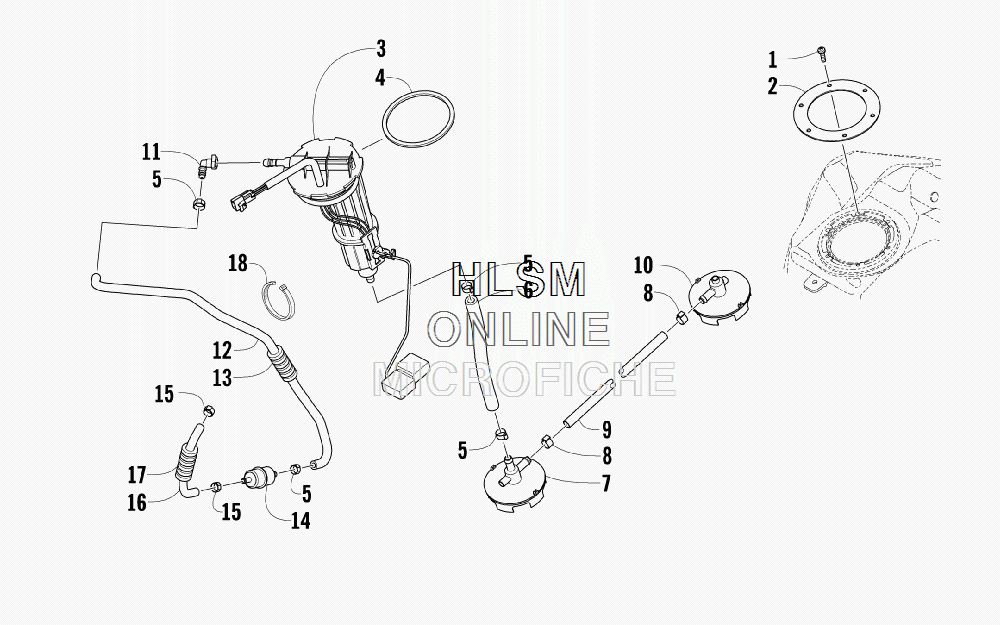

FUEL PUMP ASSEMBLY для Arctic Cat Z1 LXR - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0423-898 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 2
    2670-042 PLATE, RETAINING - FUEL PUMP
    PLATE, RETAINING - FUEL PUMP
  • 3
    2670-051 PUMP, FUEL - ASSEMBLY
    PUMP, FUEL - ASSEMBLY
  • 4
    0470-838 SEAL
    SEAL
  • 5
    0610-563 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    0610-691 HOSE, GASLINE - 10 FT
    HOSE, GASLINE - 10 FT
  • 7
    1670-701 PICKUP, FUEL
    PICKUP, FUEL
  • 8
    0610-704 CLAMP, HOSE
    CLAMP, HOSE
  • 9
    2670-006 HOSE
    HOSE
  • 10
    1670-618 PICKUP, FUEL
    PICKUP, FUEL
  • 11
    1670-878 FITTING, QUICK-CONNECT
    FITTING, QUICK-CONNECT
  • 12
    0610-813 HOSE, GASLINE
    HOSE, GASLINE
  • 13
    1619-349 CONDUIT, FLEXIBLE - 5 FT
    CONDUIT, FLEXIBLE - 5 FT
  • 14
    1670-825 FILTER, FUEL
    FILTER, FUEL
  • 15
    0610-419 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    0610-706 HOSE, GASLINE
    HOSE, GASLINE
  • 17
    0619-776 CONDUIT, FLEXIBLE - 5 FT
    CONDUIT, FLEXIBLE - 5 FT
  • 18
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
