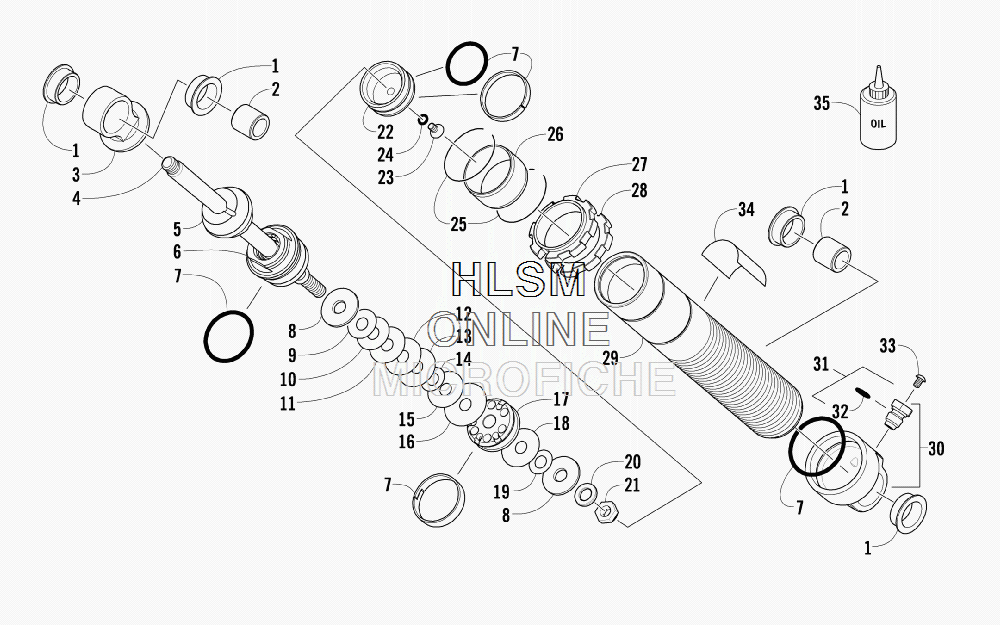

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat Z1 LXR - 2010 года выпуска`
-
№АртикулНазвание
-
-2703-593 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11604-222 BUSHING, SHOCKBUSHING, SHOCK
-
22604-223 SLEEVE, EYELETSLEEVE, EYELET
-
30603-910 EYELET, SHOCKEYELET, SHOCK
-
42603-840 ROD, SHOCKROD, SHOCK
-
52603-459 BUMPER, SHOCKBUMPER, SHOCK
-
62604-413 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
72604-815 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
80603-540 WASHER, TOP OUTWASHER, TOP OUT
-
90603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
100603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
110603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
120603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
130603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
140603-331 VALVE, 0.700 X 0.008 IN.VALVE, 0.700 X 0.008 IN.
-
150603-339 VALVE, 1.000 X 0.006 IN.VALVE, 1.000 X 0.006 IN.
-
160603-348 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
172604-412 PISTON, 0.055 IN. - ORIFICEPISTON, 0.055 IN. - ORIFICE
-
180603-346 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
190603-879 VALVE, 0.800 X 0.012 IN.VALVE, 0.800 X 0.012 IN.
-
200603-389 WASHER, BACKUPWASHER, BACKUP
-
210603-301 NUTNUT
-
222604-816 PISTON, FLOATINGPISTON, FLOATING
-
231604-316 SCREW, RELIEF (INC. 24)SCREW, RELIEF (INC. 24)
-
241604-425 ...O-RING...O-RING
-
252603-245 RETAINER, WEAR SLEEVERETAINER, WEAR SLEEVE
-
262603-246 SLEEVE, WEARSLEEVE, WEAR
-
272604-840 NUT, ADJUSTERNUT, ADJUSTER
-
282604-841 COLLAR, LOCKING - ADJUSTER NUTCOLLAR, LOCKING - ADJUSTER NUT
-
292603-839 BODY, SHOCKBODY, SHOCK
-
302604-817 END CAP, SHOCK (INC. 31-32)END CAP, SHOCK (INC. 31-32)
-
310703-341 ...VALVE, PRESSURE (INC. 32)...VALVE, PRESSURE (INC. 32)
-
321604-318 ......O-RING......O-RING
-
330624-097 SCREW, VALVESCREW, VALVE
-
342604-897 DECAL, SHOCKDECAL, SHOCK
-
355639-240 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
