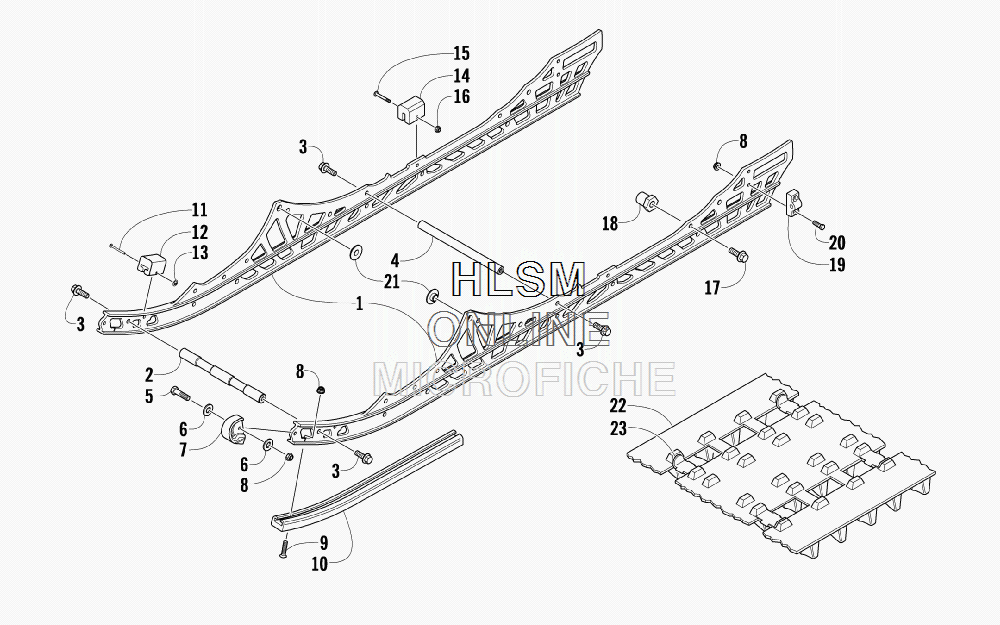

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat CROSSFIRE 600 - 2010 года выпуска

  • №
    Артикул
    Название
  • -
    1704-873 COMPLETE SKID FRAME ASSEMBLY
    COMPLETE SKID FRAME ASSEMBLY
  • 1
    3604-395 RAIL, SUSP-141" FORMED/MACH
    RAIL, SUSP-141" FORMED/MACH
  • 2
    3604-401 AXLE, CROSSBRACE/LIMITER
    AXLE, CROSSBRACE/LIMITER
  • 3
    1623-502 SCREW, CAP-HFH 5/16-18X1.25 W/2353
    SCREW, CAP-HFH 5/16-18X1.25 W/2353
  • 4
    3604-402 AXLE, CROSSBRACE
    AXLE, CROSSBRACE
  • 5
    8002-043 SCREW, CAP-HH 1/4-20 X1.125 G5 Z & Y
    SCREW, CAP-HH 1/4-20 X1.125 G5 Z & Y
  • 6
    8050-217 WASHER
    WASHER
  • 7
    3604-003 END CAP, SLIDE RAIL
    END CAP, SLIDE RAIL
  • 8
    8047-366 NUT, LOCK
    NUT, LOCK
  • 9
    0123-859 SCREW, MACH-PHFH 1/4-20 X 1 1/8 Z & Y
    SCREW, MACH-PHFH 1/4-20 X 1 1/8 Z & Y
  • 10
    3604-424 WEARSTRIP, SLIDE RAIL
    WEARSTRIP, SLIDE RAIL
  • 11
    0123-767 RIVET, SOLID
    RIVET, SOLID
  • 12
    0104-631 PAD, SHOCK-RUBBER
    PAD, SHOCK-RUBBER
  • 13
    0123-766 NUT, PUSH
    NUT, PUSH
  • 14
    1604-429 PAD, SHOCK-RUBBER
    PAD, SHOCK-RUBBER
  • 15
    8017-405 SCREW, MACH-TSTRH 10-24X1.50 GR2 Z & Y
    SCREW, MACH-TSTRH 10-24X1.50 GR2 Z & Y
  • 16
    8041-246 NUT, LOCK
    NUT, LOCK
  • 17
    1623-566 SCREW, CAP-HFH 5/16-18 X0.875 G5 W/2353
    SCREW, CAP-HFH 5/16-18 X0.875 G5 W/2353
  • 18
    3604-400 BUSHING, STOP - REAR ARM
    BUSHING, STOP - REAR ARM
  • 19
    0704-352 ADJUSTER, TRACK
    ADJUSTER, TRACK
  • 20
    8002-042 SCREW, CAP-HH 1/4-20 X1.00 G5 Z & Y
    SCREW, CAP-HH 1/4-20 X1.00 G5 Z & Y
  • 21
    2604-733 INSERT, RAIL-3/8 X 1.00"
    INSERT, RAIL-3/8 X 1.00"
  • 22
    2602-169 TRACK,COBRA-15"X141"X1.25" (3.0 PITCH) (INC. 23)
    TRACK,COBRA-15"X141"X1.25" (3.0 PITCH) (INC. 23)
  • 23
    2602-081 ...CLIP, GUIDE
    ...CLIP, GUIDE
