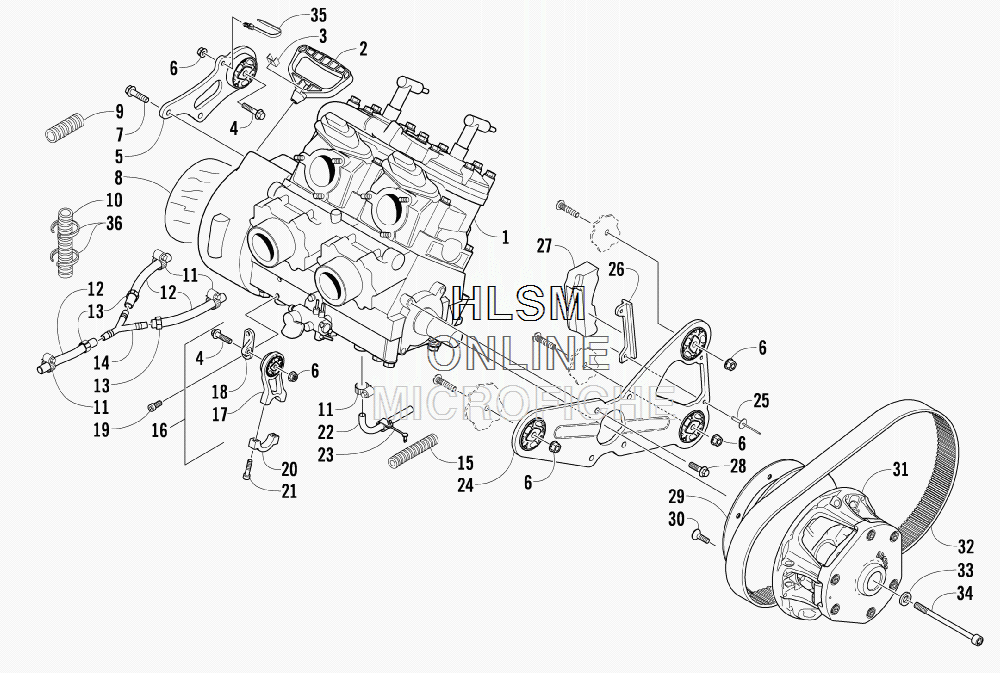

ENGINE AND RELATED PARTS для Arctic Cat CROSSFIRE 600 - 2010 года выпуска`
-
№АртикулНазвание
-
10662-580 ENGINE, AJ60L7 W/O EFI COMPONENTSENGINE, AJ60L7 W/O EFI COMPONENTS
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
48020-136 SCREW, CAP-HFH 5/16-18 X 1.75 G5 Z & YSCREW, CAP-HFH 5/16-18 X 1.75 G5 Z & Y
-
50708-498 BRACKET, ENGINE MOUNTING - REAR - RIGHTBRACKET, ENGINE MOUNTING - REAR - RIGHT
-
68047-426 NUT, LOCKNUT, LOCK
-
78413-831 SCREW, CAP-HFH M8X1.25X30 CL10.9 W/2353SCREW, CAP-HFH M8X1.25X30 CL10.9 W/2353
-
81670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
90619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
100619-994 CONDUIT, FLEXIBLE (3/4 IN. ID) - 6 IN.CONDUIT, FLEXIBLE (3/4 IN. ID) - 6 IN.
-
110623-373 CLAMP, HOSECLAMP, HOSE
-
120610-076 HOSE, COOLANT - 10 FTHOSE, COOLANT - 10 FT
-
130610-581 CLAMP, HOSECLAMP, HOSE
-
141670-596 Y-FITTINGY-FITTING
-
150619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
160708-523 BRACKET, ENGINE MOUNTING - ASSEMBLY (INC. ONE NO. 4, ONE NO. 6, AND 17-18)BRACKET, ENGINE MOUNTING - ASSEMBLY (INC. ONE NO. 4, ONE NO. 6, AND 17-18)
-
170708-519 ...BRACKET, ENGINE MOUNTING - FRONT - LOWER RIGHT...BRACKET, ENGINE MOUNTING - FRONT - LOWER RIGHT
-
180608-549 ...BRACKET, ENGINE MOUNTING - UPPER RIGHT...BRACKET, ENGINE MOUNTING - UPPER RIGHT
-
191623-504 SCREW, CAP-HSH M10X1.25X25 CL10.9 W/2353SCREW, CAP-HSH M10X1.25X25 CL10.9 W/2353
-
200608-467 CAP, MOUNTING BRACKET - ENGINECAP, MOUNTING BRACKET - ENGINE
-
211623-603 SCREW, CAP-HSH 1/4-20X1.125(BLK) W/2353SCREW, CAP-HSH 1/4-20X1.125(BLK) W/2353
-
220610-760 HOSE, COOLANT - WATER PUMP/THROTTLE BODYHOSE, COOLANT - WATER PUMP/THROTTLE BODY
-
231623-659 CLAMP, PUSH-MOUNTCLAMP, PUSH-MOUNT
-
240708-507 BRACKET, ENGINE MOUNTING - LEFT (INC. 25-26)BRACKET, ENGINE MOUNTING - LEFT (INC. 25-26)
-
258060-730 ...RIVET...RIVET
-
260608-565 ...PLATE, BACKING - TORQUE BUMPER...PLATE, BACKING - TORQUE BUMPER
-
270608-462 BUMPER, TORQUEBUMPER, TORQUE
-
288408-821 SCREW, CAP-HFH M8X1.25X20 CL8.8 W/2353SCREW, CAP-HFH M8X1.25X20 CL8.8 W/2353
-
290645-410 RING, DAMPERRING, DAMPER
-
301623-821 SCREW, MACHINESCREW, MACHINE
-
310746-428 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
320627-046 BELT, DRIVE-S-3C-1.448"WX45.998"OC-DCBELT, DRIVE-S-3C-1.448"WX45.998"OC-DC
-
331623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
341623-792 BOLT, CLUTCHBOLT, CLUTCH
-
350623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
360123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
