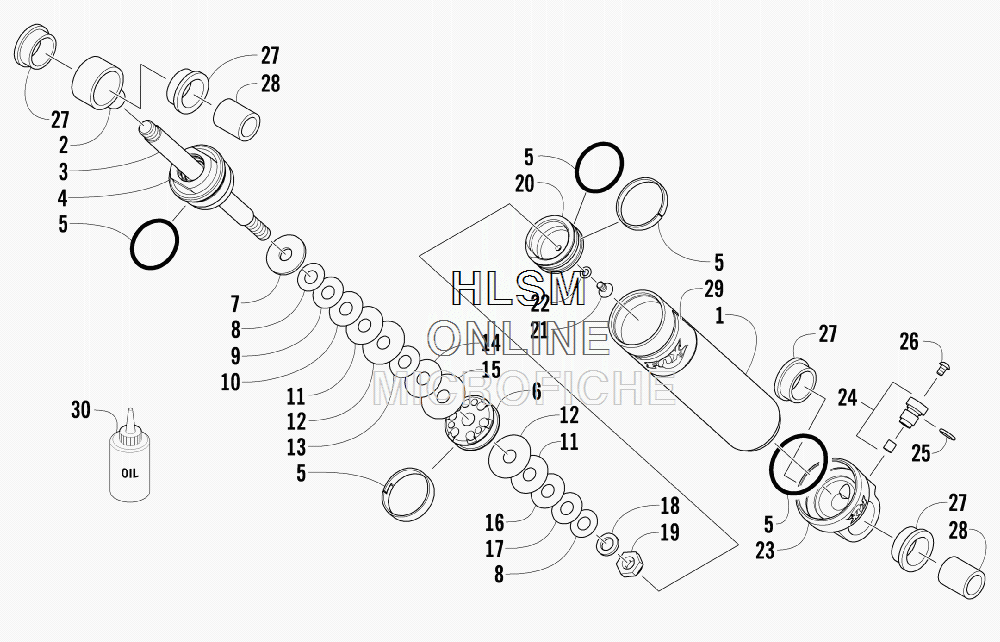

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat CROSSFIRE 600 - 2010 года выпуска`
-
№АртикулНазвание
-
-1704-812 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
12604-864 BODY, SHOCKBODY, SHOCK
-
20604-893 EYELET, SHOCKEYELET, SHOCK
-
32604-863 ROD, SHOCKROD, SHOCK
-
42604-413 CAP, SHOCKCAP, SHOCK
-
52604-815 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
62604-412 PISTON, 0.055 IN. - ORIFICEPISTON, 0.055 IN. - ORIFICE
-
70603-540 WASHER, TOP OUTWASHER, TOP OUT
-
80603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
90603-886 VALVE, 0.900 X 0.015 IN.VALVE, 0.900 X 0.015 IN.
-
100603-887 VALVE, 1.000 X 0.015 IN.VALVE, 1.000 X 0.015 IN.
-
110603-888 VALVE, 1.100 X 0.015 IN.VALVE, 1.100 X 0.015 IN.
-
120603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
130603-336 VALVE, 0.900 X 0.006 IN.VALVE, 0.900 X 0.006 IN.
-
140603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
150603-350 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
160603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
170603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
180603-389 WASHER, BACKUPWASHER, BACKUP
-
190603-301 NUTNUT
-
202604-816 PISTON, FLOATINGPISTON, FLOATING
-
211604-316 SCREW, MACHINE W/O-RING (INC. 22)SCREW, MACHINE W/O-RING (INC. 22)
-
221604-425 ...O-RING...O-RING
-
232604-817 END CAP (INC. 24-25)END CAP (INC. 24-25)
-
240703-341 ...VALVE, PRESSURE (INC. 25)...VALVE, PRESSURE (INC. 25)
-
251604-318 ......O-RING......O-RING
-
260624-097 SCREW, VALVESCREW, VALVE
-
271604-222 BUSHING, SHOCKBUSHING, SHOCK
-
282604-223 SLEEVE, EYELETSLEEVE, EYELET
-
292604-897 DECAL, SHOCKDECAL, SHOCK
-
305639-240 SEMI-SYN SHOCK OIL-1 QUARTSEMI-SYN SHOCK OIL-1 QUART
