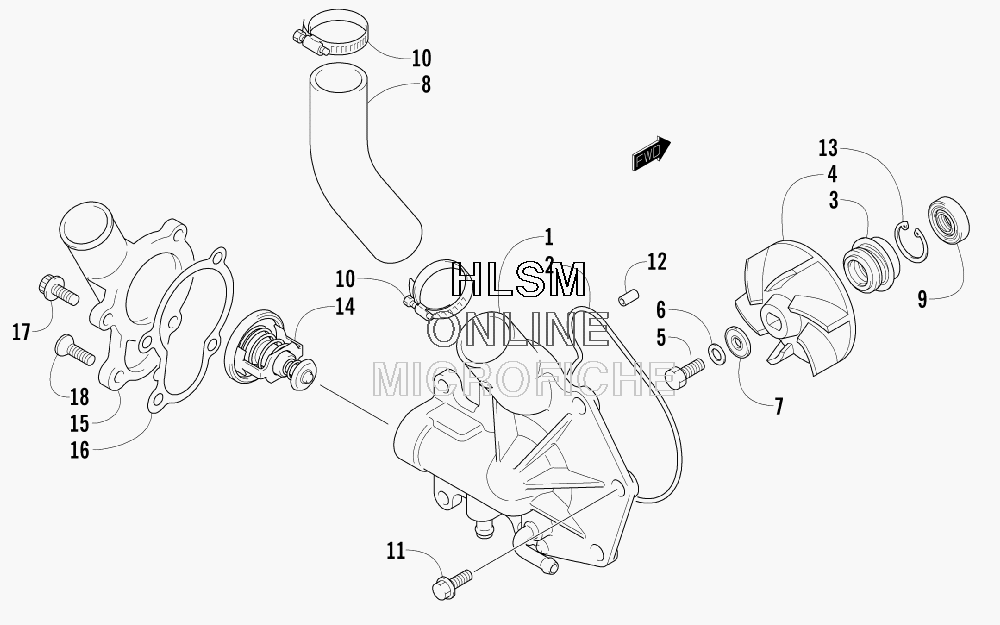

WATER PUMP/WATER MANIFOLD для Arctic Cat AC M8 HCR - 2009 года выпуска`
-
№АртикулНазвание
-
13007-540 COVER, WATER PUMPCOVER, WATER PUMP
-
23007-541 O-RING, COVERO-RING, COVER
-
33007-180 SEALSEAL
-
43005-697 IMPELLERIMPELLER
-
53003-426 SCREW, CAPSCREW, CAP
-
63003-431 WASHERWASHER
-
73003-432 WASHERWASHER
-
83007-542 HOSE, WATER INLETHOSE, WATER INLET
-
93007-431 SEAL, OILSEAL, OIL
-
103004-786 CLAMP, HOSECLAMP, HOSE
-
113007-409 SCREW, CAPSCREW, CAP
-
123005-899 PIN, DOWELPIN, DOWEL
-
133004-009 CIRCLIP, BEARING FASTENERCIRCLIP, BEARING FASTENER
-
143007-041 THERMOSTATTHERMOSTAT
-
153007-304 CAP, THERMOSTATCAP, THERMOSTAT
-
163007-543 GASKET, THERMOSTAT CAPGASKET, THERMOSTAT CAP
-
173007-446 SCREW, CAPSCREW, CAP
-
183007-306 SCREW, MACHINESCREW, MACHINE
