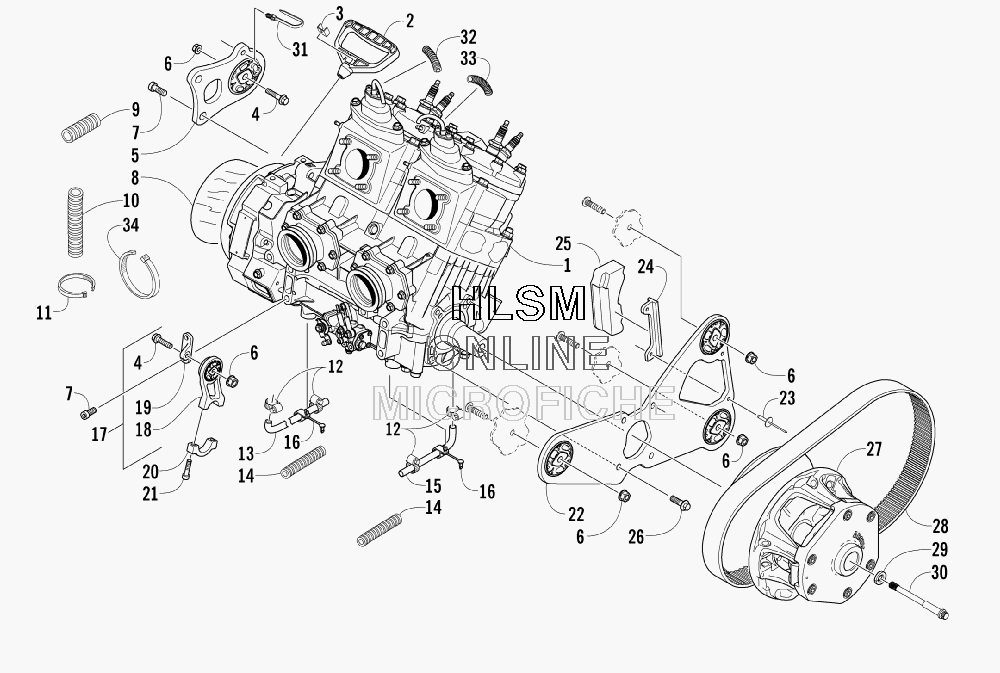

ENGINE AND RELATED PARTS для Arctic Cat AC M8 HCR - 2009 года выпуска`
-
№АртикулНазвание
-
10662-573 ENGINE, AB80L3 W/O EFI COMPONENTSENGINE, AB80L3 W/O EFI COMPONENTS
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIHANDLECAP, RECOIHANDLE
-
48020-136 SCREW, CAPSCREW, CAP
-
50708-471 MOUNT, ENGINE - MAGMOUNT, ENGINE - MAG
-
68047-426 NUT, LOCKNUT, LOCK
-
71623-504 SCREW, CAPSCREW, CAP
-
84606-425 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
90619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
101619-131 CONDUIT, FLEXIBLE (3/4 IN. ID) - 12 IN.CONDUIT, FLEXIBLE (3/4 IN. ID) - 12 IN.
-
110123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
120623-373 CLAMP, HOSECLAMP, HOSE
-
130610-774 HOSE, COOLANT - MAG/THROTTLE BODYHOSE, COOLANT - MAG/THROTTLE BODY
-
140619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
150610-699 HOSE, COOLANT - PTO/THROTTLE BODYHOSE, COOLANT - PTO/THROTTLE BODY
-
161623-659 CLAMP, PUSH-MOUNTCLAMP, PUSH-MOUNT
-
170708-523 BRACKET, ENGINE MOUNTING - ASSEMBLY (INC. ONE NO. 4, ONE NO. 6, AND 18-19)BRACKET, ENGINE MOUNTING - ASSEMBLY (INC. ONE NO. 4, ONE NO. 6, AND 18-19)
-
180708-519 BRACKET, ENGINE MOUNTING - FRONT - LOWER RIGHTBRACKET, ENGINE MOUNTING - FRONT - LOWER RIGHT
-
190608-549 BRACKET, ENGINE MOUNTING - UPPER RIGHTBRACKET, ENGINE MOUNTING - UPPER RIGHT
-
200608-467 CAP, MOUNTING BRACKET - ENGINECAP, MOUNTING BRACKET - ENGINE
-
211623-603 SCREW, CAPSCREW, CAP
-
220708-507 BRACKET, ENGINE MOUNTING - LEFT (INC. 23-24)BRACKET, ENGINE MOUNTING - LEFT (INC. 23-24)
-
238060-730 RIVETRIVET
-
240608-565 PLATE, BACKING - TORQUE BUMPERPLATE, BACKING - TORQUE BUMPER
-
250608-462 BUMPER, TORQUEBUMPER, TORQUE
-
268408-821 SCREW, CAPSCREW, CAP
-
270746-211 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
280627-046 BELT, DRIVEBELT, DRIVE
-
290623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
300623-804 BOLT, CLUTCHBOLT, CLUTCH
-
310623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
321619-221 LOOM, HIGH-TEMPERATURELOOM, HIGH-TEMPERATURE
-
331619-220 LOOM, HIGH-TEMPERATURELOOM, HIGH-TEMPERATURE
-
340623-144 TIE, CABLE - 17.5 IN.TIE, CABLE - 17.5 IN.
