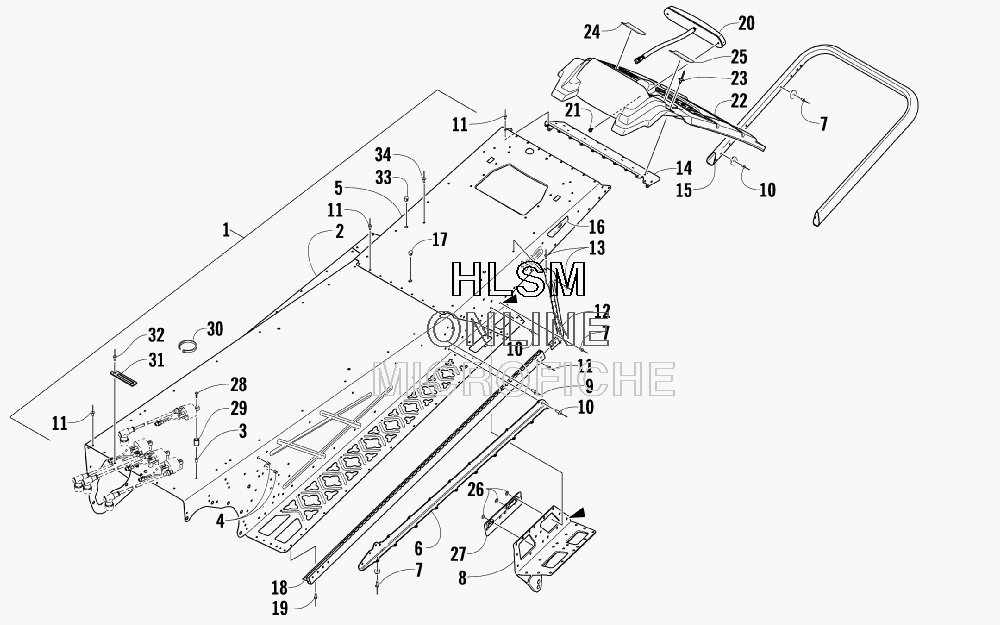

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLY для Arctic Cat AC M8 HCR - 2009 года выпуска`
-
№АртикулНазвание
-
-1707-316 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
12718-737 TUNNEASSEMBLY (INC. 2-11)TUNNEASSEMBLY (INC. 2-11)
-
22718-735 TUNNEL, FRONT (INC. 3-4)TUNNEL, FRONT (INC. 3-4)
-
31623-562 INSERTINSERT
-
41623-657 INSERTINSERT
-
55606-499 TUNNEL, REARTUNNEL, REAR
-
65606-402 BRACKET, TUNNESUPPORT - RIGHTBRACKET, TUNNESUPPORT - RIGHT
-
65606-403 BRACKET, TUNNESUPPORT - LEFTBRACKET, TUNNESUPPORT - LEFT
-
78060-686 RIVETRIVET
-
82706-456 BRACKET, SUSPENSION MOUNTING - RIGHT - REARBRACKET, SUSPENSION MOUNTING - RIGHT - REAR
-
82706-457 BRACKET, SUSPENSION MOUNTING - LEFT - REARBRACKET, SUSPENSION MOUNTING - LEFT - REAR
-
98060-682 RIVETRIVET
-
108060-688 RIVETRIVET
-
118060-484 RIVETRIVET
-
124706-448 GUSSET, TUNNEROL- RIGHT - GREENGUSSET, TUNNEROL- RIGHT - GREEN
-
124706-449 GUSSET, TUNNEROL- LEFT - GREENGUSSET, TUNNEROL- LEFT - GREEN
-
138060-488 RIVETRIVET
-
145606-253 END CAP, TUNNELEND CAP, TUNNEL
-
154706-695 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
168611-520 DECAL, REFLECTOR - RED - RIGHTDECAL, REFLECTOR - RED - RIGHT
-
168611-521 DECAL, REFLECTOR - RED - LEFTDECAL, REFLECTOR - RED - LEFT
-
170623-562 PLUG, HOLEPLUG, HOLE
-
184706-444 ROLL, TUNNE- RIGHT - GREENROLL, TUNNE- RIGHT - GREEN
-
184706-445 ROLL, TUNNE- LEFT - GREENROLL, TUNNE- LEFT - GREEN
-
198060-482 RIVET, BLIND-DH SS53 ZINCRIVET, BLIND-DH SS53 ZINC
-
200609-855 TAILLIGHT, LEDTAILLIGHT, LED
-
210623-301 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
225606-525 SNOWFLAPSNOWFLAP
-
238061-710 RIVETRIVET
-
245611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
255611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
260123-802 WASHERWASHER
-
274606-790 GUIDE, TRACK - TUNNE- RIGHTGUIDE, TRACK - TUNNE- RIGHT
-
274606-791 GUIDE, TRACK - TUNNE- LEFTGUIDE, TRACK - TUNNE- LEFT
-
281623-671 SCREW, MACHINESCREW, MACHINE
-
291623-045 SPACERSPACER
-
300123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
313002-964 CLAMP, WIRECLAMP, WIRE
-
328060-486 RIVETRIVET
-
330623-355 PLUGPLUG
-
348060-602 RIVETRIVET
