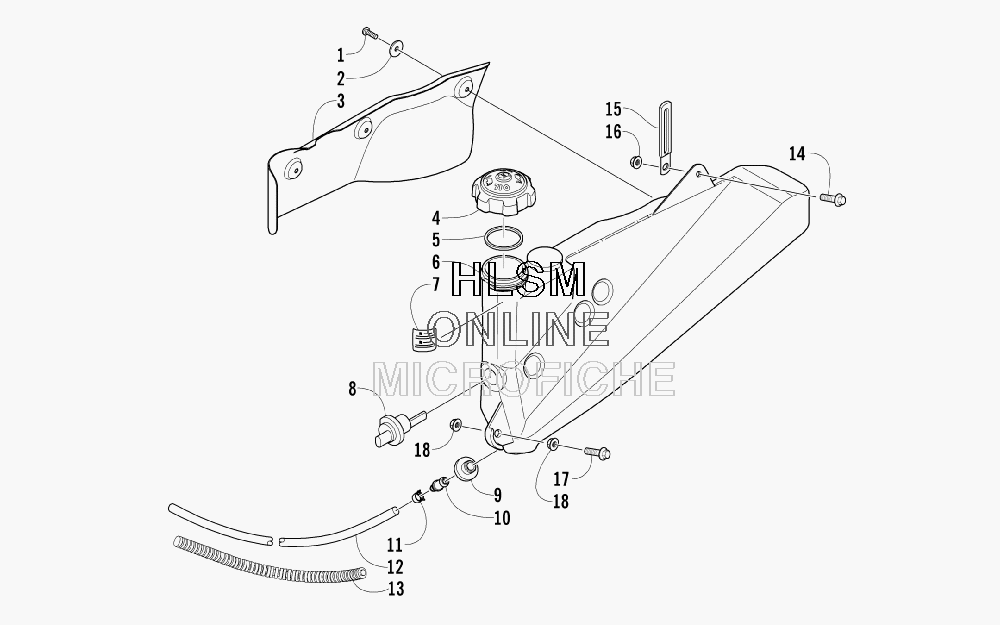

OIL TANK ASSEMBLY для Arctic Cat AC F5 EFI LXR - 2009 года выпуска`
-
№АртикулНазвание
-
18470-510 SCREW, MACHINESCREW, MACHINE
-
28450-067 WASHERWASHER
-
32612-158 SHIELD, HEATSHIELD, HEAT
-
41670-365 CAP, OIL TANK (INC. 5)CAP, OIL TANK (INC. 5)
-
50109-733 ...SEAL, CAP - OIL TANK...SEAL, CAP - OIL TANK
-
61670-811 TANK, OILTANK, OIL
-
71611-564 DECAL, OIL TANKDECAL, OIL TANK
-
80609-773 SENSOR, LOW OILSENSOR, LOW OIL
-
91670-325 GROMMETGROMMET
-
101670-481 FITTING, OIL TANKFITTING, OIL TANK
-
111623-042 CLAMP,SNAP-10 MMCLAMP,SNAP-10 MM
-
120610-693 HOSE, OIL - 100 FTHOSE, OIL - 100 FT
-
120610-692 HOSE, OIL - 25 FTHOSE, OIL - 25 FT
-
130716-558 CONDUIT, PROTECTIVE - 10 FTCONDUIT, PROTECTIVE - 10 FT
-
148408-635 SCREW, MACHINESCREW, MACHINE
-
153002-964 CLAMP, WIRECLAMP, WIRE
-
168427-602 NUT, LOCKNUT, LOCK
-
171623-645 SCREW, CAPSCREW, CAP
-
188427-802 NUT, LOCKNUT, LOCK
