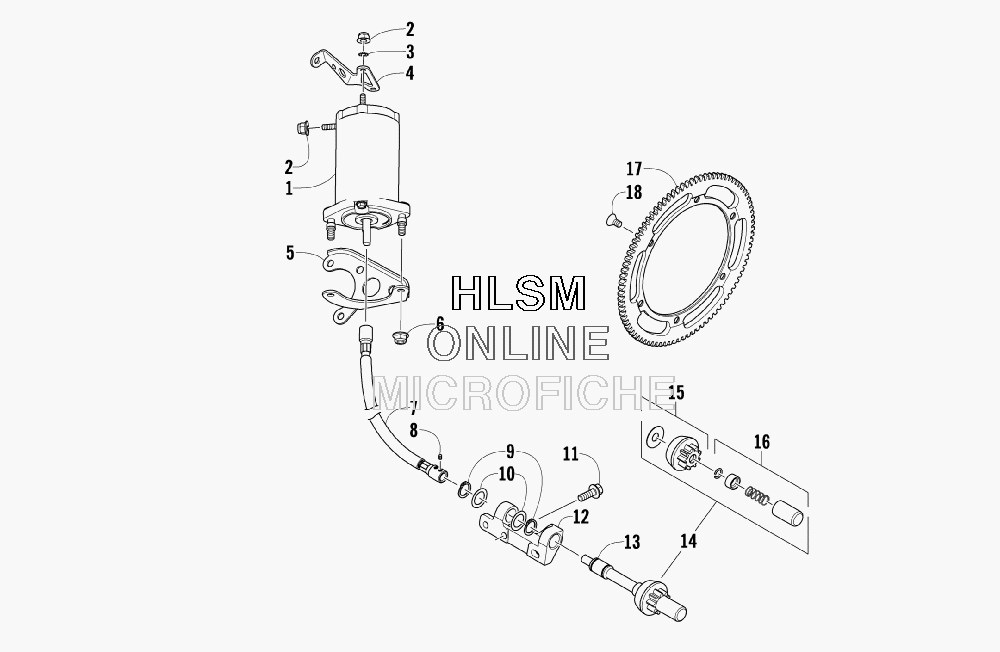

FLEX-DRIVE STARTER MOTOR ASSEMBLY для Arctic Cat AC F5 EFI LXR - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    0745-350 MOTOR, STARTER - ASSEMBLY
    MOTOR, STARTER - ASSEMBLY
  • 2
    8427-602 NUT, LOCK
    NUT, LOCK
  • 3
    8053-212 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 4
    0745-326 BRACKET, MOUNTING - STARTER MOTOR - TOP
    BRACKET, MOUNTING - STARTER MOTOR - TOP
  • 5
    0745-321 BRACKET, MOUNTING - STARTER MOTOR - BOTTOM
    BRACKET, MOUNTING - STARTER MOTOR - BOTTOM
  • 6
    8427-802 NUT, LOCK
    NUT, LOCK
  • 7
    0745-312 SHAFT, FLEX-DRIVE (INC. TWO NO. 8)
    SHAFT, FLEX-DRIVE (INC. TWO NO. 8)
  • 8
    0623-891 ...SCREW, SET - SOCKET
    ...SCREW, SET - SOCKET
  • 9
    0645-382 RING, SNAP
    RING, SNAP
  • 10
    0645-429 WASHER, THRUST
    WASHER, THRUST
  • 11
    8026-131 SCREW, CAP
    SCREW, CAP
  • 12
    0745-165 BRACKET, PINION DRIVE
    BRACKET, PINION DRIVE
  • 13
    0745-170 DRIVE, PINION - FLEX-DRIVE SHAFT (INC. 14-16)
    DRIVE, PINION - FLEX-DRIVE SHAFT (INC. 14-16)
  • 14
    0745-224 ...KIT, PINION DRIVE ASSEMBLY (INC. 15-16)
    ...KIT, PINION DRIVE ASSEMBLY (INC. 15-16)
  • 15
    0645-380 ......PINION DRIVE ASSEMBLY
    ......PINION DRIVE ASSEMBLY
  • 16
    0645-186 ......PINION STOPPER ASSEMBLY
    ......PINION STOPPER ASSEMBLY
  • 17
    0645-367 RING GEAR
    RING GEAR
  • 18
    1623-128 SCREW, MACHINE
    SCREW, MACHINE
