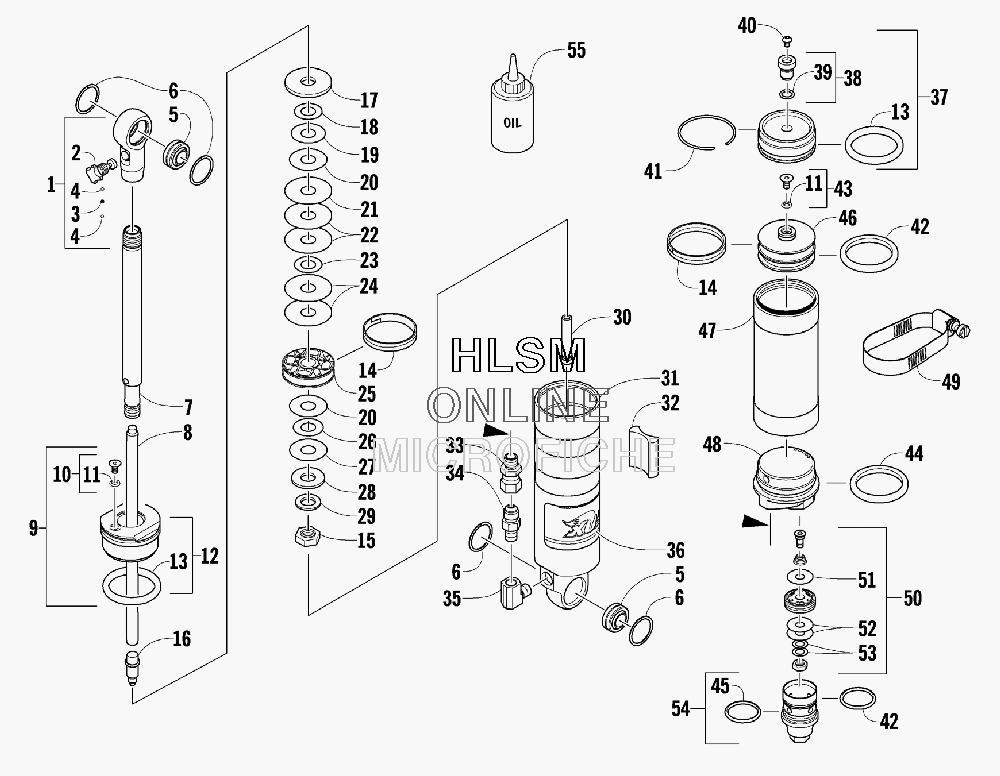

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat 600 SNO PRO INTERNATIONAL - 2009 года выпуска`
-
№АртикулНазвание
-
1704-839 COMPLETE SHOCK ABSORBER ASSEMBLYCOMPLETE SHOCK ABSORBER ASSEMBLY
-
12604-961 EYELET, SHOCK - ASSEMBLY (INC. 2-4)EYELET, SHOCK - ASSEMBLY (INC. 2-4)
-
22604-958 ...KNOB, DAMPING ADJUSTER...KNOB, DAMPING ADJUSTER
-
32604-960 ...SPRING...SPRING
-
41604-315 ...BALL, ADJUSTER...BALL, ADJUSTER
-
51604-664 BEARINGBEARING
-
63604-147 RING, RETAININGRING, RETAINING
-
72604-955 SHAFT, SHOCKSHAFT, SHOCK
-
82604-954 ROD, DAMPING ADJUSTER - ASSEMBLYROD, DAMPING ADJUSTER - ASSEMBLY
-
93604-177 KIT, REBUILD - SHOCK (INC. 10-15)KIT, REBUILD - SHOCK (INC. 10-15)
-
102604-530 ...SCREW, MACHINE (INC. ONE NO. 11)...SCREW, MACHINE (INC. ONE NO. 11)
-
111604-425 ......O-RING......O-RING
-
122604-956 ...BEARING - ASSEMBLY (INC. ONE NO. 13)...BEARING - ASSEMBLY (INC. ONE NO. 13)
-
130603-671 ......O-RING......O-RING
-
141603-235 ...STRAP, PISTON...STRAP, PISTON
-
152604-448 ...NUT...NUT
-
162604-953 NEEDLE, DAMPING W/O-RINGNEEDLE, DAMPING W/O-RING
-
172604-449 WASHER, TOP OUTWASHER, TOP OUT
-
182604-479 VALVE, SHOCK 0.950 X 0.008 IN.VALVE, SHOCK 0.950 X 0.008 IN.
-
192604-492 VALVE, SHOCK 1.350 X 0.010 IN.VALVE, SHOCK 1.350 X 0.010 IN.
-
202604-497 VALVE, SHOCK 1.425 X 0.010 IN.VALVE, SHOCK 1.425 X 0.010 IN.
-
212604-503 VALVE, SHOCK 1.600 X 0.012 IN.VALVE, SHOCK 1.600 X 0.012 IN.
-
222604-502 VALVE, SHOCK 1.600 X 0.010 IN.VALVE, SHOCK 1.600 X 0.010 IN.
-
232604-480 VALVE, SHOCK 0.950 X 0.010 IN.VALVE, SHOCK 0.950 X 0.010 IN.
-
242604-501 VALVE, SHOCK 1.600 X 0.008 IN.VALVE, SHOCK 1.600 X 0.008 IN.
-
252604-673 PISTON, DAMPINGPISTON, DAMPING
-
263604-149 VALVE, SHOCK 1.100 X 0.004 IN.VALVE, SHOCK 1.100 X 0.004 IN.
-
272604-499 VALVE, SHOCK 1.425 X 0.015 IN.VALVE, SHOCK 1.425 X 0.015 IN.
-
283604-159 PLATE, TOP OUTPLATE, TOP OUT
-
293604-184 WASHER, BACKUPWASHER, BACKUP
-
303604-423 VALVE, CHECK - ASSEMBLYVALVE, CHECK - ASSEMBLY
-
313604-514 BODY, SHOCKBODY, SHOCK
-
323604-518 SPACER, SHOCK/RESERVOIRSPACER, SHOCK/RESERVOIR
-
332604-208 ADAPTER, FITTINGADAPTER, FITTING
-
343604-521 FITTINGFITTING
-
353604-520 FITTING, ELBOWFITTING, ELBOW
-
362604-889 DECAL, SHOCKDECAL, SHOCK
-
372603-525 END CAP, RESERVOIR (INC. ONE NO. 13 AND 38-39)END CAP, RESERVOIR (INC. ONE NO. 13 AND 38-39)
-
380703-341 ...VALVE, PRESSURE - FAV2 (INC. 39)...VALVE, PRESSURE - FAV2 (INC. 39)
-
391604-318 ......O-RING......O-RING
-
400624-097 SCREW, VALVESCREW, VALVE
-
410604-992 RING, RETAININGRING, RETAINING
-
423604-539 KIT, REBUILD - RESERVOIR (INC. ONE NO. 11, 13, 14, AND 43-45)KIT, REBUILD - RESERVOIR (INC. ONE NO. 11, 13, 14, AND 43-45)
-
431604-316 ...SCREW, RELIEF (INC. ONE NO. 11)...SCREW, RELIEF (INC. ONE NO. 11)
-
442603-504 ...O-RING...O-RING
-
452603-502 ...O-RING...O-RING
-
462604-969 PISTON, INTERNAL FLOATING - ASSEMBLYPISTON, INTERNAL FLOATING - ASSEMBLY
-
472603-515 RESERVOIRRESERVOIR
-
483604-516 HOUSING, DAMPING ADJUSTERHOUSING, DAMPING ADJUSTER
-
493604-519 CLAMP, RESERVOIRCLAMP, RESERVOIR
-
503604-187 PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 51-53)PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 51-53)
-
510603-331 ...VALVE, SHOCK 0.700 X 0.008 IN....VALVE, SHOCK 0.700 X 0.008 IN.
-
522603-501 ...VALVE, SHOCK 0.700 X 0.010 IN....VALVE, SHOCK 0.700 X 0.010 IN.
-
533604-165 ...PLATE, BACKUP...PLATE, BACKUP
-
542603-527 CARTRIDGE, DAMPING ADJUSTER (INC. 45)CARTRIDGE, DAMPING ADJUSTER (INC. 45)
-
555639-240 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
