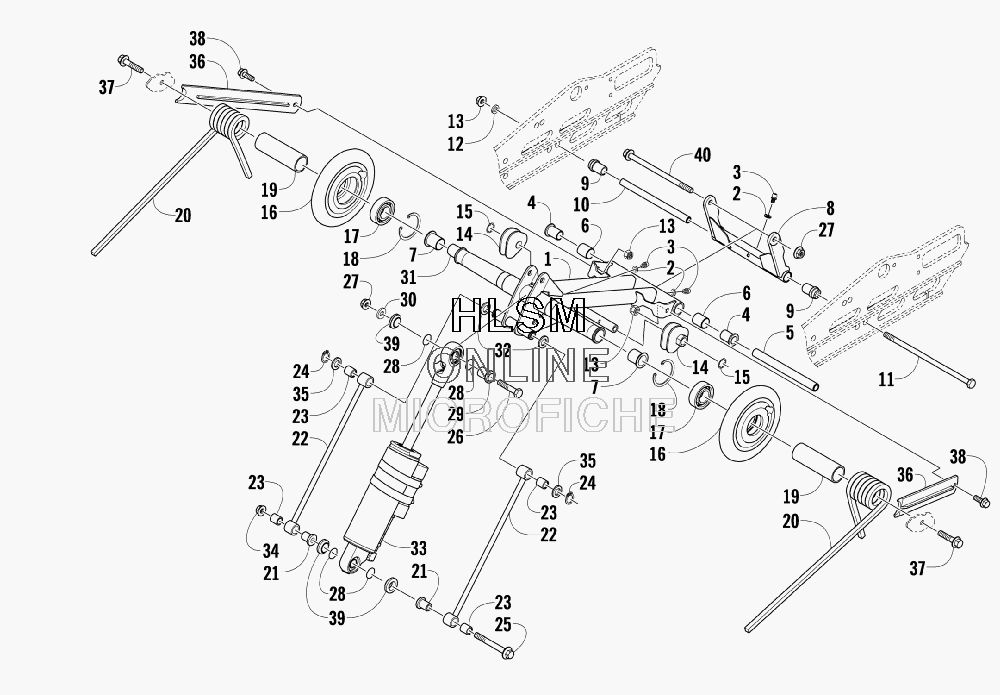

REAR SUSPENSION - REAR ARM ASSEMBLY для Arctic Cat 600 SNO PRO INTERNATIONAL - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    1704-706 ARM, IDLER (INC. TWO NO. 2-3 AND 4-7)
    ARM, IDLER (INC. TWO NO. 2-3 AND 4-7)
  • 2
    1623-011 ...WASHER
    ...WASHER
  • 3
    1623-010 ...FITTING, GREASE
    ...FITTING, GREASE
  • 4
    3604-222 ...BUSHING, FLARED
    ...BUSHING, FLARED
  • 5
    3604-226 ...AXLE
    ...AXLE
  • 6
    2603-481 ...BEARING
    ...BEARING
  • 7
    3604-223 ...BEARING
    ...BEARING
  • 8
    1704-368 ARM, REAR (INC. ONE NO. 2-3)
    ARM, REAR (INC. ONE NO. 2-3)
  • 9
    1604-307 AXLE, SERRATED
    AXLE, SERRATED
  • 10
    2604-665 TUBE, AXLE
    TUBE, AXLE
  • 11
    1623-037 SCREW, CAP
    SCREW, CAP
  • 12
    8051-277 WASHER, LOCK
    WASHER, LOCK
  • 13
    8040-486 NUT, LOCK
    NUT, LOCK
  • 14
    1604-204 BLOCK, SPRING ADJUSTER - RIGHT
    BLOCK, SPRING ADJUSTER - RIGHT
  • 14
    1604-205 BLOCK, SPRING ADJUSTER - LEFT
    BLOCK, SPRING ADJUSTER - LEFT
  • 15
    0623-138 RING, RETAINING
    RING, RETAINING
  • 16
    3604-230 WHEEL, IDLER (INC. 17-18)
    WHEEL, IDLER (INC. 17-18)
  • 17
    3604-257 ...BEARING
    ...BEARING
  • 18
    3604-256 ...RING, RETAINING
    ...RING, RETAINING
  • 19
    3604-414 SLEEVE, SPRING
    SLEEVE, SPRING
  • 20
    1704-382 SPRING, SUSPENSION - RIGHT - LIGHT
    SPRING, SUSPENSION - RIGHT - LIGHT
  • 20
    1704-383 SPRING, SUSPENSION - LEFT - LIGHT
    SPRING, SUSPENSION - LEFT - LIGHT
  • 20
    1704-384 SPRING, SUSPENSION - RIGHT - HEAVY (OPTIONAL)
    SPRING, SUSPENSION - RIGHT - HEAVY (OPTIONAL)
  • 20
    1704-385 SPRING, SUSPENSION - LEFT - HEAVY (OPTIONAL)
    SPRING, SUSPENSION - LEFT - HEAVY (OPTIONAL)
  • 21
    3604-209 AXLE, LINK - FLANGED
    AXLE, LINK - FLANGED
  • 22
    1704-377 LINK, REAR SHOCK (INC. 23)
    LINK, REAR SHOCK (INC. 23)
  • 23
    0603-083 ...BEARING
    ...BEARING
  • 24
    0623-237 SNAP RING
    SNAP RING
  • 25
    8026-414 SCREW, CAP
    SCREW, CAP
  • 26
    1623-120 SCREW, CAP
    SCREW, CAP
  • 27
    8047-486 NUT, LOCK
    NUT, LOCK
  • 28
    2604-698 O-RING
    O-RING
  • 29
    3604-127 SPACER
    SPACER
  • 30
    0623-664 WASHER
    WASHER
  • 31
    3604-388 AXLE, INNER CARRIAGE
    AXLE, INNER CARRIAGE
  • 32
    1623-384 WASHER, URETHANE
    WASHER, URETHANE
  • 33
    1704-839 SHOCK ABSORBER
    SHOCK ABSORBER
  • 34
    8047-610 NUT, LOCK
    NUT, LOCK
  • 35
    1623-389 WASHER
    WASHER
  • 36
    3604-408 BRACE, SUPPORT
    BRACE, SUPPORT
  • 37
    8020-225 SCREW, CAP
    SCREW, CAP
  • 38
    8020-222 SCREW, CAP
    SCREW, CAP
  • 39
    3604-210 SPACER
    SPACER
  • 40
    1623-674 SCREW, CAP
    SCREW, CAP
