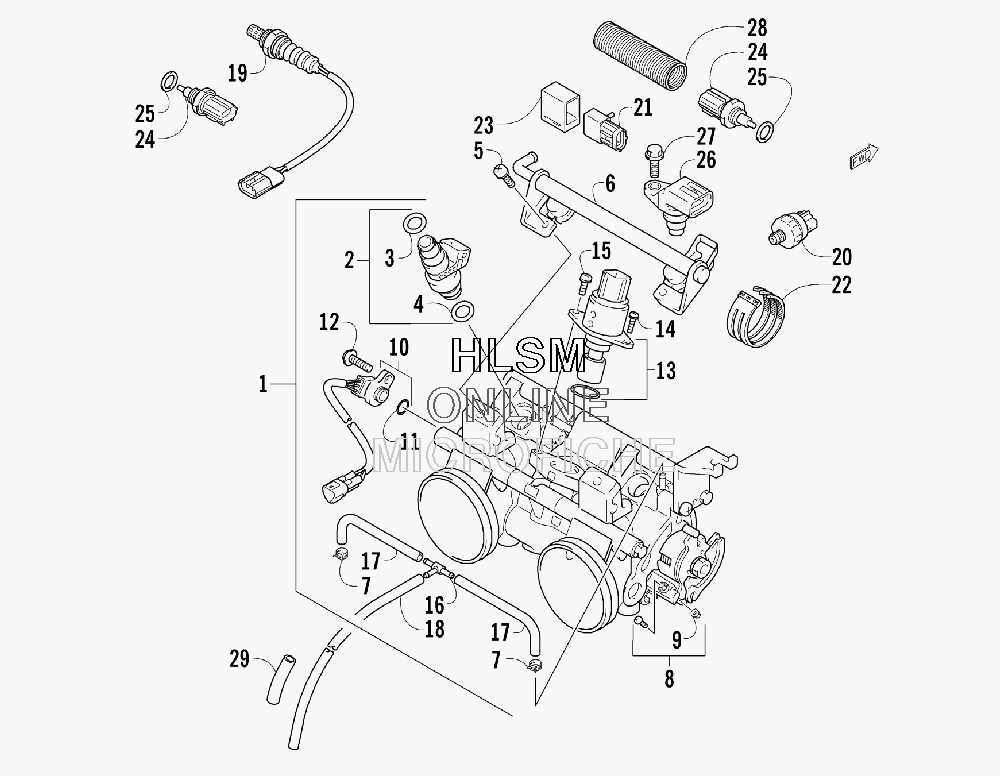

THROTTLE BODY ASSEMBLY для Arctic Cat TZ1 TOURING LXR - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3007-193 BODY, THROTTLE - ASSEMBLY (INC. 2-18)
    BODY, THROTTLE - ASSEMBLY (INC. 2-18)
  • 2
    3007-194 ...INJECTOR, FUEL - ASSEMBLY (INC. 3-4)
    ...INJECTOR, FUEL - ASSEMBLY (INC. 3-4)
  • 3
    3007-195 ......O-RING
    ......O-RING
  • 4
    3007-196 ......O-RING
    ......O-RING
  • 5
    3007-197 ...SCREW
    ...SCREW
  • 6
    3007-198 ...RAIL, FUEL
    ...RAIL, FUEL
  • 7
    3007-199 ...CLIP
    ...CLIP
  • 8
    3007-200 ...SCREW, STOP (INC. 9)
    ...SCREW, STOP (INC. 9)
  • 9
    3007-201 ......NUT
    ......NUT
  • 10
    3007-202 ...SENSOR, THROTTLE - ASSEMBLY (INC. 11)
    ...SENSOR, THROTTLE - ASSEMBLY (INC. 11)
  • 11
    3007-203 ......O-RING
    ......O-RING
  • 12
    3007-204 ...SCREW, TORX-HEAD
    ...SCREW, TORX-HEAD
  • 13
    3007-205 ...VALVE, ISC - KIT
    ...VALVE, ISC - KIT
  • 14
    3007-206 ...SCREW
    ...SCREW
  • 15
    3007-207 ...SCREW
    ...SCREW
  • 16
    3007-208 ...JOINT
    ...JOINT
  • 17
    3007-209 ...PIPE, RUBBER
    ...PIPE, RUBBER
  • 18
    3007-210 ...PIPE, RUBBER
    ...PIPE, RUBBER
  • 19
    3006-588 SENSOR, OXYGEN
    SENSOR, OXYGEN
  • 20
    3006-844 SWITCH, OIL PRESSURE
    SWITCH, OIL PRESSURE
  • 21
    3007-517 SENSOR, BOOST/AIR PRESSURE
    SENSOR, BOOST/AIR PRESSURE
  • 22
    0623-540 CABLE TIE - TRIPLE
    CABLE TIE - TRIPLE
  • 23
    3007-213 COVER
    COVER
  • 24
    3007-214 SENSOR, AIR/WATER TEMPERATURE
    SENSOR, AIR/WATER TEMPERATURE
  • 25
    3530-047 GASKET, TEMPERATURE SENSOR
    GASKET, TEMPERATURE SENSOR
  • 26
    3007-216 SENSOR, CAM POSITION
    SENSOR, CAM POSITION
  • 27
    3007-392 BOLT, CAM POSITION SENSOR
    BOLT, CAM POSITION SENSOR
  • 28
    3007-218 PROTECTOR, CAM POSITION SENSOR
    PROTECTOR, CAM POSITION SENSOR
  • 29
    0619-776 CONDUIT - 5 FT - BOOST/AIR PRESSURE SENSOR
    CONDUIT - 5 FT - BOOST/AIR PRESSURE SENSOR
