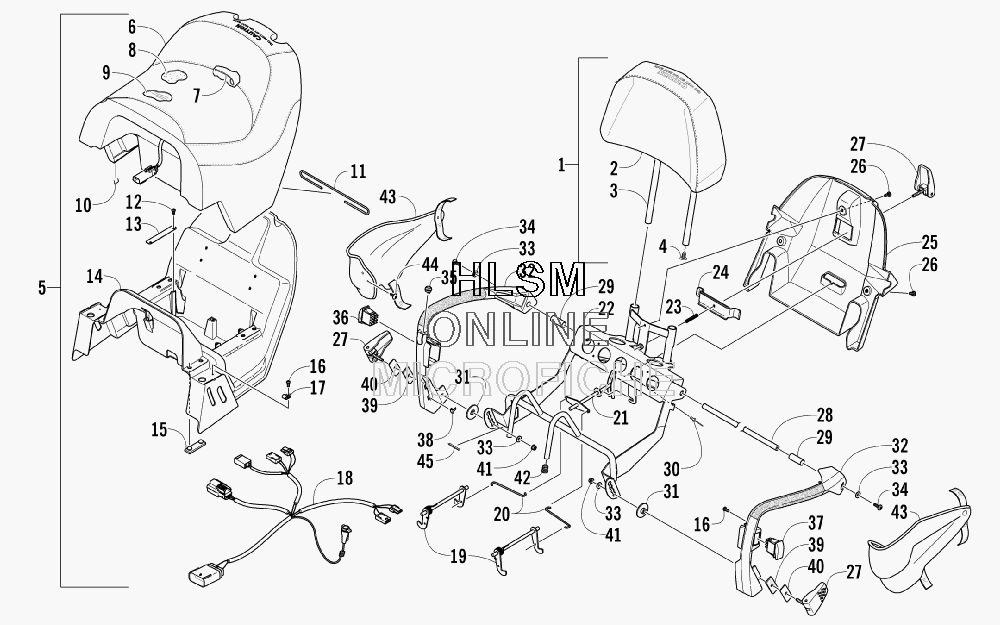

PASSENGER SEAT AND BACKREST ASSEMBLY для Arctic Cat TZ1 TOURING LXR - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3706-972 BACKREST - COMPLETE (INC. 2-4)
    BACKREST - COMPLETE (INC. 2-4)
  • 2
    3706-971 ...COVER, BACKREST
    ...COVER, BACKREST
  • 3
    5606-082 ...BACKREST
    ...BACKREST
  • 4
    1623-732 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 5
    4706-155 SEAT, PASSENGER - ASSEMBLY (INC. 6-45)
    SEAT, PASSENGER - ASSEMBLY (INC. 6-45)
  • 6
    3706-974 ...COVER, PASSENGER SEAT (INC. 7)
    ...COVER, PASSENGER SEAT (INC. 7)
  • 7
    5606-378 ......WIRE, SEAT
    ......WIRE, SEAT
  • 8
    3706-738 ...FOAM, SEAT
    ...FOAM, SEAT
  • 9
    0609-837 ...PAD, SEAT HEATER
    ...PAD, SEAT HEATER
  • 10
    0624-528 ...STAPLE
    ...STAPLE
  • 11
    5606-380 ...WIRE, SEAT
    ...WIRE, SEAT
  • 12
    0623-727 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 13
    5606-178 ...RETAINER, SEAT LATCH
    ...RETAINER, SEAT LATCH
  • 14
    4606-290 ...BASE, PASSENGER SEAT
    ...BASE, PASSENGER SEAT
  • 15
    0406-879 ...BUMPER, SEAT
    ...BUMPER, SEAT
  • 16
    1623-707 ...SCREW
    ...SCREW
  • 17
    1623-479 ...CLAMP, CABLE
    ...CLAMP, CABLE
  • 18
    1686-451 ...HARNESS, PASSENGER SEAT
    ...HARNESS, PASSENGER SEAT
  • 19
    4706-194 ...ROD, LATCH W/SPRING - RIGHT
    ...ROD, LATCH W/SPRING - RIGHT
  • 19
    4706-195 ...ROD, LATCH W/SPRING - LEFT
    ...ROD, LATCH W/SPRING - LEFT
  • 20
    5606-204 ...ROD, CROSS
    ...ROD, CROSS
  • 21
    4706-090 ...ROD, HANDLE
    ...ROD, HANDLE
  • 22
    3706-808 ...FRAME, SEAT - PASSENGER
    ...FRAME, SEAT - PASSENGER
  • 23
    5606-095 ...SPRING, ADJUSTMENT
    ...SPRING, ADJUSTMENT
  • 24
    3706-806 ...PLATE, CLAMP - BACKREST
    ...PLATE, CLAMP - BACKREST
  • 25
    4606-291 ...PANEL, SEAT-BASE - PASSENGER SEAT
    ...PANEL, SEAT-BASE - PASSENGER SEAT
  • 26
    0423-396 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 27
    5606-086 ...LEVER, HANDHOLD
    ...LEVER, HANDHOLD
  • 28
    5606-020 ...ROD, PIVOT - HANDLE
    ...ROD, PIVOT - HANDLE
  • 29
    5606-018 ...SPACER, PIVOT - HANDLE
    ...SPACER, PIVOT - HANDLE
  • 30
    0623-853 ...RIVET
    ...RIVET
  • 31
    3706-800 ...SPACER, LATCH
    ...SPACER, LATCH
  • 32
    5606-084 ...HANDHOLD - RIGHT
    ...HANDHOLD - RIGHT
  • 32
    5606-085 ...HANDHOLD - LEFT
    ...HANDHOLD - LEFT
  • 33
    8050-217 ...WASHER, FLAT
    ...WASHER, FLAT
  • 34
    8477-616 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 35
    0609-834 ...SWITCH, PUSH-TO-TALK
    ...SWITCH, PUSH-TO-TALK
  • 36
    0609-835 ...SWITCH, HANDWARMER - PASSENGER SEAT
    ...SWITCH, HANDWARMER - PASSENGER SEAT
  • 37
    0609-836 ...SWITCH, SEAT HEATER
    ...SWITCH, SEAT HEATER
  • 38
    1623-703 ...CLIP, SPEED
    ...CLIP, SPEED
  • 39
    1623-735 ...WASHER, FRICTION
    ...WASHER, FRICTION
  • 40
    1623-734 ...WASHER
    ...WASHER
  • 41
    8040-396 ...NUT, LOCK
    ...NUT, LOCK
  • 42
    1623-697 ...PLUG
    ...PLUG
  • 43
    5606-212 ...WINDGUARD - RIGHT
    ...WINDGUARD - RIGHT
  • 43
    5606-213 ...WINDGUARD - LEFT
    ...WINDGUARD - LEFT
  • 44
    1623-129 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 45
    0706-371 ...TRIM
    ...TRIM
