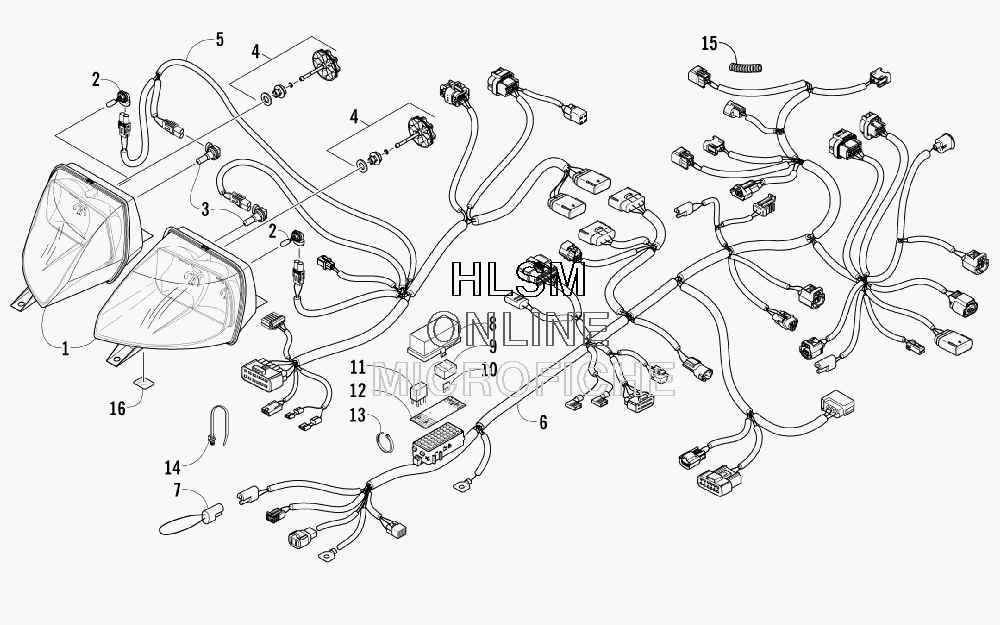

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat TZ1 TOURING LXR - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0609-808 LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 2-4)
    LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 2-4)
  • 1
    0609-809 LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 2-4)
    LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 2-4)
  • 2
    0609-783 ...BULB, HEADLIGHT - LOW BEAM
    ...BULB, HEADLIGHT - LOW BEAM
  • 3
    0609-782 ...BULB, HEADLIGHT - HIGH BEAM
    ...BULB, HEADLIGHT - HIGH BEAM
  • 4
    0609-779 ...ADJUSTER, HEADLIGHT - ASSEMBLY
    ...ADJUSTER, HEADLIGHT - ASSEMBLY
  • 5
    1686-448 HARNESS, CONSOLE
    HARNESS, CONSOLE
  • 6
    1686-445 HARNESS, MAIN (INC. 7-12 AND TWO NO. 13)
    HARNESS, MAIN (INC. 7-12 AND TWO NO. 13)
  • 7
    0486-164 ...TETHER, ACCESSORY CONNECTOR
    ...TETHER, ACCESSORY CONNECTOR
  • 8
    0530-008 ...COVER, FUSE BLOCK
    ...COVER, FUSE BLOCK
  • 9
    0430-037 ...HOLDER, FUSE
    ...HOLDER, FUSE
  • 10
    0430-031 ...FUSE - 15 AMP
    ...FUSE - 15 AMP
  • 10
    0430-030 ...FUSE - 30 AMP
    ...FUSE - 30 AMP
  • 11
    0430-033 ...RELAY
    ...RELAY
  • 12
    8611-240 ...DECAL, FUSE BLOCK
    ...DECAL, FUSE BLOCK
  • 13
    0123-788 ...CABLE TIE - 7.5 IN.
    ...CABLE TIE - 7.5 IN.
  • 14
    0623-677 CABLE TIE, PUSH-MOUNT
    CABLE TIE, PUSH-MOUNT
  • 15
    0619-776 CONDUIT - 5 FT
    CONDUIT - 5 FT
  • 16
    2606-007 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
