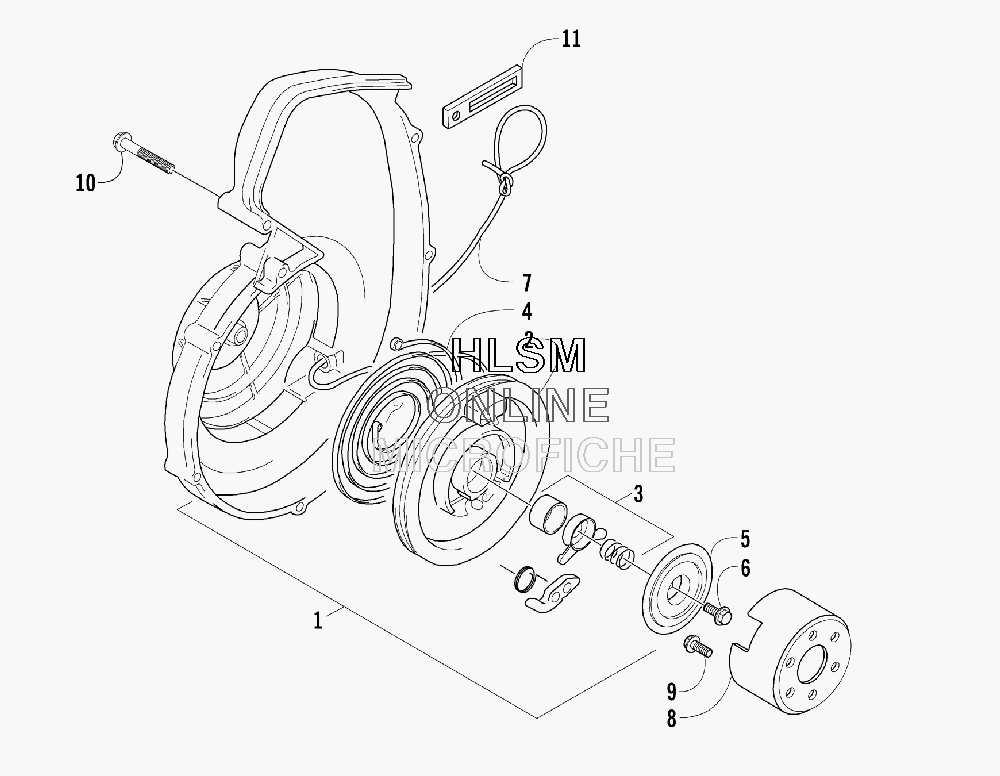

RECOIL STARTER для Arctic Cat T570 - 2008 года выпуска`
-
№АртикулНазвание
-
13007-576 STARTER ASSEMBLY (INC. 2-6)STARTER ASSEMBLY (INC. 2-6)
-
23006-090 ...ROLLER, STARTER...ROLLER, STARTER
-
33006-091 ...RATCHET SET...RATCHET SET
-
43007-487 ...SPRING...SPRING
-
53006-092 ...PLATE, FRICTION...PLATE, FRICTION
-
63006-093 ...BOLT...BOLT
-
73006-889 ROPE, STARTERROPE, STARTER
-
83006-020 PULLEY, STARTERPULLEY, STARTER
-
93006-463 BOLTBOLT
-
103007-488 BOLTBOLT
-
113002-964 CLAMP, WIRECLAMP, WIRE
