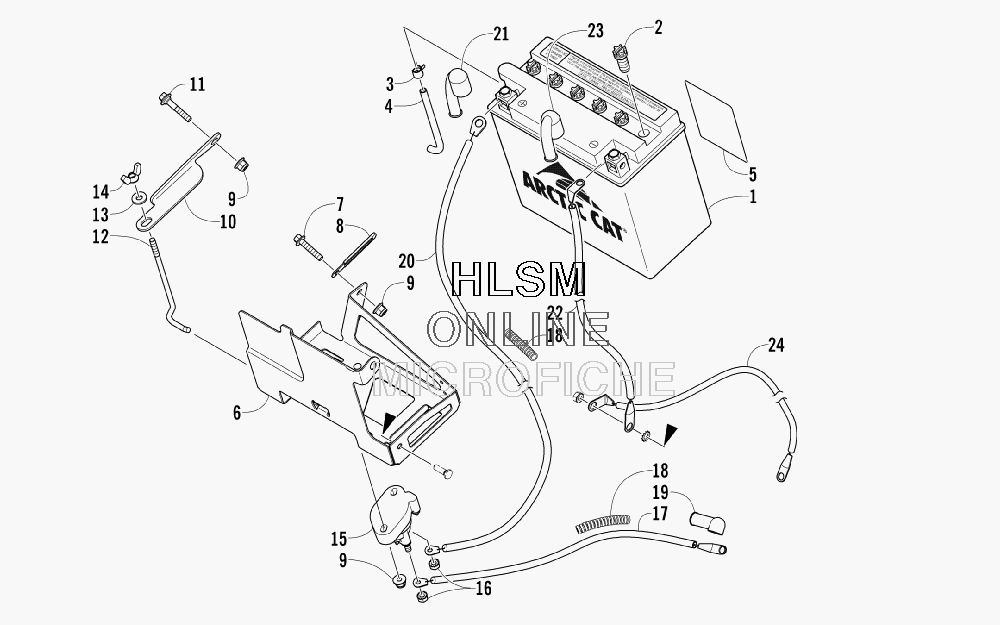

BATTERY AND TRAY ASSEMBLY для Arctic Cat T570 - 2008 года выпуска`
-
№АртикулНазвание
-
10745-047 BATTERY (INC. 2-5)BATTERY (INC. 2-5)
-
20645-045 ...CAP, BATTERY...CAP, BATTERY
-
30645-152 ...CLAMP, HOSE - BATTERY...CLAMP, HOSE - BATTERY
-
40645-263 ...HOSE, BATTERY...HOSE, BATTERY
-
50645-151 ...DECAL, WARNING - BATTERY...DECAL, WARNING - BATTERY
-
60745-315 TRAY, BATTERYTRAY, BATTERY
-
78408-630 SCREW, CAPSCREW, CAP
-
83002-964 CLIP, WIRECLIP, WIRE
-
98427-602 NUT, LOCKNUT, LOCK
-
100745-318 BRACKET, HOLD-DOWN - BATTERYBRACKET, HOLD-DOWN - BATTERY
-
111623-725 SCREW, SHOULDERSCREW, SHOULDER
-
120745-329 ROD, HOLD-DOWN - BATTERYROD, HOLD-DOWN - BATTERY
-
138050-217 WASHERWASHER
-
140423-716 NUT, WINGNUT, WING
-
150445-058 SOLENOID, STARTER RELAYSOLENOID, STARTER RELAY
-
160623-038 NUT W/WASHERNUT W/WASHER
-
170645-557 CABLE, SOLENOID/STARTER (INC. 18-19)CABLE, SOLENOID/STARTER (INC. 18-19)
-
180716-558 ...CONDUIT...CONDUIT
-
190645-581 ...BOOT, TERMINAL...BOOT, TERMINAL
-
200645-554 CABLE, BATTERY/SOLENOID (INC. 18 AND 21)CABLE, BATTERY/SOLENOID (INC. 18 AND 21)
-
210645-521 ...BOOT, TERMINAL - BATTERY...BOOT, TERMINAL - BATTERY
-
220645-553 CABLE, BATTERY/GROUND (INC. 23)CABLE, BATTERY/GROUND (INC. 23)
-
230645-520 ...BOOT, TERMINAL - BATTERY...BOOT, TERMINAL - BATTERY
-
240645-558 CABLE, STARTER-TO-GROUNDCABLE, STARTER-TO-GROUND
